Elite Screens Elite Manual Series User Manual

www.elitescreens.com info@elitescreens.com
*Measurement dimensions are intended as a reference only and subject to change without notice
Note: Data Error ±1"
Unit: Inches

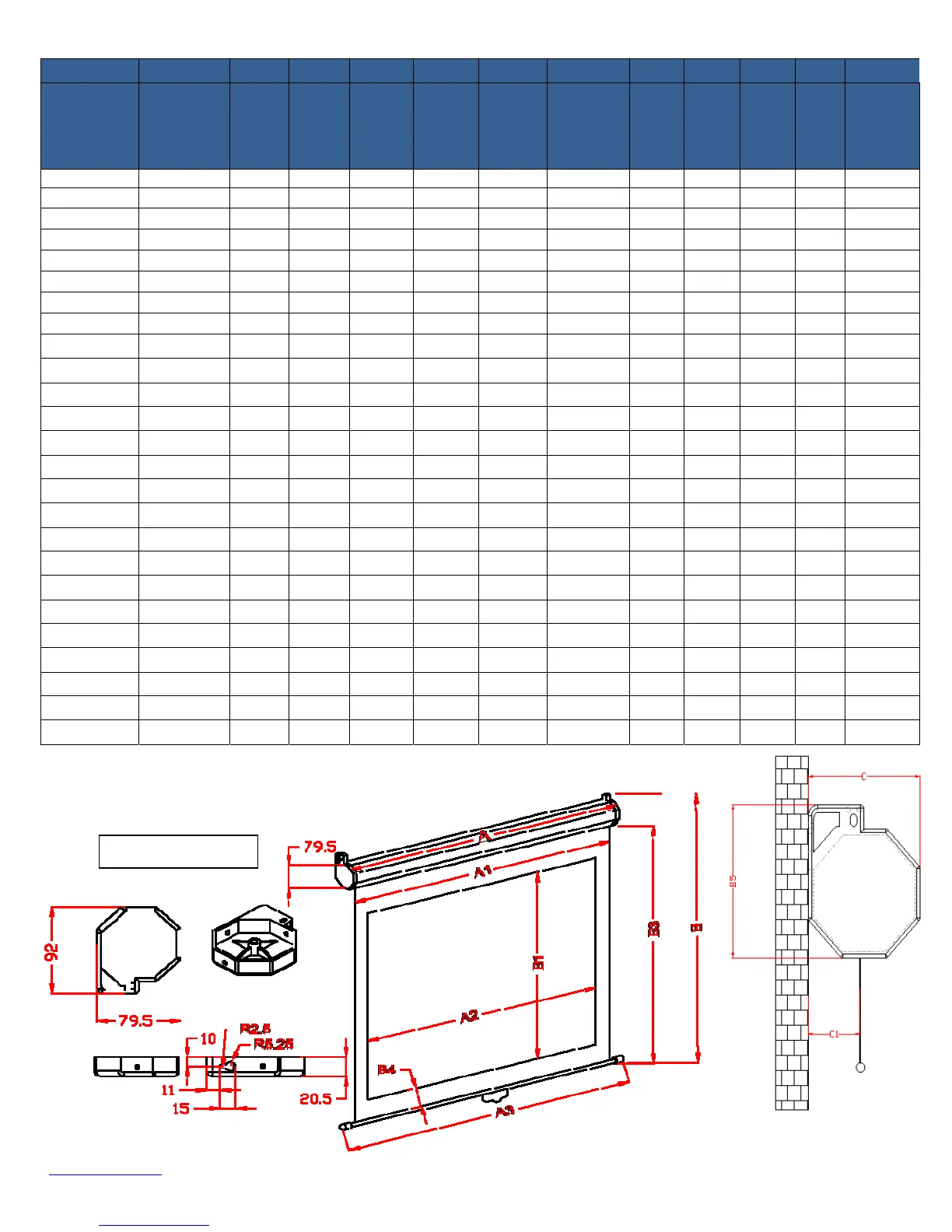

Models
Screen Diag.
& Aspect
Ratio
Case
Length
(A)
Screen
Width
(A1)
View
Width
(A2)
Weight
Bar
Length
(A3)
Bottom
Edge
Distance
(B4)
Screen
Material to
Weight Bar
Height (B3)
View
Height
(B1)
Overall
Height
(B)
End
cap
Height
(B5)
End
cap
Width
(C)
Distance
from
screen
material
to the wall
(C1)
M84H 84" (16:9) 82.1 77.2 73.2 81.9 2.4 48.1 41.2 51.3 3.2 2.7 0.8
M84H-E30 84" (16:9) 82.1 77.2 73.2 81.9 2.4 48.1 41.2 51.3 3.2 2.7 0.8
M92UWH 92" (16:9) 86.5 84.2 80.2 86.3 2.4 52.0 45.1 55.3 3.2 2.7 0.8
M100UWH 100" (16:9) 93.7 91.1 87.2 93.4 2.4 55.9 49.0 59.2 3.2 2.7 0.8
M100H-E24 100" (16:9) 93.7 91.1 87.2 93.4 2.4 55.9 49.0 59.2 3.2 2.7 0.8
M106H 106" (16:9) 98.9 96.4 92.4 98.6 2.4 58.9 52.0 62.5 3.6 3.1 0.8
M120H 120" (16:9) 111.1 108.6 104.6 110.8 2.4 65.7 58.8 69.4 3.6 3.1 0.8
M120H-E24 120" (16:9) 111.1 108.6 104.6 110.8 2.4 65.7 58.8 69.4 3.6 3.1 0.8
M135H 135" (16:9) 125.2 121.7 117.7 123.9 2.4 73.1 66.2 77.2 4.1 3.5 0.8
M150H 150" (16:9) 140.0 134.7 130.7 137.1 2.4 80.5 73.5 84.6 4.1 3.5 0.8
M80V 80" (4:3) 72.4 68.0 64.0 72.1 2.4 54.9 48.0 58.1 3.2 2.7 0.8
M84V 84" (4:3) 76.1 71.2 67.2 75.9 2.4 57.3 50.4 60.6 3.2 2.7 0.8
M100V 100" (4:3) 86.5 84.0 80.0 86.3 2.4 66.9 60.0 70.2 3.2 2.7 0.8
M120V 120" (4:3) 102.5 100.0 96.0 102.2 2.4 78.9 72.0 82.6 3.6 3.1 0.8
M135V 135" (4:3) 115.7 112.0 108.0 114.4 2.4 87.9 81.0 92.0 4.1 3.5 0.8
M150V 150" (4:3) 127.7 124.0 120.0 126.4 2.4 96.9 90.0 101.1 4.1 3.5 0.8
M71S 71"(1:1) 59.8 54.2 50.2 59.6 2.4 57.1 50.2 60.4 3.2 2.7 0.8
M85S 85"(1:1) 69.6 64.1 60.1 69.4 2.4 67.0 60.1 70.3 3.2 2.7 0.8
M99S 99" (1:1) 78.6 74.0 70.0 76.3 2.4 76.9 70.0 80.6 3.6 3.1 0.8
M113S 113" (1:1) 86.5 83.9 79.9 86.3 2.4 86.9 79.9 90.5 3.6 3.1 0.8
M119S 119" (1:1) 92.6 88.0 84.0 92.4 2.4 91.1 84.1 94.7 3.6 3.1 0.8
M136S 136" (1:1) 102.5 100.2 96.2 102.2 2.4 103.1 96.2 106.7 3.6 3.1 0.8
M170S 170" (1:1) 127.7 124.0 120.0 126.4 2.4 126.9 120.0 131.1 4.1 3.5 0.8
M94UWX 94" (16:10) 86.3 82.7 79.7 86.1 2.4 56.7 49.8 60.0 3.2 2.7 0.8
M128UWX 128" (16:10) 114.4 131.0 128.0 114.3 2.4 74.8 67.8 78.4 3.6 3.1 0.8
Unit of measure: mm
