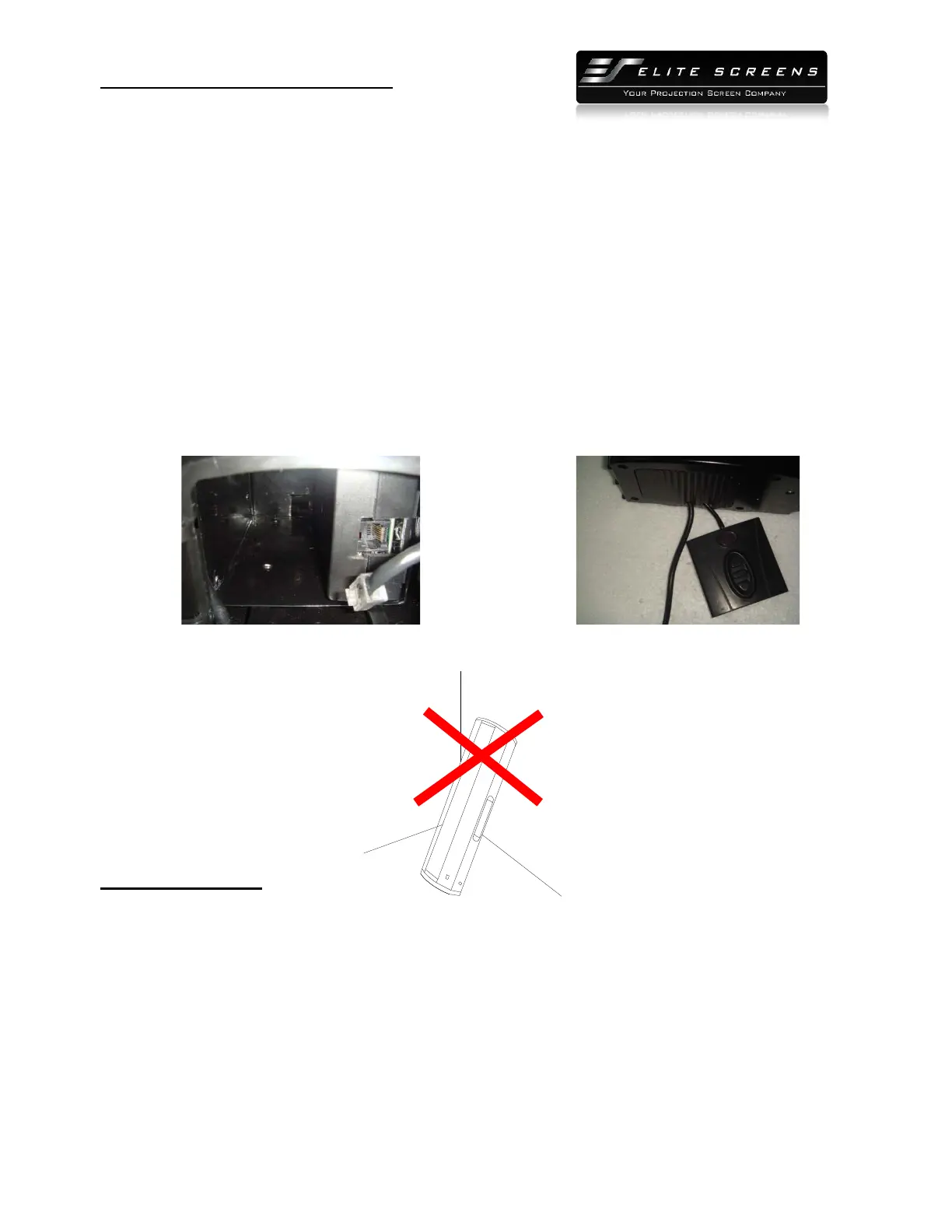

Controlling the Kestrel Series with the optional accessories: Wired 5-12V
trigger, Extended IR “eye” receiver or 3-way wall box switch-
1. Wired 5-12V Trigger: Connect the 5-12 volt trigger cable to your projector’s trigger output via a
separate cable that may or may not be provided by the projector manufacture. The trigger feature will not
work without an output cable from the projector, but it can be tested using a 9-volt battery by simply
connecting the Red (+) and Green (-) cable to the 9-volt battery
2. IR “Eye” Receiver: The IR “eye” receiver cable provides an extension of the IR sensor
should the IR receiver window on the Kestrel’s screen is concealed.
3. 3-way wall switch box: The 3-way wall switch box allows manual control to operate the screen’s
UP/STOP/DOWN commands.
4. The RJ-45 input jack is located on the left side compartment which accepts the 5-12V trigger,
extended IR “eye” receiver or the 3-way wall switch box.
Storing the screen: Always store the screen flat horizontally. Never store the screen in a
vertical position.
Screen Maintenance
1. Always close the screen when not in use
2. Do not touch the screen surface
3. Keep away from direct sun and high/low temperatures
4. For indoor use only
5. Clean with soft water
6. Do not drop/close screen consecutively for more than 3 minutes. This is to avoid overload
protection shut-off. If automatic shut-off occurs, please wait for 20-30 minutes to try again.
