Elite Screens Q100V User Manual

Standard T-Leg Support

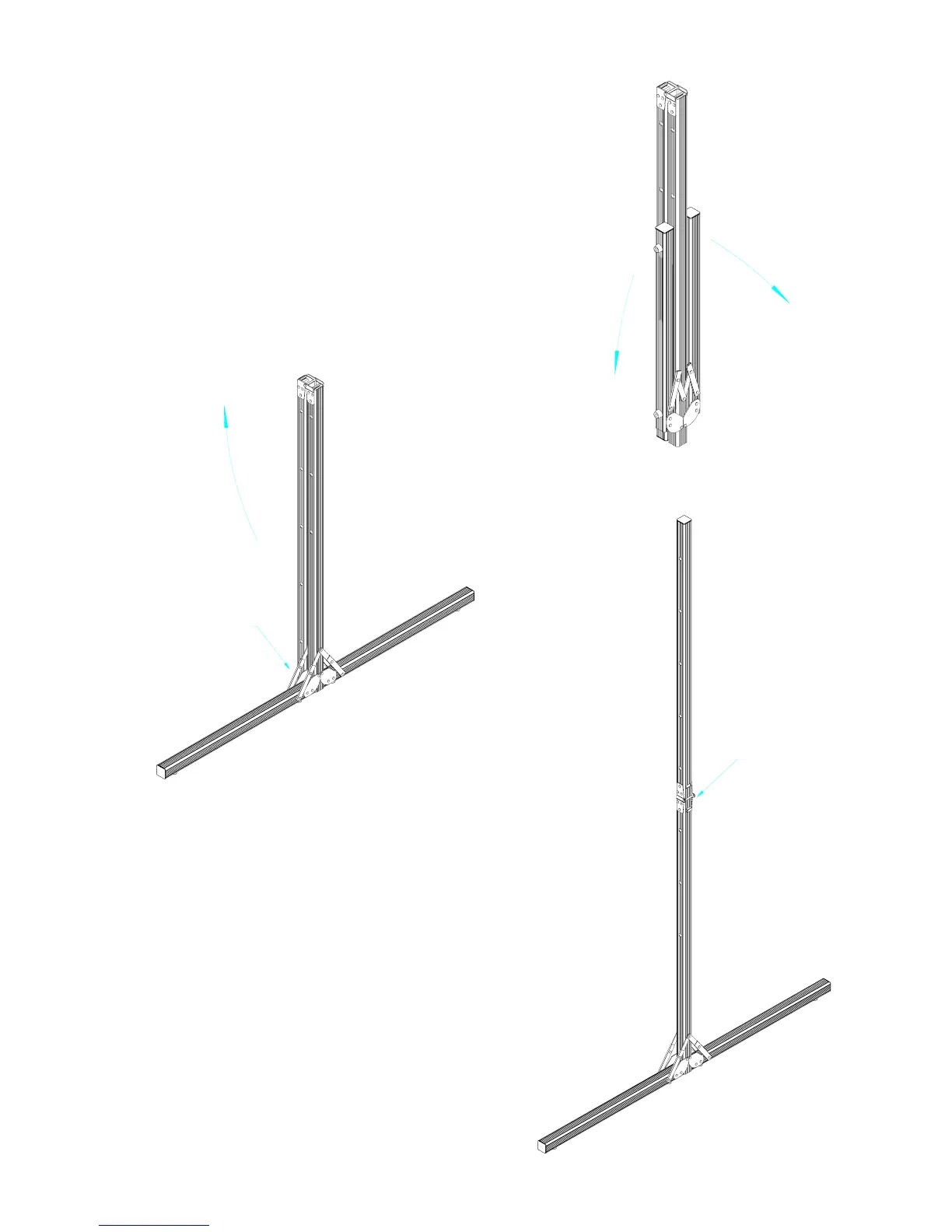

1. Take the T-Leg out of the case and remove its wrappings.
Fold down the support legs as shown in (fig 7).
2. Secure the corner braces into the locked position as shown
in (fig 8)
3. Unfold the T-Leg’s main support until the snap latches
“click” into the locked position as in (fig 9).
fig 7
fig 8
Lock down the corners
fig 9
Snap latch

Elite Screens Q100V Specifications

General

Brand	Elite Screens
Model	Q100V
Category	Projection Screen
Language	English
