Elite Screens Q100V User Manual

locking bolt
frame spacer

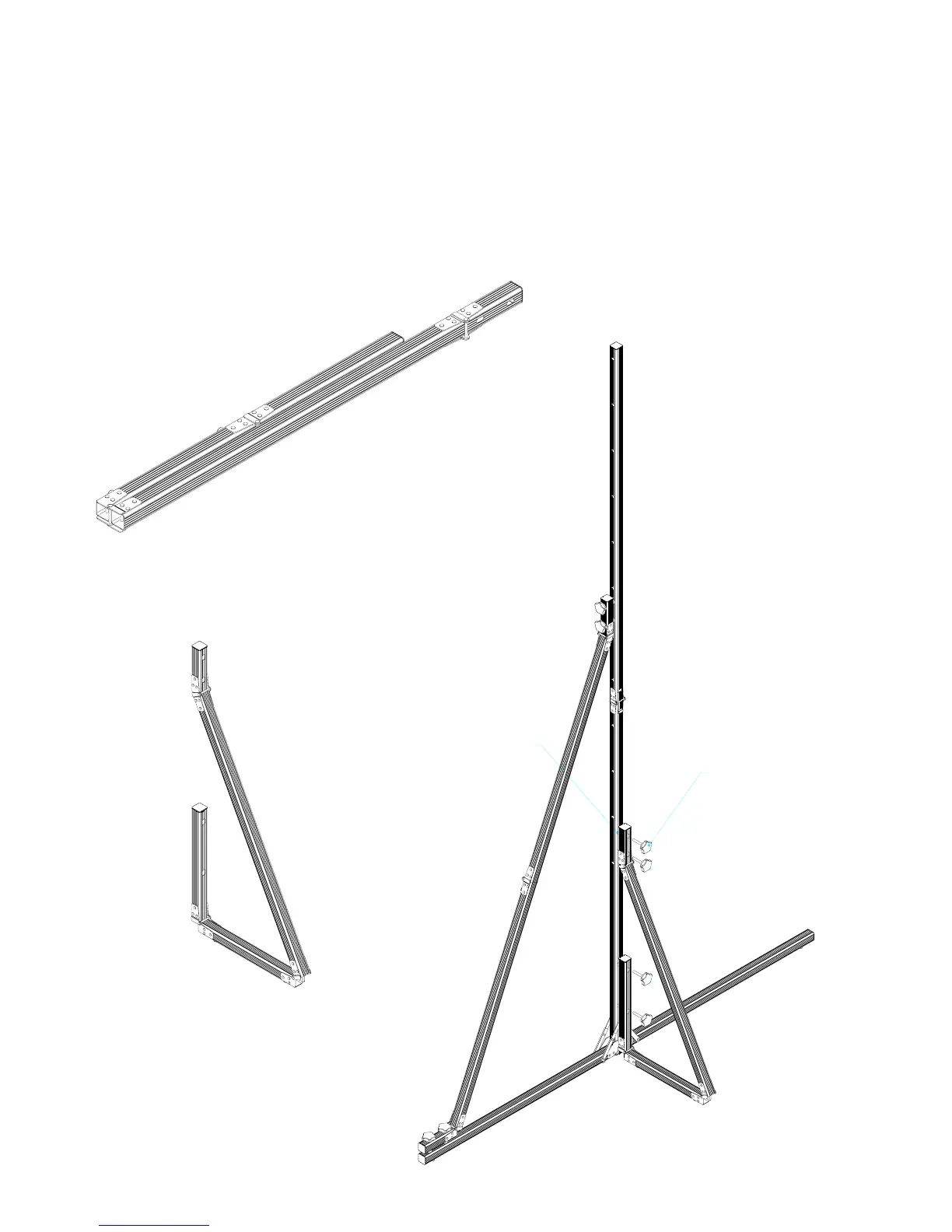

fig 15
fig 13
fig 14
SAT-Leg (optional added stability buttress recommended
for the large screens with diagonal measurements of 180”
and over)
1. Take the SAT-Leg out of the case and remove it wrappings as shown in (fig13).
2. Undo the snap locks to loosen and bend the joints for proper fitting as shown in (fig 14).
3. Attach the SAT-Legs by securing the locking bolts through the frame using the frame spacers between the metal
parts as shown in (fig 15)

Elite Screens Q100V Specifications

General

Brand	Elite Screens
Model	Q100V
Category	Projection Screen
Language	English
