B. Preparing the tripod screen for projection:

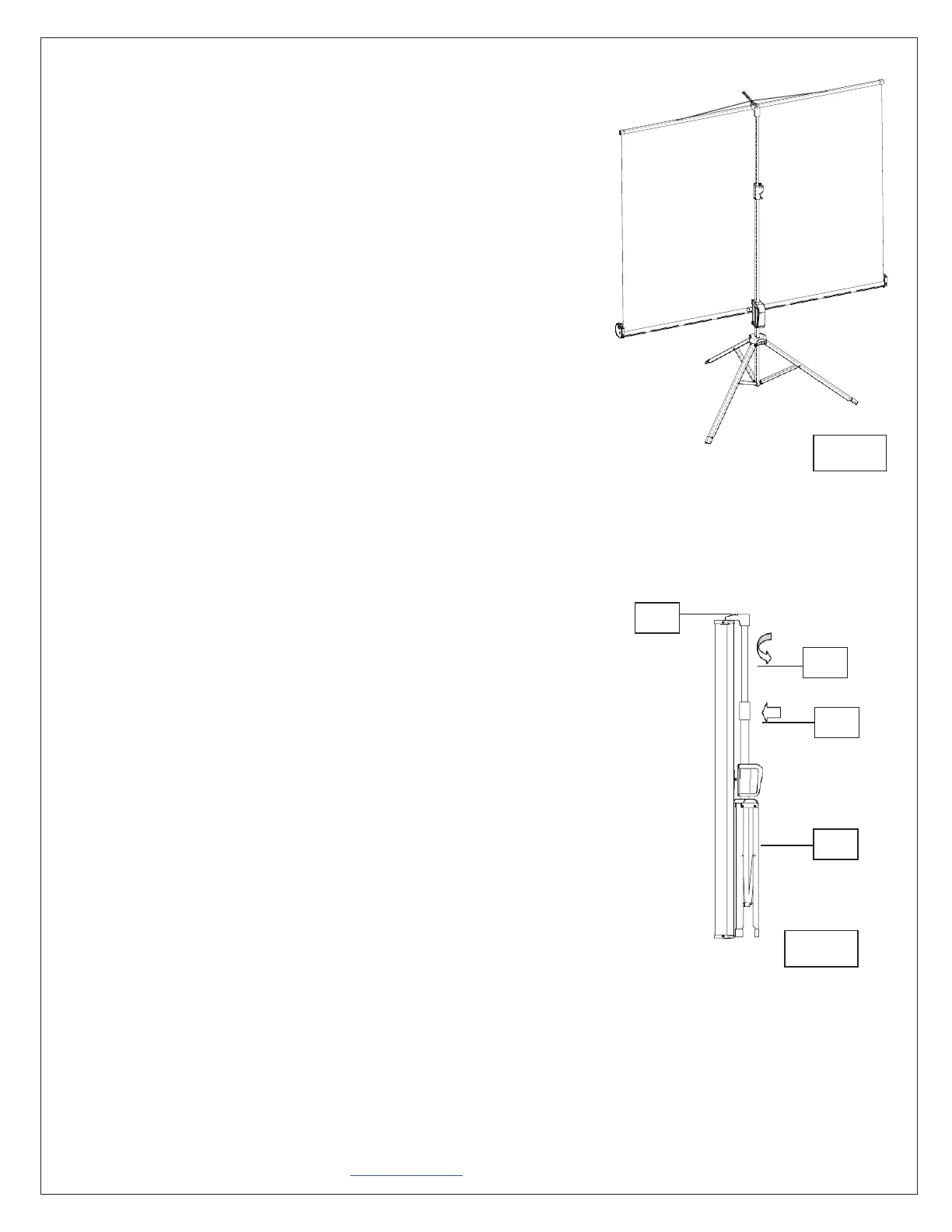

Follow the steps below and Fig. 3.
1. Pull the screen handle up vertically and hook the screen handle on the
Top Hook.
*Note: Use the Keystone Eliminator to prevent “Keystone Effect” from occurring.
Keystone Effect is caused when a projector presents its image at a downward angle
causing a trapezoid-shaped image to appear on the screen. The Keystone
Eliminator is designed to eliminate that effect by sloping the screen forward.
2. Pull out the Locking Adjustment Tab to unlock the current position of
the Vertical Extension Bar and raise it as necessary to the desired height.
Push the locking adjustment tab back in to lock position.
3. Pull the Screen Height Adjustment Lock/Release tab out (to the left)
located just above the Carrying Handle to raise or lower the bottom of the
screen. Once the desired height has been set, push the tab in to lock the
position in place.
C. Disassembling the screen:
Follow the steps below and Fig. 4.
1. Unlock the Adjustment Handle by pulling the locking tab to the left and slowly
slide the handle all the way down to bring down the position of the screen’s case.
2. Hold the Extension Bar and pull out Locking adjustment tab to unlock and release the
position of the extension bar. Once the extension bar has been brought all
the way down, unhook the screen material from the Top Hook and slowly
retract the screen back into the case.
* Note: It is very important to remember to hold the extension bar first and then
unlock the adjustment tab to prevent the extension bar from slamming and causing
injury or damaging the screen.
3. Turn the screen’s case vertically clockwise and insert the Top Hook’s
bottom pin to lock into the screen’s end cap hole.
4. Close the tripod legs by pushing them in.
Note:
• To ensure the screen is stable, extend the tripod’s legs as much as
possible.
• Do not fold the screen or allow any sharp objects to touch the screen’s surface.
• Clean the screen surface often when needed.
• Careful use will extend the lifetime of this product.
For more information, technical support or your local Elite Screens contact,
please visit
www.elitescreens.com
