Elite Screens Yard Master 2 Series User Manual

Rev.071516-MZ www.elitescreens.com 2

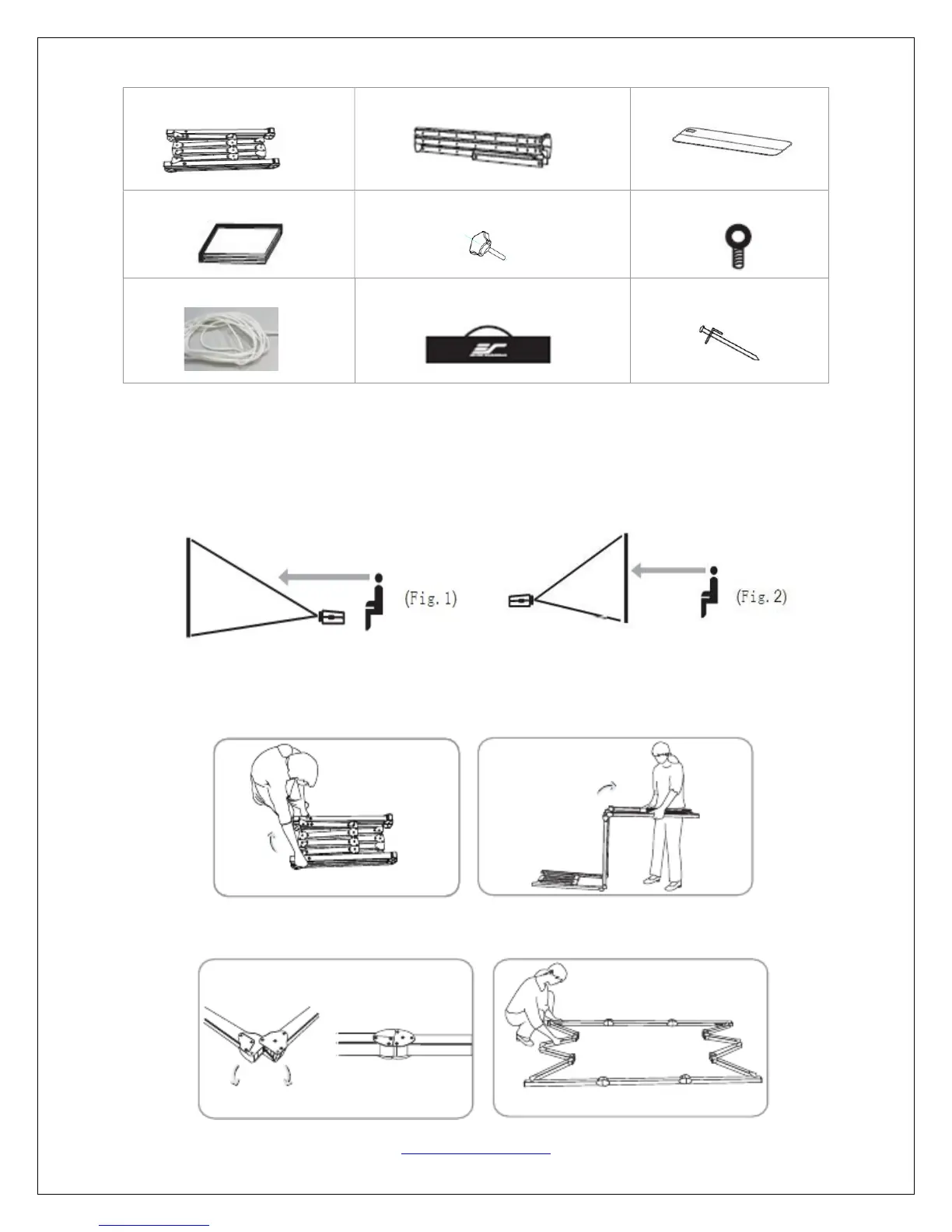

Parts Diagram
A. Folding frame x1 B. Left and right folding legs x2 C. Screen material bag x1
D. Projection screen material x1 E. Knob screw x2 F. Eyebolt x2
G. Rope x2 H. Carrying Bag x1 I. Stake x4
Note: The parts list above is subject to change without notice.
Correct usage of the projection screen will ensure better viewing results.
For front projection, assemble and view the screen as indicated in Fig.1.
For rear projection, assemble and view the screen as indicated in Fig.2.
Frame Assembly and Screen Material Attachment
1. Take the folding frame (A) out of the carrying bag (H) and place it on a flat surface. Unfold the longer
sections first as shown in Fig.3-4.
2. Unfold the frame until the latch on the hinge "clicks" into place. Repeat the procedure for the shorter
sections. (Fig. 5-6)
Fig. 3
Fig. 4
Fig. 5
Fig. 6

Elite Screens Yard Master 2 Series Specifications

General

Brand	Elite Screens
Model	Yard Master 2 Series
Category	Projection Screen
Language	English
