Elite Screens Yard Master Plus Series User Manual

Rev.07032023 wwww.elitescreens.com

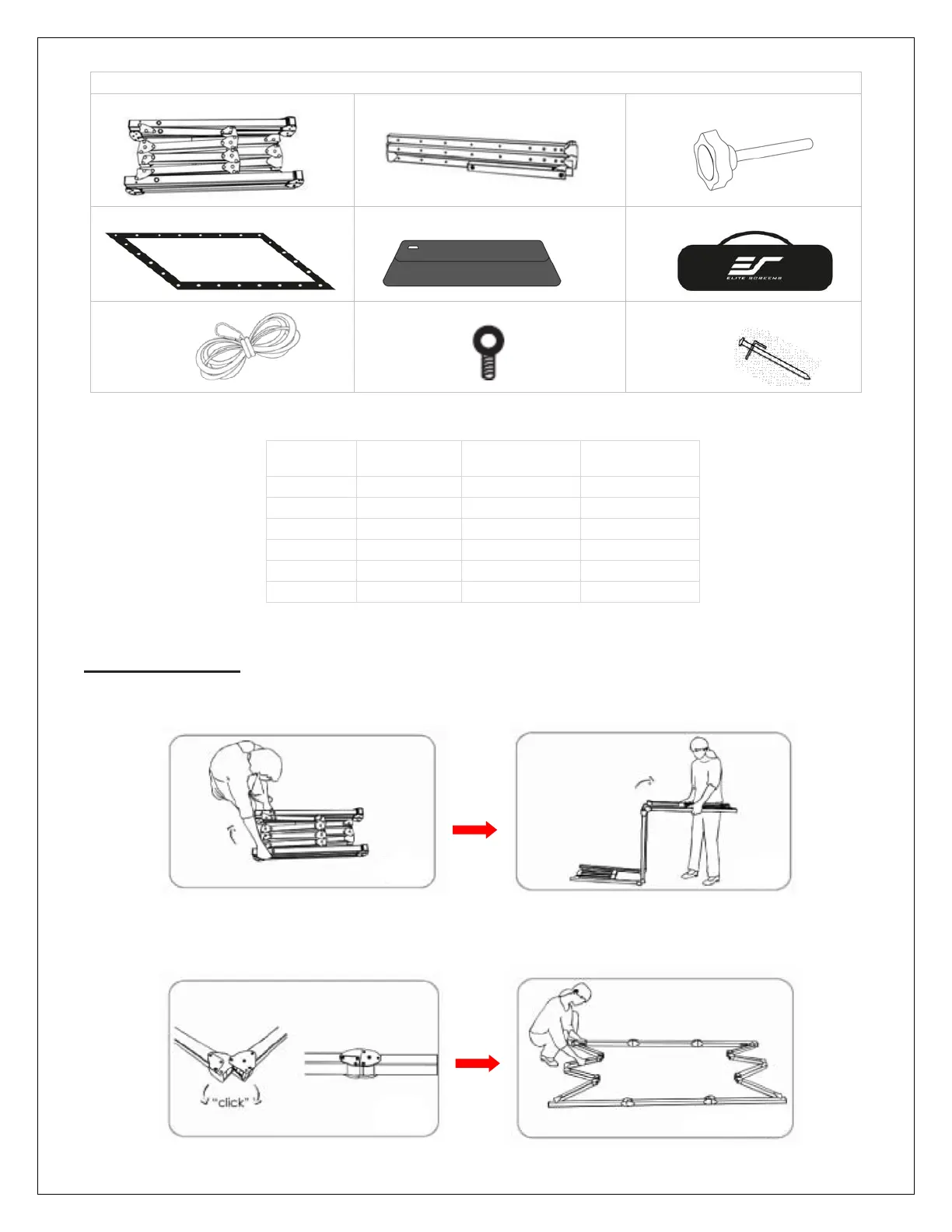

Hardware and Parts List
A. Folding frame x1
B. Left and right folding legs x2
C. Knob Screw (Refer to Chart)
D. Projection screen material x1
E. Screen material bag x1
F. Carrying Bag x1
G. Rope
H. Eyebolt x 2
I. Ground stake x 4
Note: The parts list above is subject to change without notice.
Frame Assembly
1. Take the folding frame (A) out of the carrying bag (F) and place it on a flat surface. Fully unfold the longer
sections first, as shown below.
2. Next, unfold the frame until the latch on the hinge “clicks” into place. Repeat the procedure for the shorter
sections, as shown below.
Models
Knob Screw
Support Leg
Max Height
100” (16:9)
12 pcs
Included
95.5 inches
120” (16:9)
12 pcs
Included
112.2 inches
135” (16:9)
10 pcs
Included
113 inches
145” (16:9)
10 pcs
Included
133.5 inches
180” (16:9)
10 pcs
Included
159.8 inches
200” (16:9)
14 pcs
Included
149.6 inches
