STEP 4: Adjust Tension
06
L
A

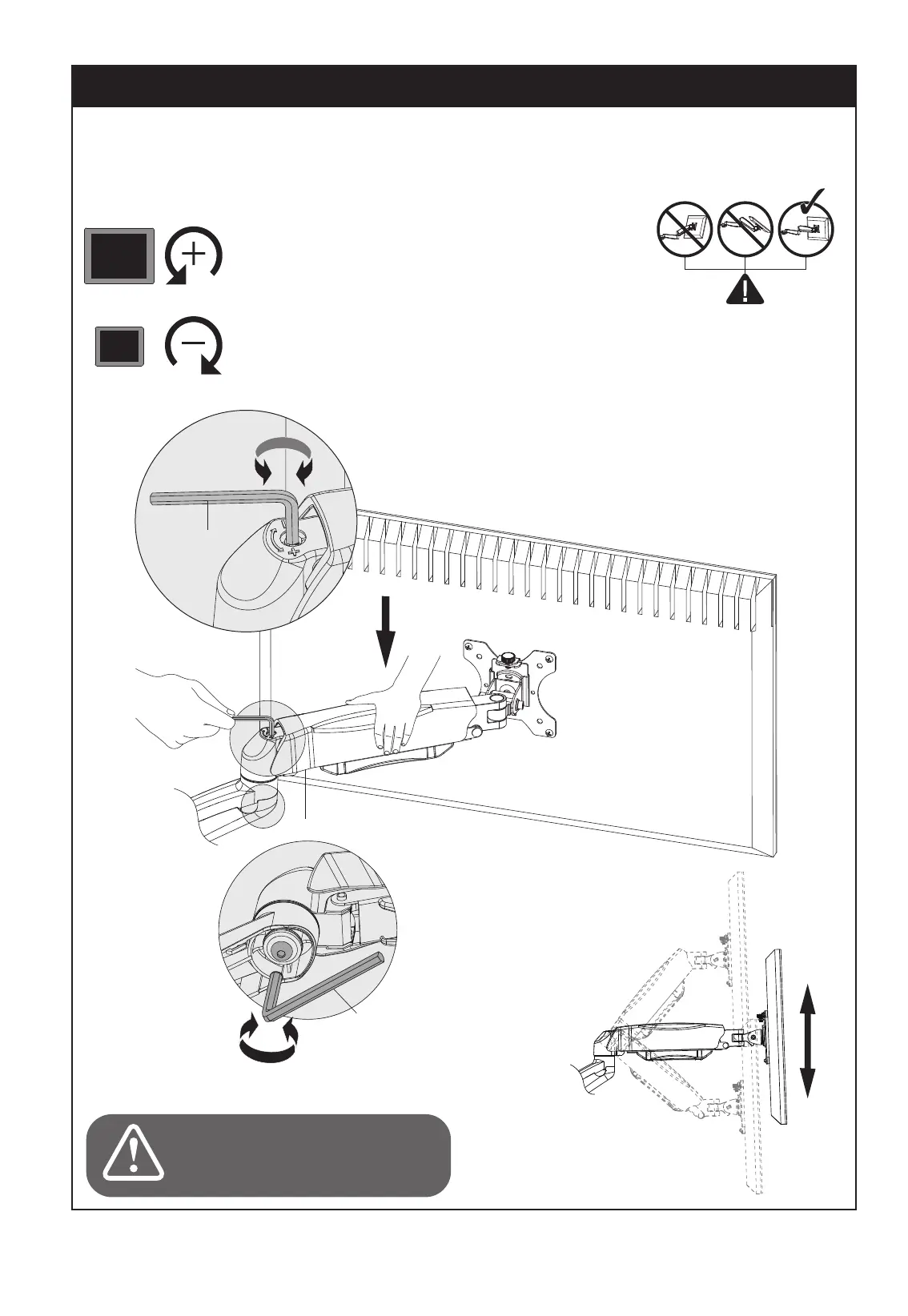

If necessary, refer to above illustrations
to adjust the level of tightness of the
arms.
CAUTION
After being attached to the arm, the monitor falls down
and can not stay at the desired height by itself.
Turn counter-clockwise(“+”direction) to increase gas
spring tension until the monitor can stay at the desired
height by itself.
After being attached to the arm, the monitor rises up and
can not stay at the desired height by itself.
Turn clockwise(“-”direction) to reduce gas spring tension
until the monitor can stay at the desired height by itself.
Note：
Be sure to keep the arm in horizontal
position during adjustment. Or else it
would be dicult to adjust the mount.
or damage the mount.
+
-
L
For proper functioning of this mount, depending on dierent weight of monitor you might need to sdjust
tension in gas spring arm (A) using 5mm allen key(L).
