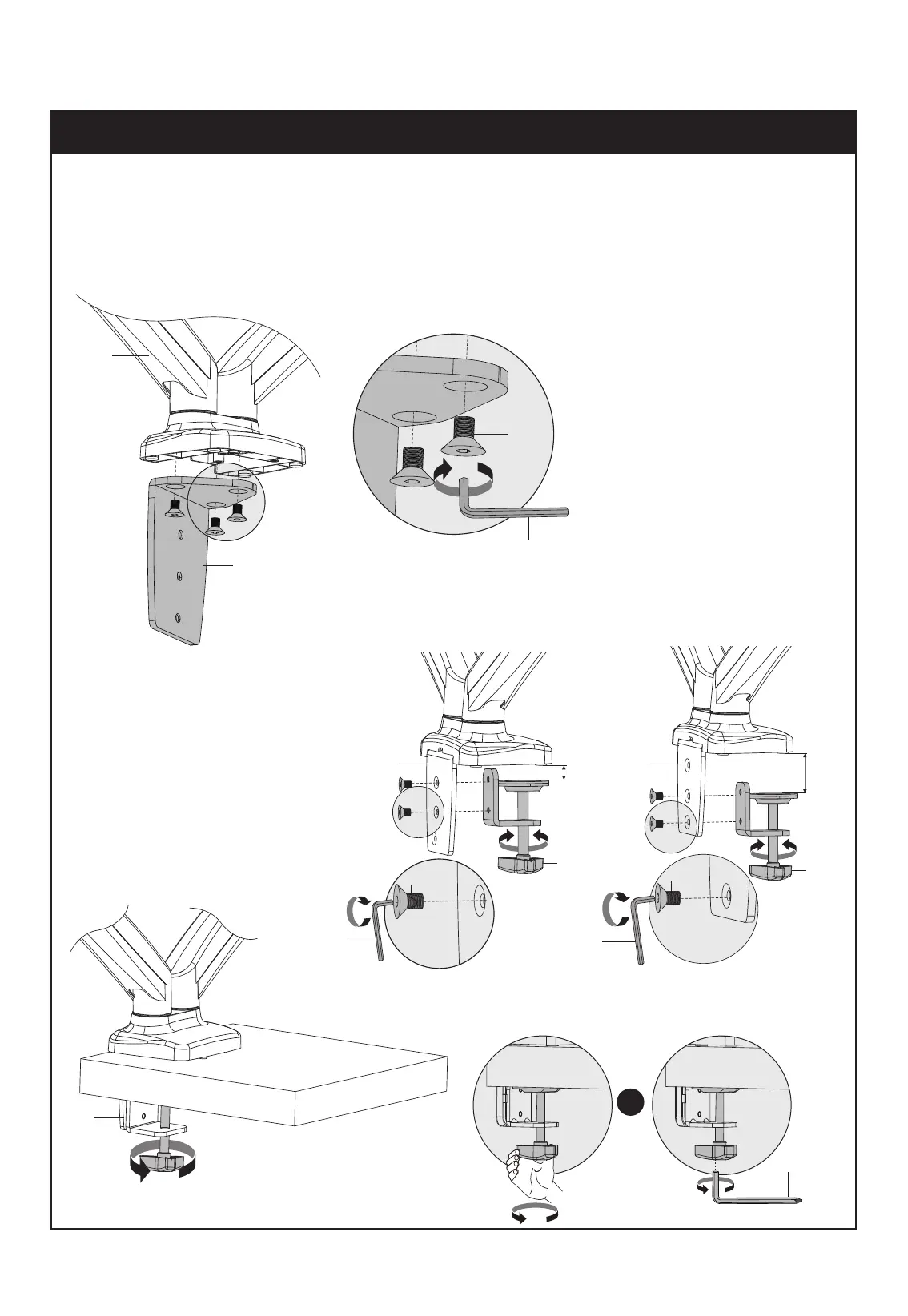

OPTION A: Clamp Installation
1A-1 Mount bracket (C) to bottom of gas spring arm (A) using bolts (E). Tighten them by using 4mm
allen key (K).
1A-2 Attach clamp (D) to bracket (C) using bolts (E) and 4mm allen key (K).
Mount according to thickness of desktop.
1A-3 Secure stand to desktop by tightening clamp (D) or by using 6mm allen key (M).
ASSEMBLY STEPS
STEP 1: Clamp Installation OR Grommet Base Installation
02
D
K
10-90mm
E
D
10-60mm
K
E
-2a
M
OR
C
D
C
A
K
E
C
To Next Page
