OPTION B: Grommet Base Installation

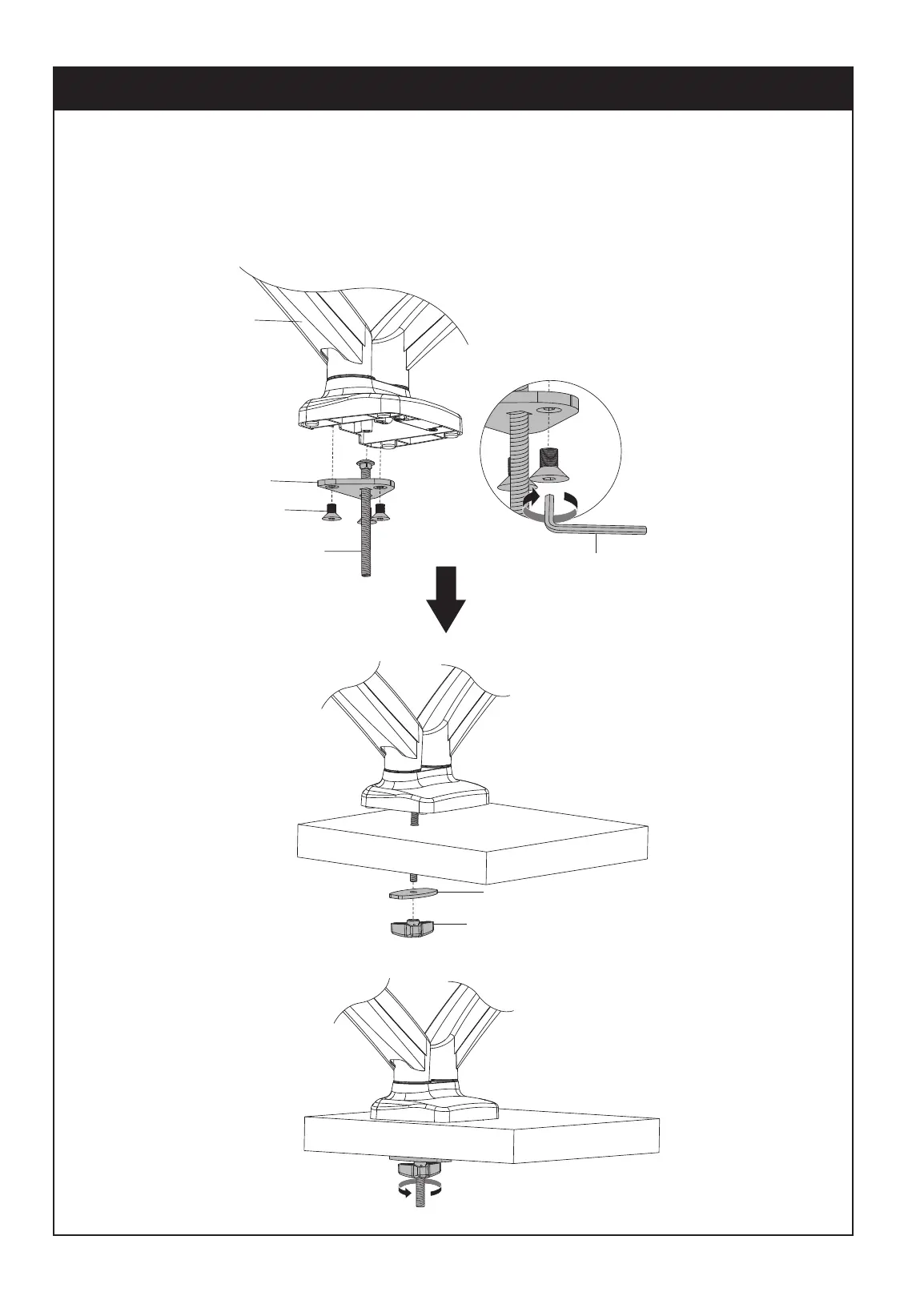

1B-1 For grommet hole mounting, place carriage bolt (H) through the center of grommet base (F).
Mount grommet base to bottom of gas spring arm (A) using bolts (E). Tighten using 4mm allen key (K).
1B-2 Run carriage bolt (H) through grommet hole in desktop. Attach metal plate (J) and wingnut (G).
Tighten wingnut.
STEP 1: (Continued)
03
G
J
H
F
A
E
K
