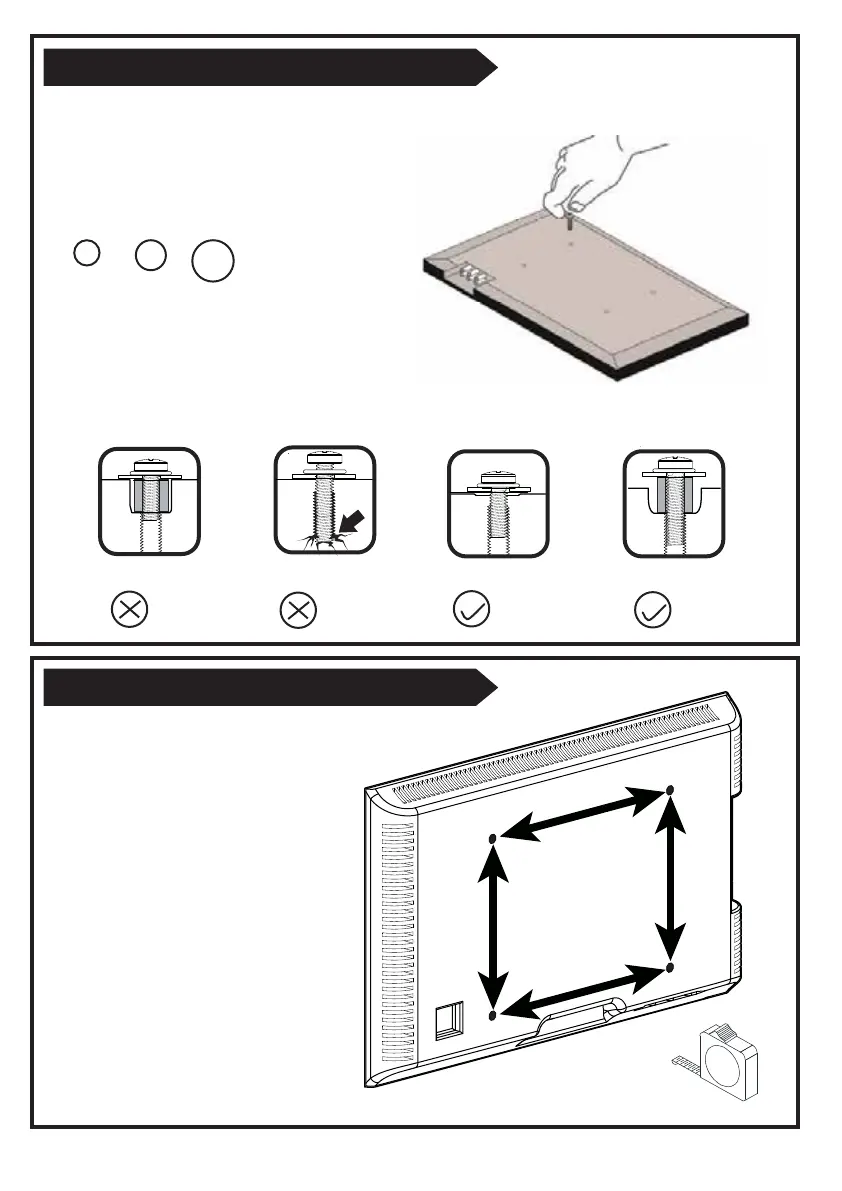

1. Select TV screw diameter: Thread screws by hand into the threaded holes on the
back of your TV to select which screw diameter fits your TV.
2. Select TV screw length: When attaching brackets to the TV, be careful not to over
tighten screws and be sure that screws do not bottom out in the mounting holes.
Measure and note the width and the height
of the square or rectangle formed from the
VESA holes pattern .
M6M4
M8
Correct
Correct
Too Long
Too Short
- 4 -
STEP 1 Select Proper TV Screw
STEP 2 Measure your TV pattern
W
H
2M2M
100mm ≈ 4in.
130mm≈ 5 1/8in.
200mm ≈ 8in.
300mm ≈ 11 3/4in
340mm ≈ 13 3/4in.
400mm≈ 16in.
