- 5 -

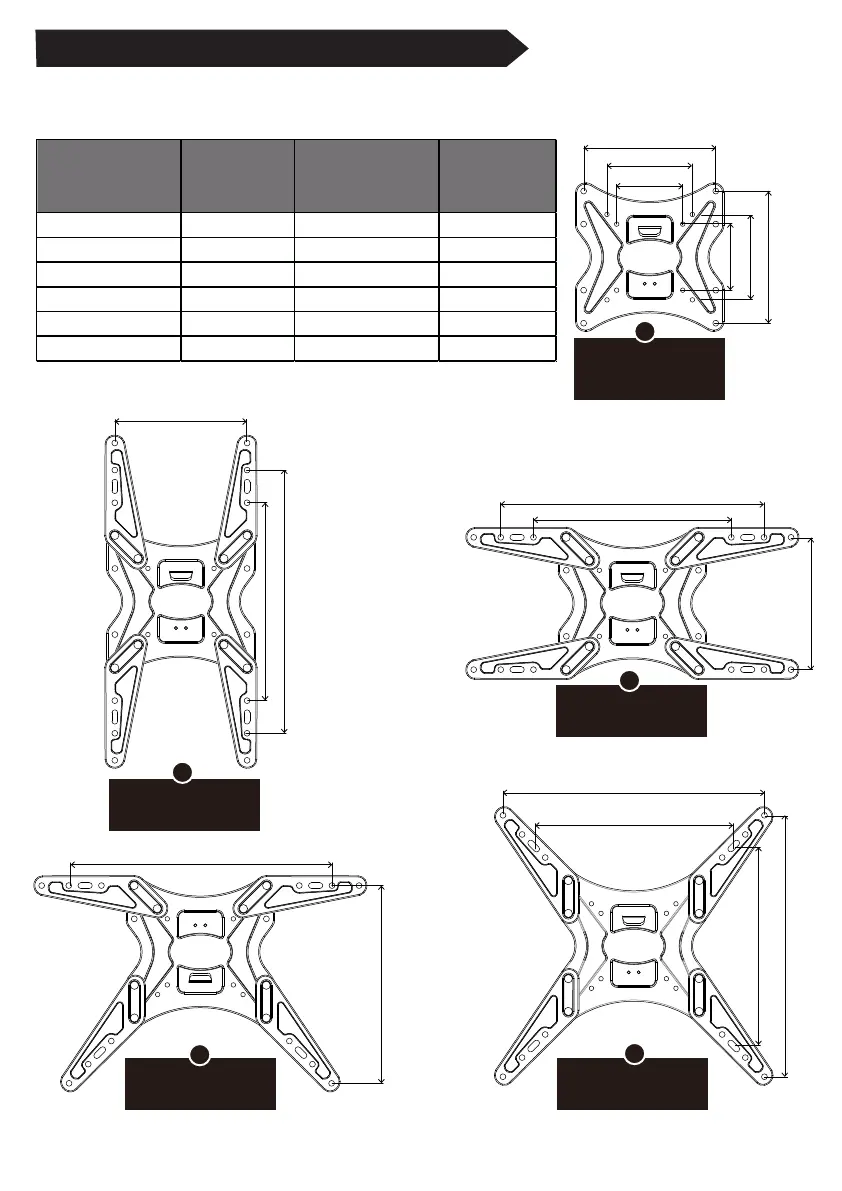

STEP 3-1 Select monitor plate configuration
Select the configuration A , B , C, D, or E to use based on the measurement from STEP 2.
for VESA hole pattern:
300x300mm, 400x400mm
for VESA hole pattern:
400x300mm
for VESA hole pattern:
200x300mm, 200x400mm
for VESA hole pattern:
400x200mm, 300x200mm
200 mm
200 mm
400 mm
400 mm
400 mm
400 mm
400 mm
300 mm
300 mm
300 mm
300 mm
300 mm
B
C
D
E
for VESA hole pattern:
100x100mm, 130x130mm
200x100mm, 200x200mm.
200 mm
100 mm
130 mm
200 mm
100 mm
130 mm
A
VESA Patter
(WxH)
Configuration
VESA Pattern
(WxH)
Configuration
100mm x 100mm A 300mm x 200mm C
130mm x 130mm A 300mm x 300mm E
200mm x 100mm A 400mm x 200mm C
200mm x 200mm A 400mm x 300mm D
200mm x 300mm B 400mm x 400mm E
To Next Page
