cod.9IS44018
7-06 GB
ELECTRICAL CONNECTIONS
Caution! Always switch off machine before working on electrical connections. The instrument has screw terminals for connecting electrical cables
with a maximum diameter of 2.5 mm
2
(only one conductor per terminal for power connections): for terminal capacity, see instrument label.The relay
contacts are voltage-free. Do not exceed the maximum current allowed. For higher loads, use a suitable contactor. Make sure that the power voltage
complies with the device voltage. The sensor has no connection polarity and can be extended using an ordinary bipolar cable (note that extending the
probe may affect the electromagnetic compatibility (EMC) of the instrument: special care must be used when wiring). Probe cables, power supply
cables and the TTL serial cable should be kept separate from power cables.
IC 912 4/4

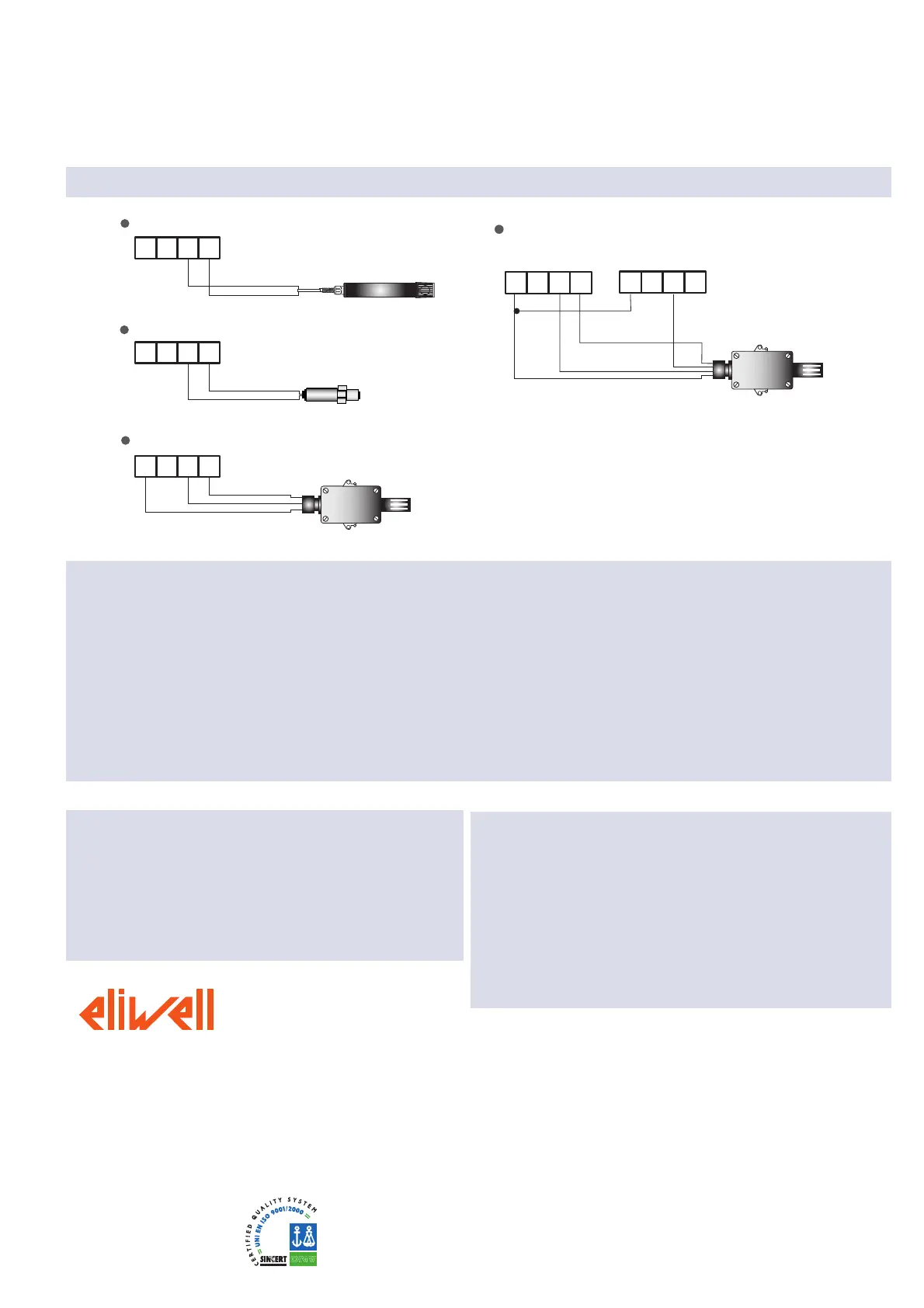

CONFIGURATION OF EWPA-EWHS PROBES
CONDITIONS OF USE
PERMITTED USE
For safety reasons the instrument must be installed and used in accordance with the instructions supplied. Users must not be able to access parts with dangerous voltage lev-
els under normal operating conditions.
The device must be suitably protected from water and dust according to the specific application and only be accessible using special tools (except for the front keypad).
The device can be fitted to equipment for household use and/or similar use in the refrigeration sector and has been tested with regard to safety in accordance with the
European harmonized reference standards: It is classified as follows:
• as an automatic electronic control device to be integrated as regards its construction;
• as a 1 B type operated control device as regards its automatic operating features;
• as a Class A device in relation to the category and structure of the software.
UNPERMITTED USE
The use of the unit for applications other than those described above is forbidden.
It should be noted that the relay contacts supplied with the device are functional and therefore exposed to potential faults. Any protection devices required to comply with
product requirements or dictated by common sense due to obvious safety reasons should be installed externally.
DISCLAIMER
This document is exclusive property of Eliwell and cannot be reproduced
and circulated unless expressly authorized by Eliwell. Although Eliwell
has taken all possible measures to guarantee the accuracy of this docu-
ment, it declines any responsibility for any damage arising out of its use.
The same applies to any person or company involved in preparing and
writing this document. Eliwell reserves the right to make any changes or
improvements without prior notice and at any time.
RESPONSIBILITY AND RESIDUAL RISKS
Eliwell shall not be liable for any damages deriving from:
- installation/use other than that prescribed and, in particular, which does
not comply with the safety standards specified in the regulations and/or
those given herein;
- use on boards which do not guarantee proper protection against electric
shock, water or dust when assembled;
- use on boards which allow dangerous parts to be accessed without the use
of tools;
- tampering with and/or alteration of the product;
- installation/use on boards that do not comply with the standards and regu-
lations in force.
