Eliwell IC 912 Series User Manual

Front protection
Casing
Dimensions
Mounting
Operating temperature
Storage temperature
Usage and storage
ambient humidity
Display range
Analogue input
Serial
Digital ouputs
Buzzer output
Measurement range
Accuracy
Resolution
Consumption
Power supply
IP65
resin plastic casing PC+ABS UL94 V-0, polycarbonate
front polycarbonate front, thermoplastic resin buttons
front panel 74x32 mm, depth 59mm (terminals excluded)
panel-mounted with drilling template 71x29mm (+0.2/-0.1 mm)
-5°C...55°C
-30°C...85°C
10...90% RH (non-condensing)
-99...100 (ndt=n), -99,9...100,0 (ndt=y), -999...1000 (ndt=int)
on display 3 1/2 digits plus sign
1 V-I (0-1V, 0-5V, 0-10V, 0-20...mA, 4...20mA par.H00)
TTL for Copy Card connection
1 SPST relay 8(3)A 1/2 hp 250 Va
only in some models
from -999 to 1000
better than 0.5% of full scale + 1 digit.
1 or 0.1 digits depending on parameter settings
1,5 W max(mod. 12V) / 3 VA max (mod. 230V)
12Va/c, 12/24 Va/c, 24Va/c 10%,
110/115Va, 220/230 Va 10% 50/60 Hz
IP65
resin plastic casing PC+ABS UL94 V-0, polycarbonate
front polycarbonate front, thermoplastic resin buttons
front panel 74x32 mm, depth 59mm (terminals excluded)a
panel-mounted with drilling template 71x29mm (+0.2/-0.1 mm)
-5°C...55°C
-30°C...85°C
10...90% RH (non-condensing)
Pt100: -150...650°C / TcJ: -40...750°C / TcK: -40...1350°C*
on display 3 1/2 digits plus sign
1 Pt100 or 1 TcJ or TcK (depending on model)
TTL for Copy Card connection
1 SPST relay 8(3)A 1/2 hp 250 Va
only in some models
from -150 to 1350
see “Pt100/TcJ/TcK models” table
see “Pt100/TcJ/TcK models” table
1,5 W max(mod. 12V) / 3 VA max (mod. 230V)
12Va/c, 12/24 Va/c, 24Va/c 10%,
110/115Va, 220/230 Va 10% 50/60 Hz

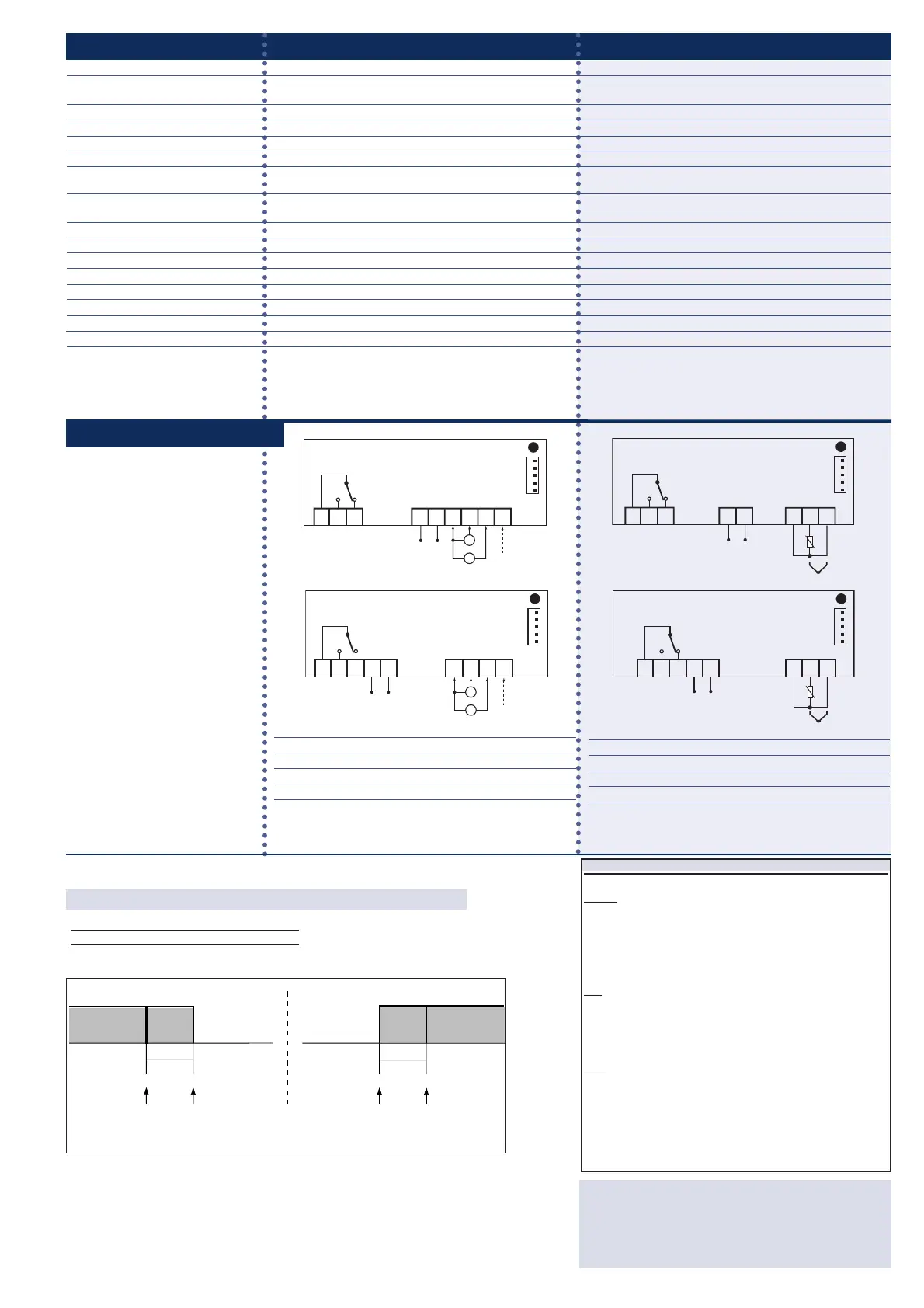

TECHNICAL DATA IC 912 P/R/V-I/I-V IC 912 Pt100/TC
IC 912 Pt100/TC - 230 V
A
10
11
12
+
-
1 2 3 6 7
Supply
IC 912 Pt100/TC - 12 V
A
6 7
10
11
12
+
-
Supply
1 2 3
8 9
10
IC 912 P/R/VI - 230 V
A
I
V
•••
+12V
11
Supply
1 2 3 6 7
6 7 8 9
10
IC 912 P/R/VI - 12 V
A
11
I
V
•••
+12V
Supply
1 2 3
1-2 N.A. controller relay OUT
1-3 N.C. controller relay OUT
6-7 Power supply
8-9-11 Voltage input (8=ground; 9=signal; =12V)
8-10-11 Voltage input (8=ground; 9=signal; =12V)
A TTL input for Copy Card
1-2 N.A. controller relay OUT
1-3 N.C. controller relay OUT
6-7 Power supply
10-11-12 Probe input Pt100 3 wires Pb1
11-12 TcJ/TcK input (11= + ; 12= - )
A TTL input for Copy Card
IC 912 3/4
PPtt110000// TTccJJ// TTccKK MMOODDEELLSS
Pt100:
Accuracy:
0,5% for full scale value + 1 digit;
0.2% from -150 to 300°C
Resolution:
0.1°C (0.1°F) up to 199.9°C; 1°F over
T
cJ:
Accuracy:
0.4% for full scale value + 1 digit;
Resolution:
0.1°C (0.1°F) up to 199.9°C; 1°F over
TcK:
Accuracy:
0,5% for full scale value + 1 digit;
0.3% from -40 to 800°C
Resolution:
1°C (1°F)
The technical characteristics in this document concerning
measurements (range, accuracy, resolution, etc.) refer to
the instrument in the strictest sense and not to any acces-
sories provided such as probes, for example. This means, for
example, that an error introduced by the probe is added to
any error that is typical of the instrument.
WIRING DIAGRAMS
MECHANICAL ASSEMBLY
The unit has been designed for panel-mounting: Drill a 29x71 mm hole, insert a tool and
fix it in place with the brackets provided. Do not assemble the instrument in excessively
humid or dirty locations since it is designed to be used in locations with normal levels of
pollution.
Always make sure that the area next to the cooling openings of the tool is adequately
ventilated.
SP1
SP1-dF1
dF1
Off
On
HC1=H
SP1+dF1
SP1
dF1
Off
On
HC1=C
HC1 Heat/Cool Mode
SP1 Setpoint 1
dF1 Relay 1 tripping differential.
ON-OFF CONTROL DIAGRAM
