Eliwell IC 912 - WIRING DIAGRAM AND PRODUCT INFORMATION; WIRING TERMINALS AND NOTES; COMPANY INFORMATION

IC 912/P/R/V-I 4/4
Invensys Controls Italy s.r.l
via dell'Industria, 15 Zona Industriale Paludi
32010 Pieve d'Alpago (BL) ITALY
Telephone +39 0437 986111
Facsimile +39 0437 989066
Internet http:/www.climate-eu.invensys.com
10/2002 eng
cod. 9IS22082
1 2 3
6 7 8 9
10
IC 912/P/R/VI - 12 V
A
11
I
V
++-
+12V
1 2 3 6 7
8 9
10
IC 912/P/R/VI - 230 V
A
I
V
++-
+12V
11

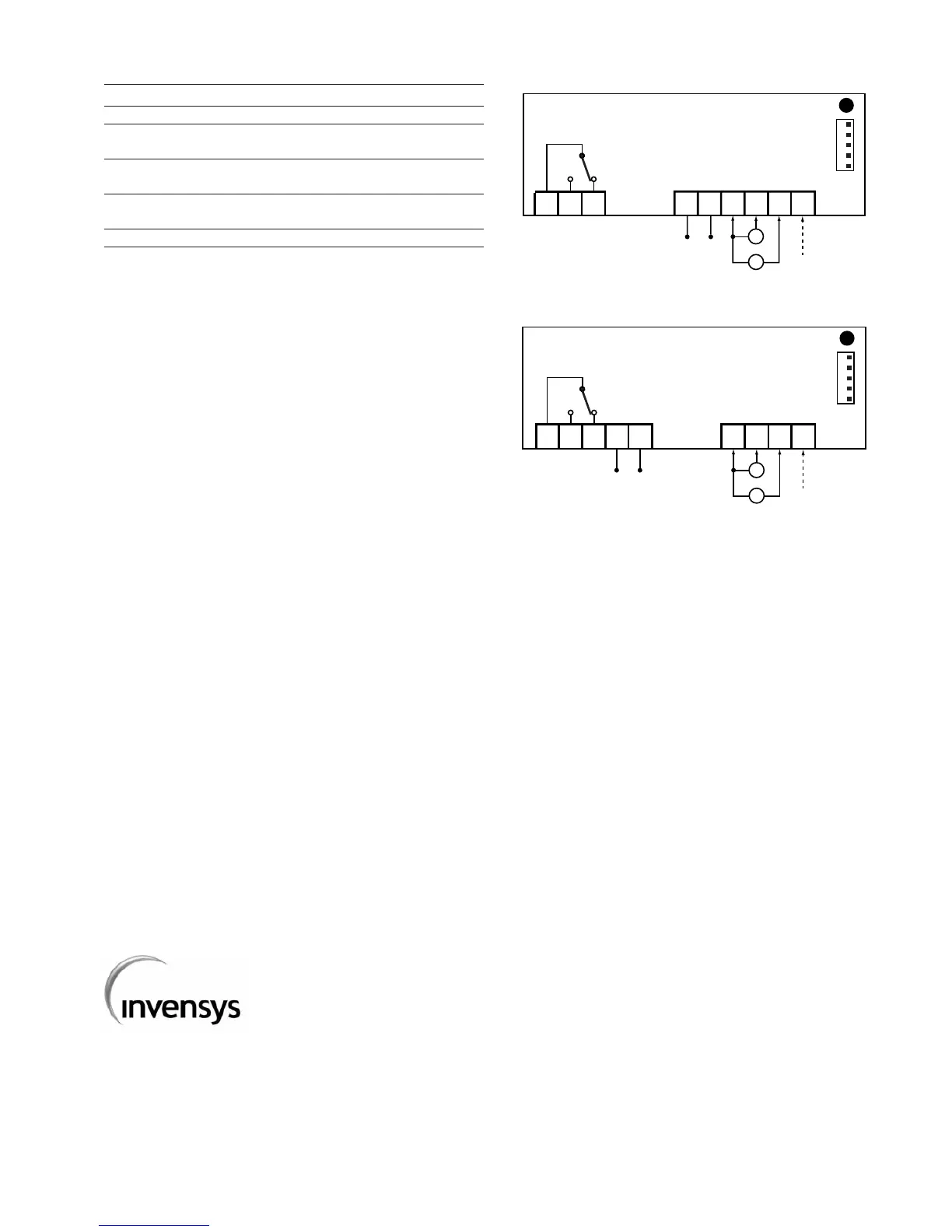

WIRING
1 - 2 N.C. regulator 1 relay output (OUT1)
1 - 3 N.O. regulator 1 relay output (OUT1)
6 - 7 Power supply 1,5 VA max. (12V version)
Power supply 3 VA max. (230V version)
8 - 9 - 11 Voltage Input (8=GND 9=signal;
11=+12V)
8 -10 -11 Current Input (8=GND; 10=signal;
11=+12V)
A TTL input for Copy Card
PLEASE NOTE:
• User Default Settings
• for relay capacities check on the instrument label
In the diagram it is shown relays with 8(3), 1/2 hp, 250V
capability
Wiring diagram
