Page 10
ENLZSTL8WS_1G
1000004543 (Rev. A - 10/18)

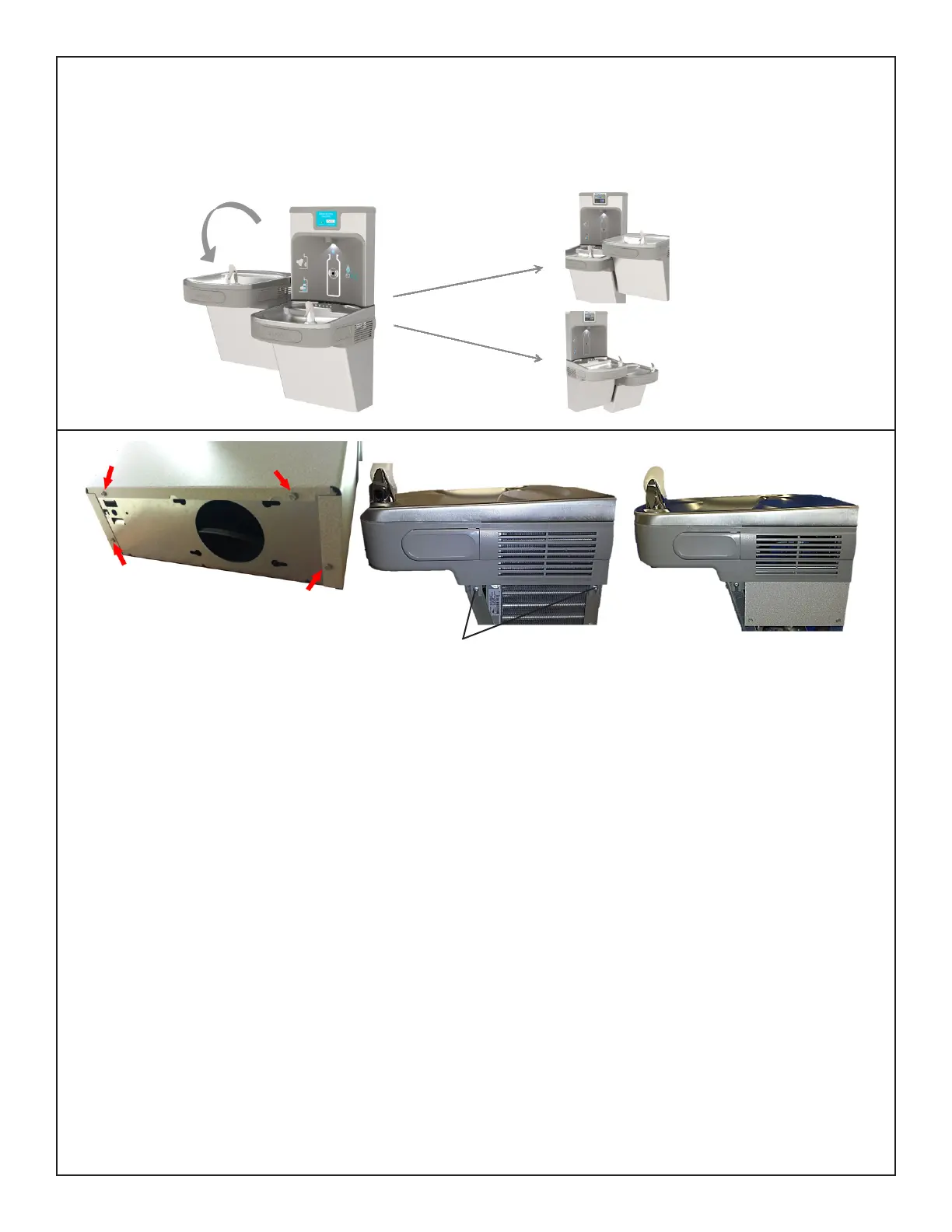

INSTRUCTIONS TO MOVE THE BOTTLE FILLER & BASIN TO THE LEFT SIDE
(NON-REFRIGERATED) FOR ALTERNATE MOUNTING VERSATILE BI-LEVEL
Using a 5/16" socket, remove the (4)
screws from the bottom of each cooler
to remove the wrappers.
Using a #T20 (6 point star bit),
loosen the shroud screws. Both
sides, both coolers.
ONLY move the ller panel and j-clip
to the refrigerated (right) side if right
side will be mounted “high”
Fig. A
Fig. B
Precautions need to be taken when replacing the Basin/shroud assembly:
1) Make sure all wires are inside frames so as not to become pinched.
2) Water line coming from bottle llter drain must be pulled down as not to interfere with the fan operation. The fan
blade needs to spin freely.
