Page 11 1000004543 (Rev. A - 10/18)
ENLZSTL8WS_1G
Swap drain parts in shroud: Loosen each hose clamp retaining the drain pieces. Remove each drain piece and swap to other basin.
Tighten each hose clamp.

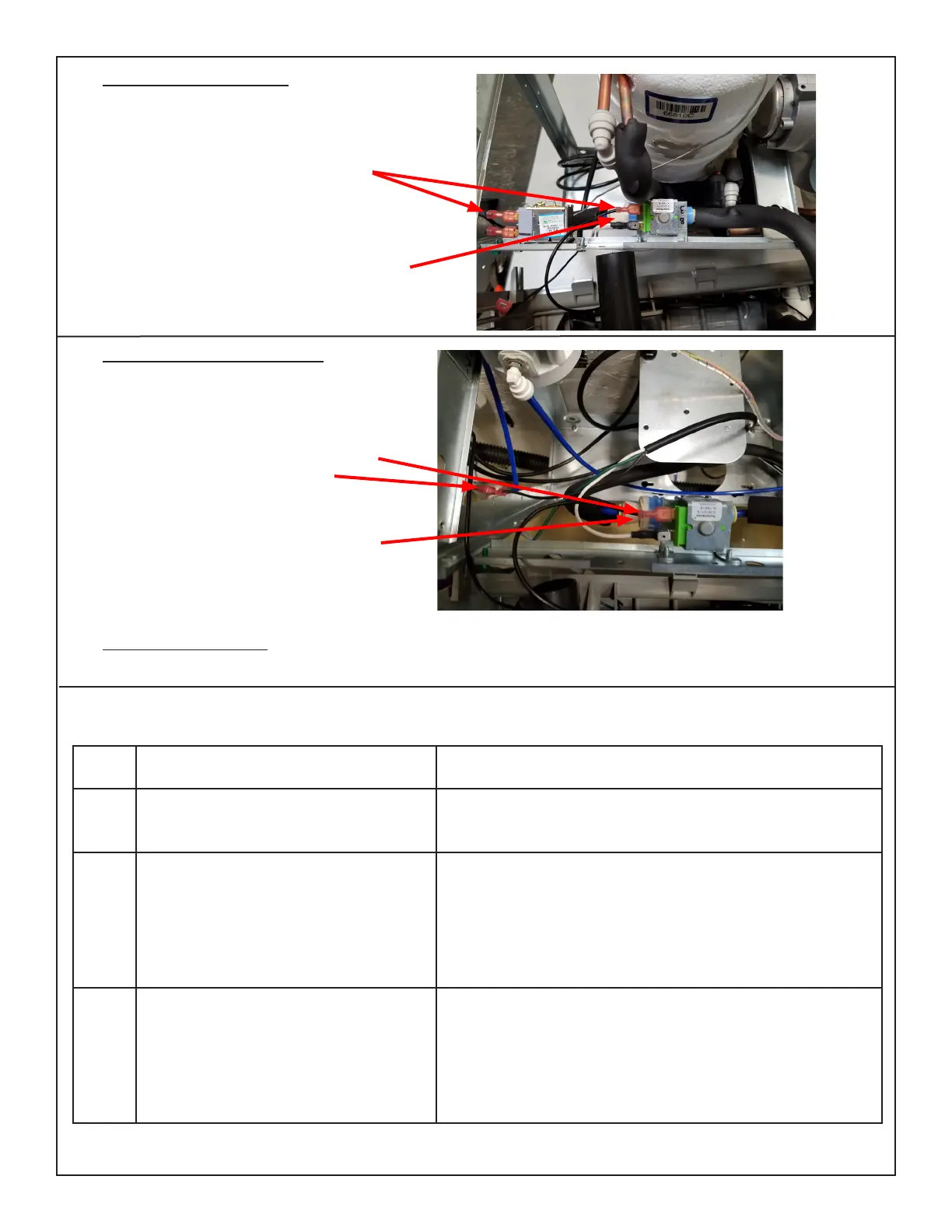

Non-Refrigerated Cooler side:
Carefully tip the shroud/basin assembly
toward the cooler frame.
Connect one of the black wires to the
solenoid valve and one to the power
cord.
Re-connect the water line at the
solenoid. Reference (Fig. 16, p.17) for
the operation of the quick connect
ttings.
Refrigerated Cooler side:
Carefully lift and tip the shroud/basin
assembly o of the cooler frame.
Only disconnect the (2) black wires
coming from the shroud assembly that
go to the solenoid valve and to the cold
control.
Disconnect the water line at the solenoid
valve. Reference (Fig. 16, p.17) for the
operation of the quick connect ttings.
Enhanced EZH2O Error Codes
Error
Code
Error Description Corrective Action
E01 Bottle ller area obstructed • Clean lens on IR sensor
• Unplug unit for at least 30 seconds and restart
• If error repeats, replace IR sensor with 1000002434 KIT - IR SENSOR
E02 Missing or Incomplatible Filter • Check that lter is installed correctly (label facing forward, white tag fac-
ing back)
• Unplug unit for at least 30 seconds and restart
• Replace lter
• Replace lter head assembly with repair kit - 1000002030 KIT - FILTER
HEAD-BRKT-FTGS
• If error repeats, contact certied service professional
E03 Missing NFC Board • Unplug unit for at least 30 seconds and restart
• Verify cable connector is plugged into NFC board on lter head assembly
• Verify cable connector is plugged into control board (10 pin connector on
harness # 0000001225)
• Replace lter head assembly with repair kit - 1000002030 KIT - FILTER
HEAD-BRKT-FTGS
• If error repeats, contact certied service professional
