Elkay EZF4 1C Series Installation & Use Manual

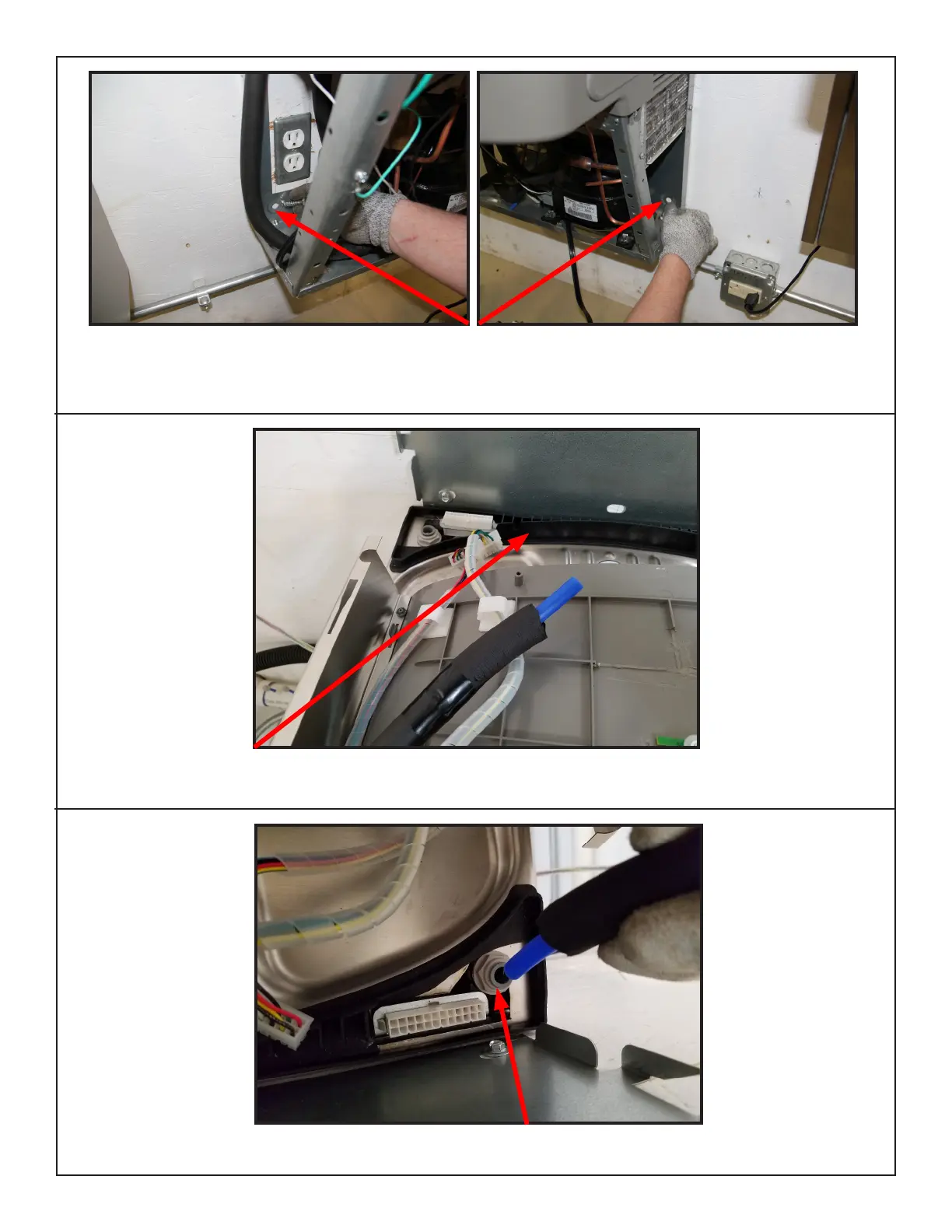

FIG. 2
Secure cooler frame to wall by installing (2) screws and washers (not supplied).
Para jar la estructura del bebedero a la pared, instale (2) tornillos y arandelas (no se proporcionan).
Fixer le bâti de la fontaine à eau fraîche au mur à l’aide de deux (2) vis et rondelles (non fournies).
Fig. 5
Fig. 4
Attach the 3/8 water line into the bulkhead tting
FIG. 3
Lay gasket along back of bottle ller mounting plate. Align BF and lay on cooler basin.
Page 7 1000004543 (Rev. A - 10/18)
ENLZSTL8WS_1G
