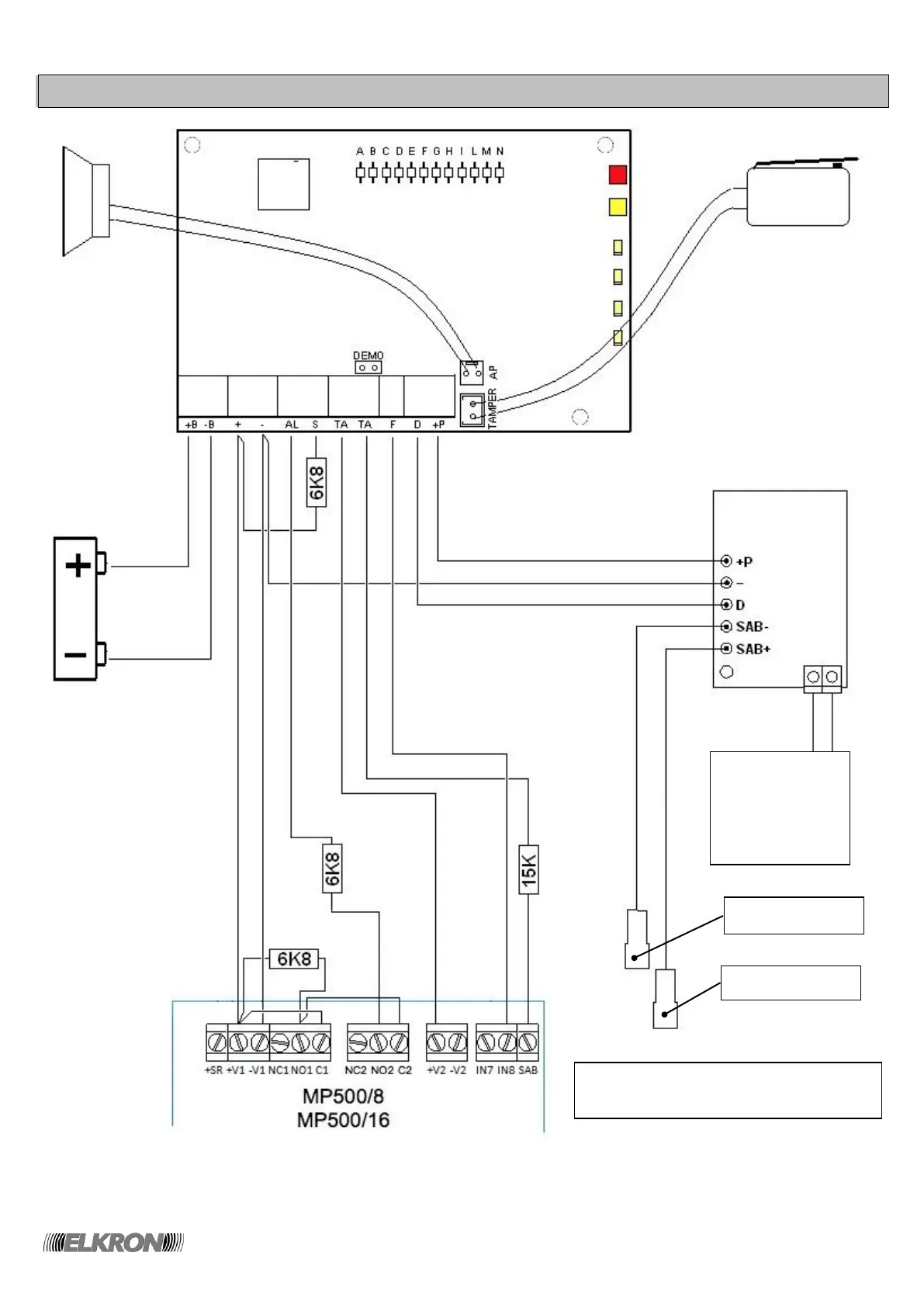

7.0 ESEMPIO DI CO
LLEGAMENTO
CENTR
A
LE
MP500/8 E MP5
00/16
Alla gabbia interna
Al coperchio esterno
su ingresso 24h
dedicato oppure
utilizzare funzione
riporto (vedere
paragrafo 3.8)
BLU
GIALLO
-VERDE
Uscita di allarme
Intrusione/
Manomissine
Ingresso Guasto
+13.8V
BIANCO
NERO
ROSSO
L’esempio si riferisce al
le programmazioni
di fabbrica (linee doppio-bil
anciate)
24
H
-
13.8V
9
11
Table of Contents
Italiano
2
1 Caratteristiche Generali
2
Table of Contents
2
Gestione Allarmi
2
Autodiagnostica
3
2 Installazione
3
3 Modulo Sirena
4
Programmazioni
5
Programmazione Time out Suonata (A,B)
5
Programmazione Tipo Ingressi (C)
5
Programmazione Riferimento Ingressi (D)
5
Programmazione Conteggio Allarmi (E)
6
Programmazione Funzione Ponteggi (F)
6
Programmazione Modalità DI Suonata (G,H,I)
6
Programmazione Riporto Allarmi Modulo Protezioni (L)
6
Programmazione Led Stato Impianto (M)
6
Programmazione Led Guasto (N)
6
4 Funzionalità Lampeggiatore
7
5 Accessori
7
Modulo Protezioni
7
Connessioni
8
6 Esempio DI Collegamento Centrale Mp500/4N
9
7 Esempio DI Collegamento Centrale Mp500/8 E Mp500/16
10
8 Caratteristiche Tecniche
11
Français
12
1 Caracteristiques Generales
12
Gestion Alarmes
12
Autodiagnostic
13
2 Installation
13
3 Module Sirène
14
Programmations
15
Programmations Time out Sonnerie (A,B)
15
Programmations Type Entrées (C)
15
Programmations Référence Entrées (D)
15
Programmations Comptage Alarmes (E)
16
Programmations Fonction Echafaudage (F)
16
Programmation Modalites de Sonnerie (G,H,I)
16
Programmation Report Alarmes Module Protections (L)
16
Programmation Led État Installation (M)
16
Programmation Led Panne (N)
16
4 Fonction Clignotant
17
5 Accessoires
17
6 Exemple de Raccordement Avec Centrale Mp500/4N
19
7 Exemple de Raccordement Avec Centrale Mp500/8 - /16
20
8 Caracteristiques Techniques
21
9 Maintenance Preventive
22
10 Exploitation
22
English
23
1 General Characteristics
23
Alarms Management
23
Self-Diagnostics
24
2 Installation
24
3 Siren Module
25
Programming
26
Sound Time out Programming (A,B)
26
Input Type Programming (C)
26
Input Reference Programming (D)
26
Alarms Count Programming (E)
27
Scaffolds Function Programming (F)
27
Sound Mode Programming (G,H,I)
27
Protection Module Alarm Carryover Programming (L)
27
System State Led Programming (M)
27
Fault Led Programming (N)
27
4 Flashlight Function
28
5 Accessories
28
Protection Module
28
Connections
29
6 Example of Connection with Mp500/4N Control Panel
30
7 Example of Connection with Mp500/8 - /16 Control Panel
31
8 Technical Characteristics
32
Deutsch
33
1 Allgemeine Merkmale
33
Alarmverwaltung
33
Selbstdiagnose
34
2 Installation
34
3 Sirenenmodul
35
Ab Fabrik Erfolgte Programmierung
36
Programmierung: Time out Sirenengeheul (A,B)
36
Programmierung: Typ Eingänge (C)
36
Programmierungi: Bezug Eingänge (D)
36
Programmierung: Zählung Alarme (E)
37
Programmierung: Funktion Baugerüst (F)
37
Programmierung: Modalität Sirenengeheul (G,H,I)
37
Programmierung Alarmanzeige Schutzmodul (L)
37
Programmierung Led für Anlagenstatus (M)
37
Programmierung Fehler-Led (N)
37
4 Blinker-Funktionsweise
38
5 Zubehörteile
38
Schtzmodul
38
Anschlüsse
39
6 Anschlussbeispiel mit Mp500/4N Zentrale
40
7 Anschlussbeispiel mit Mp500/8 und Mp500/16 Zentrale
41
8 Technische Merkmale
42
