5. Fan Assembly. (cont.)
page 5

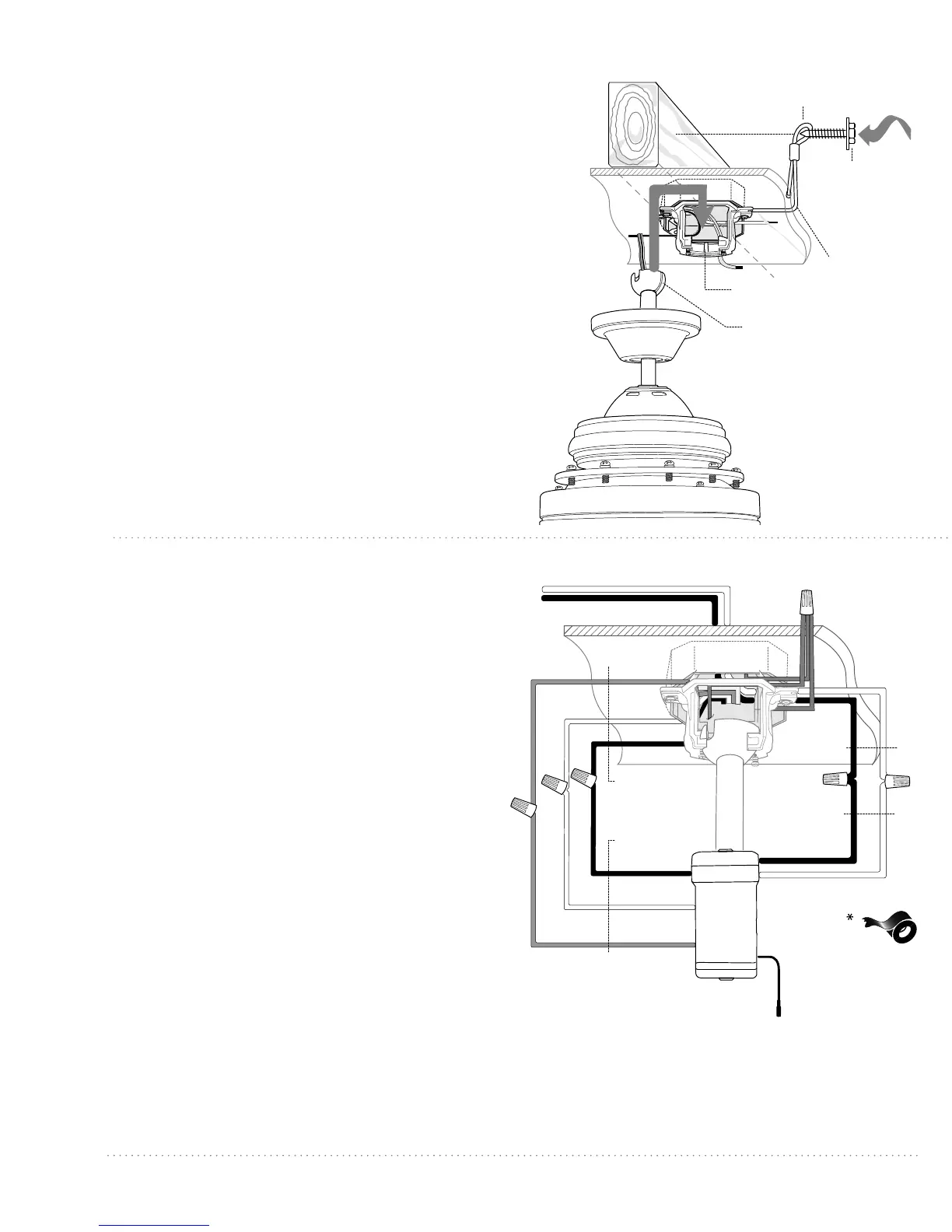

With the hanging bracket secured to the outlet box
and able to support the fan, you are now ready to
hang your fan. Grab the fan firmly with two hands.
Slide downrod through opening in hanging bracket
and let hanging ball rest on the hanging bracket.
Turn the hanging ball slot until it lines up with the
hanging bracket tab.
Tip: Seek the help of another person to hold the
stepladder in place and to help lift the fan up to you
once you are set on the ladder.
Find a secure attachment point (wood ceiling joist
highly recommended) and secure safety cable. It will
be necessary to use a heavy duty wood screw,
washer and lock washer (not supplied) with the
safety cable loop. If necessary, adjust the loop at the
end of the safety cable. The loop at the end of the
safety cable should just fit over the threads on the
wood screw. Extra cable slack can be left in ceiling
area.
6. Wiring.
CAUTION: Be sure outlet box is properly grounded
and that a ground wire (GREEN or Bare) is present.
Make sure all electrical connections comply with
Local Codes or Ordinances and the National
Electrical Code. If you are unfamiliar with electrical
wiring or if the house/building wires are different
colors than those referred to in the diagram to the
right, please use a qualified electrician.
When downrod is secured in place on the
hanging bracket, wire the RECEIVER with wire
connectors provided as shown in diagram at
right.
Tip: While you are wiring, keep in mind that
wires must not obstruct receiver from sliding
into hanging bracket.
* Wrap each wire connector separately with
electrical tape as an extra safety measure.
Gently insert receiver (flat side up) into hanging
bracket and carefully push wires and taped wire
connectors into outlet box. Let antenna rest
outside of hanging bracket.
["Wiring" continued on next page.]
white supply wire
black supply wire
black
black
white
blue
blue
white
from receiver
black
AC IN L
AC IN N
white
white
ground (green
or bare)
from fan
from receiver
antenna
from ceiling
(wiring for receiver)
black
receiver
wood
ceiling
joist
hanging ball slot
hanging bracket tab
motor
safety cable
wood screw
and washer
safety cable loop
canopy
