page 8

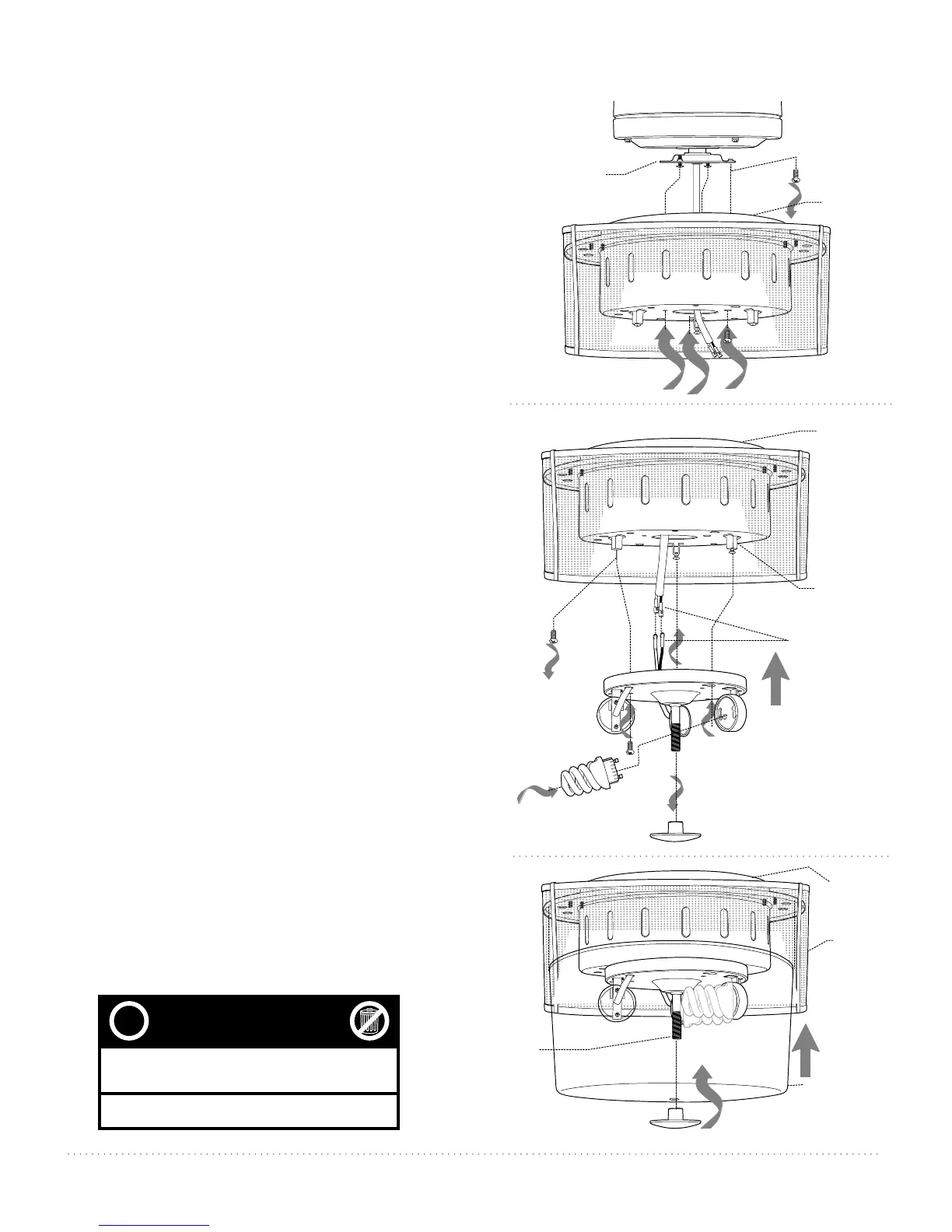

Remove 1 screw from fitter plate on underside of
motor and partially loosen the other 2 screws. Align
slotted holes in center of motor housing with
loosened screws in fitter plate, allowing the molex
connection from motor to come through hole in
middle of motor housing. Twist motor housing to
lock. Re-insert screw that was previously removed
and securely tighten all 3 screws with Phillips
screwdriver. (diagram 2)
Remove screw from 1 of the posts located on
underside of motor housing and partially loosen the
screws in the other 2 posts.
Connect the WHITE wire from the light kit fitter to
the WHITE wire from the motor. Connect the
BLACK wire from the light kit fitter to the BLACK
wire from the motor. Be sure that the molex
connections snap together securely.
Align slotted holes in light kit fitter with loosened
screws in motor housing. Twist light kit fitter to lock.
Re-insert screw that was previously removed and
tighten all 3 screws securely. (diagram 3)
Remove finial from light kit fitter. (diagram 3)
Install 3 compact fluorescent 13 watt max. bulbs,
size GU24 (included). (diagram 3)
Important: When replacing bulbs, please allow
bulb(s) and glass shade to cool down before
touching them.
Align threaded rod on light kit fitter with hole in
middle of glass shade and push up gently allowing
threaded rod to come through hole. Secure glass
shade to light kit fitter by tightening finial.
(diagram 4)
Note: Do NOT overtighten finial as glass may crack or
break.
Hg
LAMP CONTAINS MERCURY
Manage in accordance with Spills, Disposal and Site Cleanup
Requirements. In case of breakage, follow clean-up
procedures provided by contacts below.
www.epa.gov/cflcleanup
1-866-284-4010
fitter plate
motor
diagram 2
motor
housing
chrome
shade
cover
9. Light Kit Assembly. (cont.)
finial
diagram 4
bulb
finial
diagram 3
glass
shade
motor
housing
motor
housing
motor
housing
post
molex
connections
light kit fitter
threaded
rod
motor housing
post screw
chrome
shade
cover
