Ellis 90H - Air Cooling System

A IR C OOLING
Page 7
Part Number
For Voltage Rating
230
120
Item No. Description
Sys. 5922 5932 Air Cooling System-Complete
1 5925 5925 Valve and Nozzle Assembly
2 4730 4730 Elbow Fitting
3 4733 4733 Needle Valve
4 4744 4744 Nipple
5 5923 5923 Mounting Bar*
6 5924 5924 Nozzle Cap
7 4970 4970 Blow Gun
8 4969 4969 Air Hose Assembly
9 5903 5912 Solenoid Valve Assembly-Complete
10 5904 5913 Solenoid and Cord Assembly Only
11 5926 5926 Tubing, .25 OD, 5 Feet
12 4015 4015 Bolt, Hex. Head 5/16-18 x 1-1/4

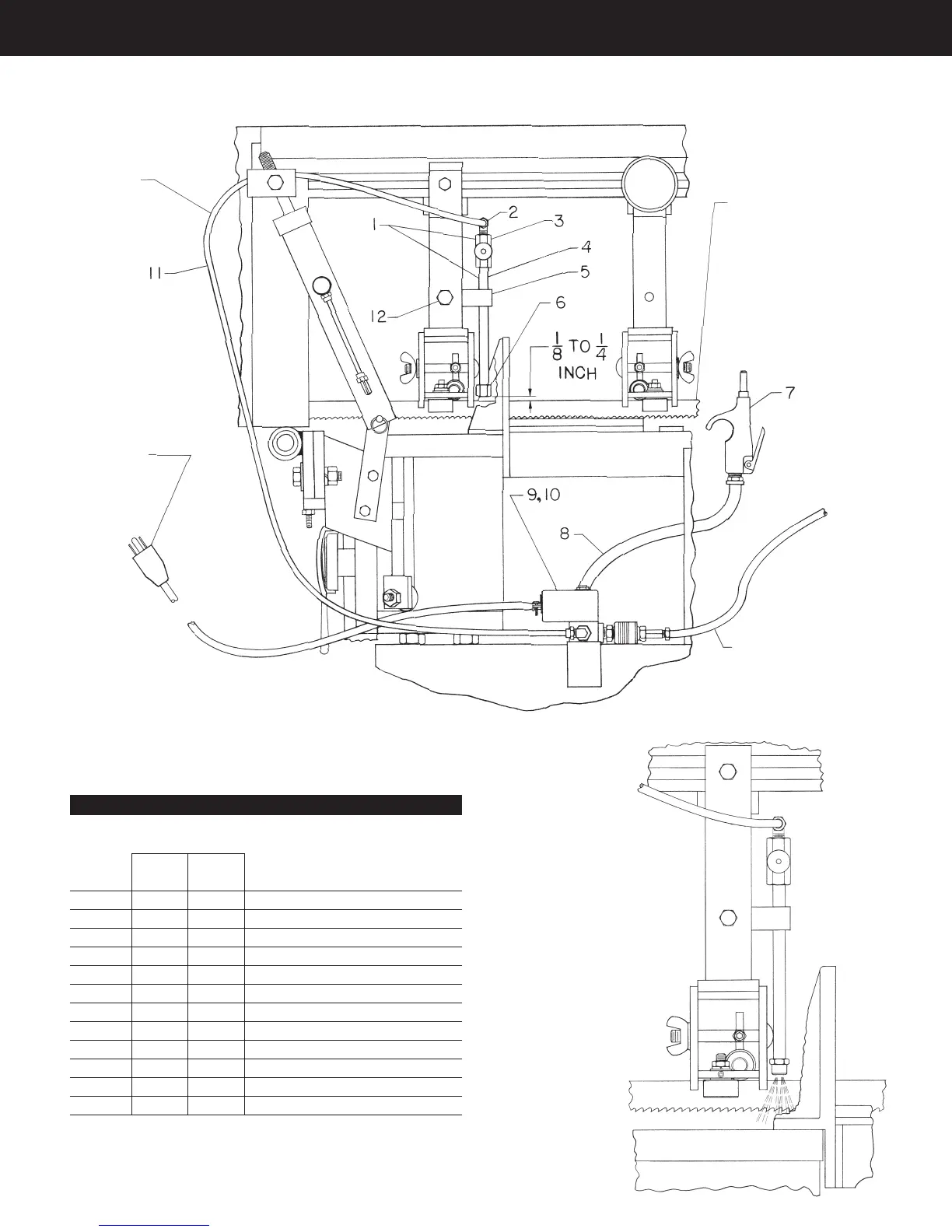

Air Cooling System
* For saw Model 4000 use mounting bar 5928
ENLARGEMENT
OF AIR NOZZLE
Air Supply Tube
Connect To
Shop Air
Power Cord To
Receptacle On
Band Saw
Air Tube Between
Solenoid And
Air Nozzle
Saw Blade
