Ellis 90H - Hydraulic Feed Control Assembly

H YDRAULIC F EED C ONTROL
Page 3
Ellis Mfg. Company, Inc. 107 W. Railroad Street • P.O. Box 930219 • Verona, WI 53593-0219
Phone: (608) 845-6472 • Fax: (608) 845-5199 • www.ellissaw.com
Part Number For Models
1500
1600
1800
90H
900
1000
1100
1200
1440
2000
3000
4000
Item No. Description
Assy. 5355 5506 5708 5777 Hydraulic Feed Control Assembly
1 5529 5529 5529 5529 Cap
2 4950 4950 4950 4950 O-Ring-Shaft
3 5532 5532 5532 5532 Sealing Washer, Top
4 4951 4951 4951 4951 O-Ring-Cylinder
5 5361 5530 5530 5766 Shaft
6 4337 4337 4337 4337 Lock Washer, 5/16
7 5531 5531 5531 5531 Sealing Washer, Bottom
8 5533 5533 5533 5533 Leather Cup
9 5534 5534 5534 5534 Washer-Special
10 4266 4266 4266 4266 Nut, Hex. Jam, 5/16-24
11 5362 5528 5528 5767 Cylinder
12 4743 4743 4743 4743 Plug, Oil Fill
13 4730 4730 4730 4730 Male Elbow - Tube Fitting
14 4732 4732 4732 4732 Sleeve
15 4729 4729 4729 4729 Nut
16 5363 5590 5711 5706 Tube, 1/4 Dia. Plastic
17 4731 4731 Needle Valve-Tube Fitting
18 4728 4728 4728 4728 Male Elbow Assembly
19* 4727 4727 Needle Valve Assembly
20 5356 5749 5749 5748 Travel Stop Tube
21 6702 6702 6702 6702 Rebuilding Kit
22 5707 5707 Remote Needle Valve Assembly
23* 4808 4808 Flow Needle Valve Assembly
24 4735 4735 Elbow, Male to Male
25 4734 4734 Flow Needle Valve
26 4736 4736 Straight Fitting

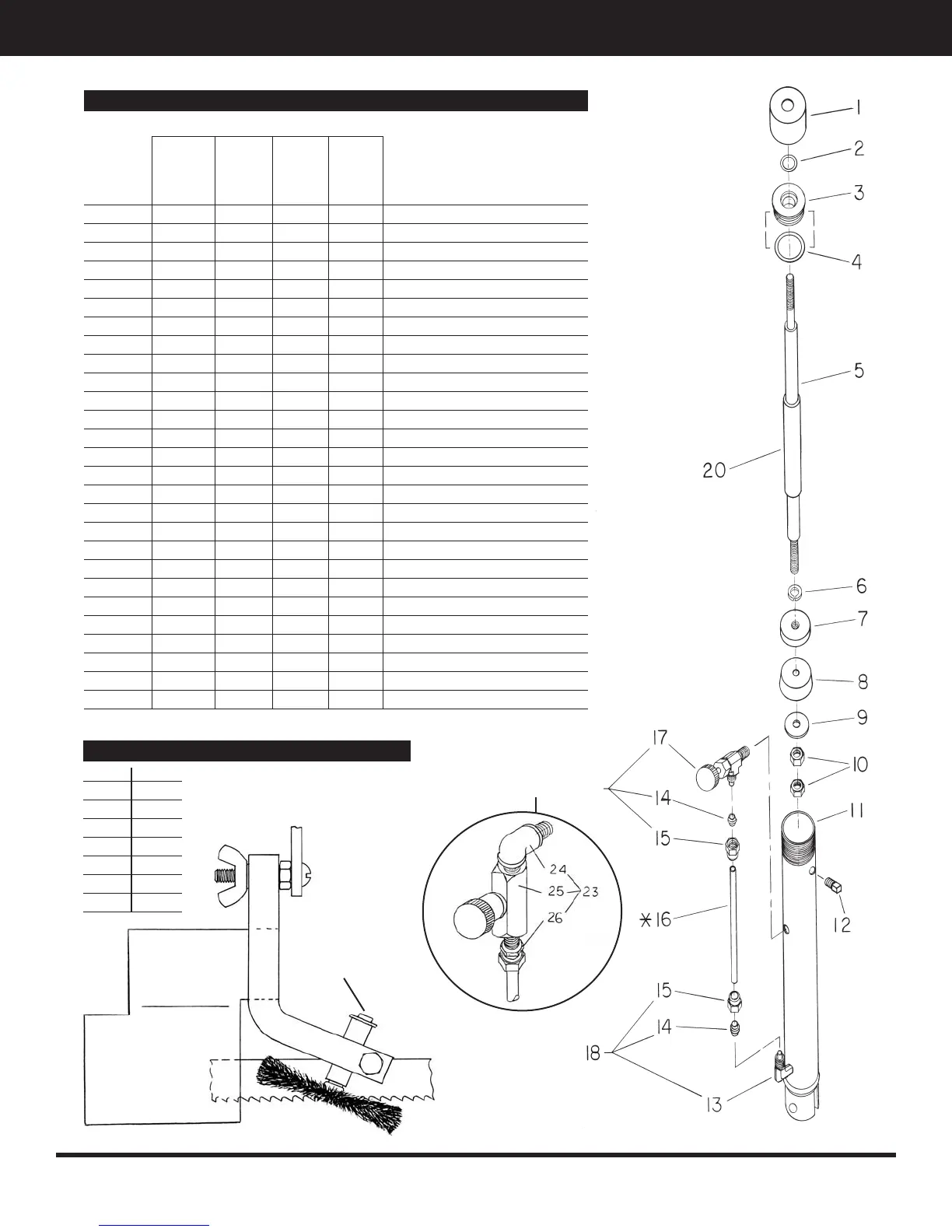

Hydraulic Feed Control Assembly
Saw Pivot Arm Assembly
Chip Brush Assembly
Part No. 5550
1100 5393
1200 5393
1500 5685
1600 6350
1800 6366
2000 6350
3000 6366
4000 6366
*19 and 23 are interchangeable.
23 or 19
