Elmec EVduty EVCCS - EVCCS Module Network Parameters

10
Conguration
7. A configuration form will be displayed (see Figure 8). Change values according to the desired configuration.

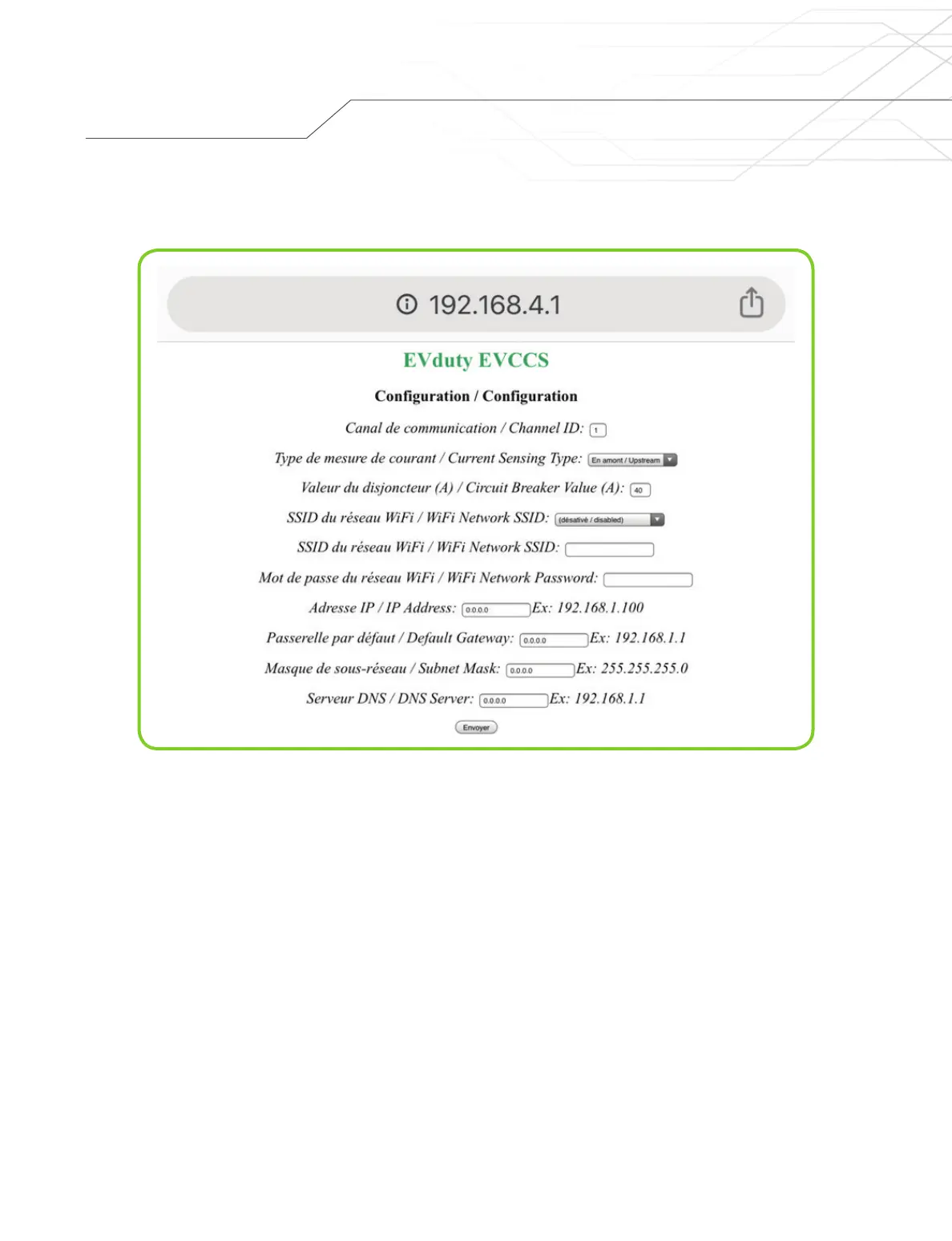

Figure8: EVCCS module configuration – Configuration
a) Channel ID
Selecting the channel ID between the EVCCS module and the EVduty EVC30 charging station(s).
Possible value: between 1 and 20
Default value: 1
NOTE: If multiple EVCCS modules are used on the same LAN, a different channel ID
must be given for each EVCCS module.
b) Current Sensing Type
Refer to the "Current sensing type" section.
Possible value: "Upstream" or "Parallel"
Default value: "Upstream"
c) Circuit Breaker Value (A)
The value of the circuit breaker protecting the circuit on which the current sensors are physically installed.
Possible value: between 10 and 200
Default value: 40
