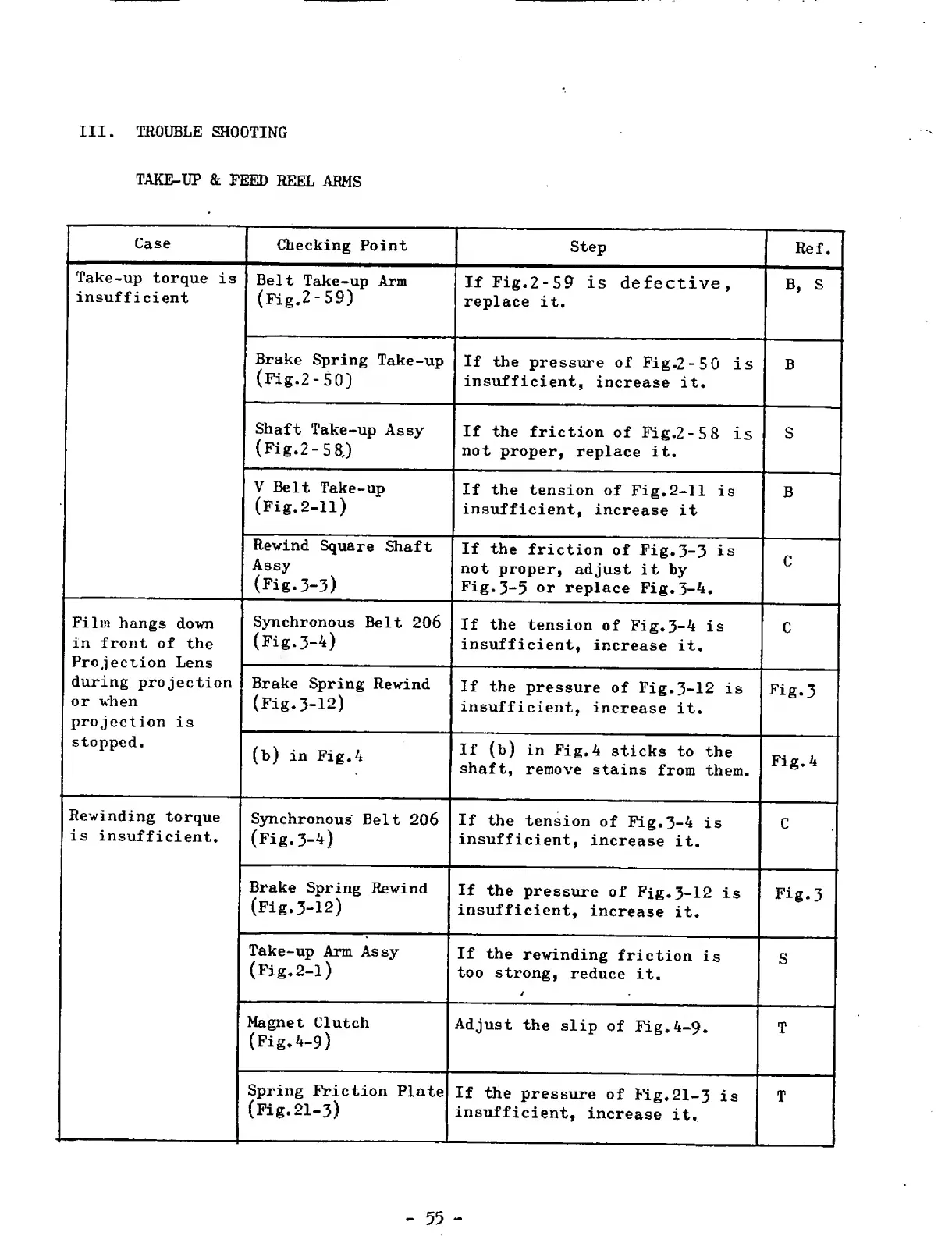

III. TROUBLE SHOOTING
TAKE-UP & FEED REEL ARMS
Case
Checking Point
Step
Ref.
Take-up torque is
insufficient
Belt Take-up Arm
(Pig.2-59)
If Fig.2-59 is defective,
replace it.
B, S
Brake Spring Take-up
(Fig.2 - 50)
If the pressure of Fig.2-50 is
insufficient, increase it.
B
Shaft Take-up Assy
(Fig.2 - 5 8,)
If the friction of Fig.2-58 is
not proper, replace it.
S
V Belt Take-up
(Fig.2-ll)
If the tension of Fig.2-11 is
insufficient, increase it
B
Rewind Square Shaft
Assy
(Fig.3-3)
If the friction of Fig.3-3 is
not proper, adjust it by
Fig.3-5 or replace Fig.3-4.
C
Film hangs down
in front of the
Projection Lens
during projection
or when
projection is
Synchronous Belt 206
(Fig.3-4)
If the tension of Fig.3-4 is
insufficient, increase it.
c
Brake Spring Rewind
(Fig.3-12)
If the pressure of Fig.3-12 is
insufficient, increase it.
Fig. 3
stopped.
(b) in Fig.4
If (b) in Fig,4 sticks to the
shaft, remove stains from them.
Fig. 4
Rewinding torque
is insufficient.
Synchronous Belt 206
(Fig.3-4)
If the tension of Fig.3-4 is
insufficient, increase it.
C
Brake Spring Rewind
(Fig.3-12)
If the pressure of Fig.3-12 is
insufficient, increase it.
Fig. 3
Take-up Arm Assy
(Fig. 2-1)
If the rewinding friction is
too strong, reduce it.
i
s
Magnet Clutch
(Fig.4-9)
Adjust the slip of Fig.4-9.
T
Spring Friction Plate
(Fig.21-3)
If the pressure of Fig.21-3 is
insufficient, increase it.
T
- 55 -
