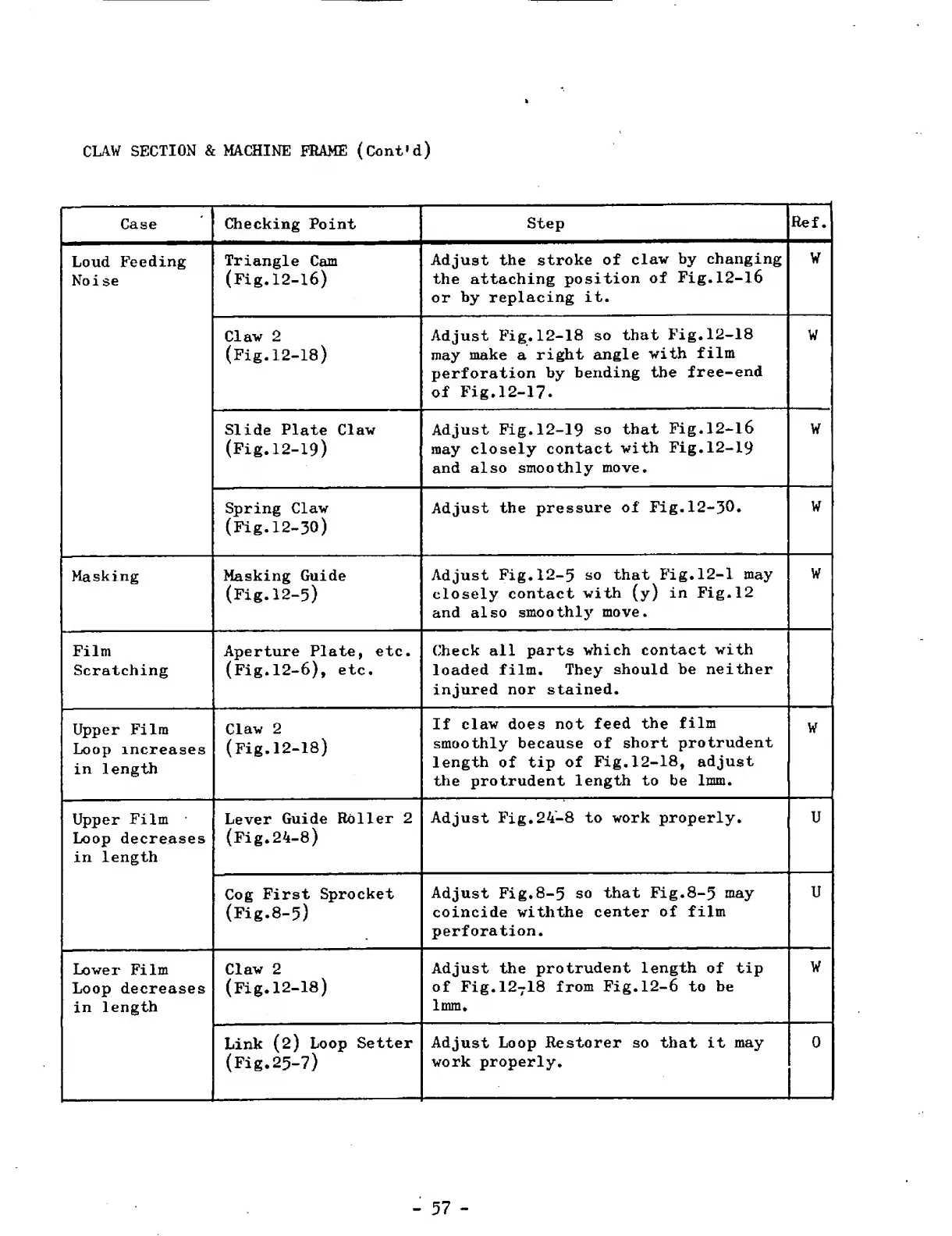

CLAW SECTION & MACHINE FRAME (Cont’d)
Case
Checking Point
Step
Ref.
Loud Feeding
Noise
Triangle Cam
(Fig.12-16)
Adjust the stroke of claw by changing
the attaching position of Fig.12-16
or by replacing it.
W
Claw 2
(Fig.12-18)
Adjust Fig.12-18 so that Fig.12-18
may make a right angle with film
perforation by bending the free-end
of Fig,12-17*
W
Slide Plate Claw
(Fig.12-19)
Adjust Fig.12-19 so that Fig.12-16
may closely contact with Fig.12-19
and also smoothly move.
w
Spring Claw
(Fig. 12-30)
Adjust the pressure of Fig.12-30.
w
Masking Masking Guide
(Fig.12-5)
Adjust Fig.12-5 so that Fig.12-1 may
closely contact with (y) in Fig.12
and also smoothly move.
w
Film
Scratching
Aperture Plate, etc.
(Fig.12-6), etc.
Check all parts which contact with
loaded film. They should be neither
injured nor stained.
1
Upper Film
Loop increases
in length
Claw 2
(Fig.12-18)
If claw does not feed the film
smoothly because of short protrudent
length of tip of Fig.12-18, adjust
the protrudent length to be 1 mm.
w
Upper Film
Loop decreases
in length
Lever Guide Roller 2
(Fig.24-8)
Adjust Fig,24-8 to work properly. u
Cog First Sprocket
(Fig.8-5)
Adjust Fig.8-5 so that Fig.8-5 may
coincide withthe center of film
perforation.
u
Lower Film
Loop decreases
in length
Claw 2
(Fig.12-18)
Adjust the protrudent length of tip
of Fig . 1 2 7 1 8 from Fig.12-6 to be
1 m m,
w
Link (2) Loop Setter
(Fig.25-7)
Adjust Loop Restorer so that it may
work properly.
0
