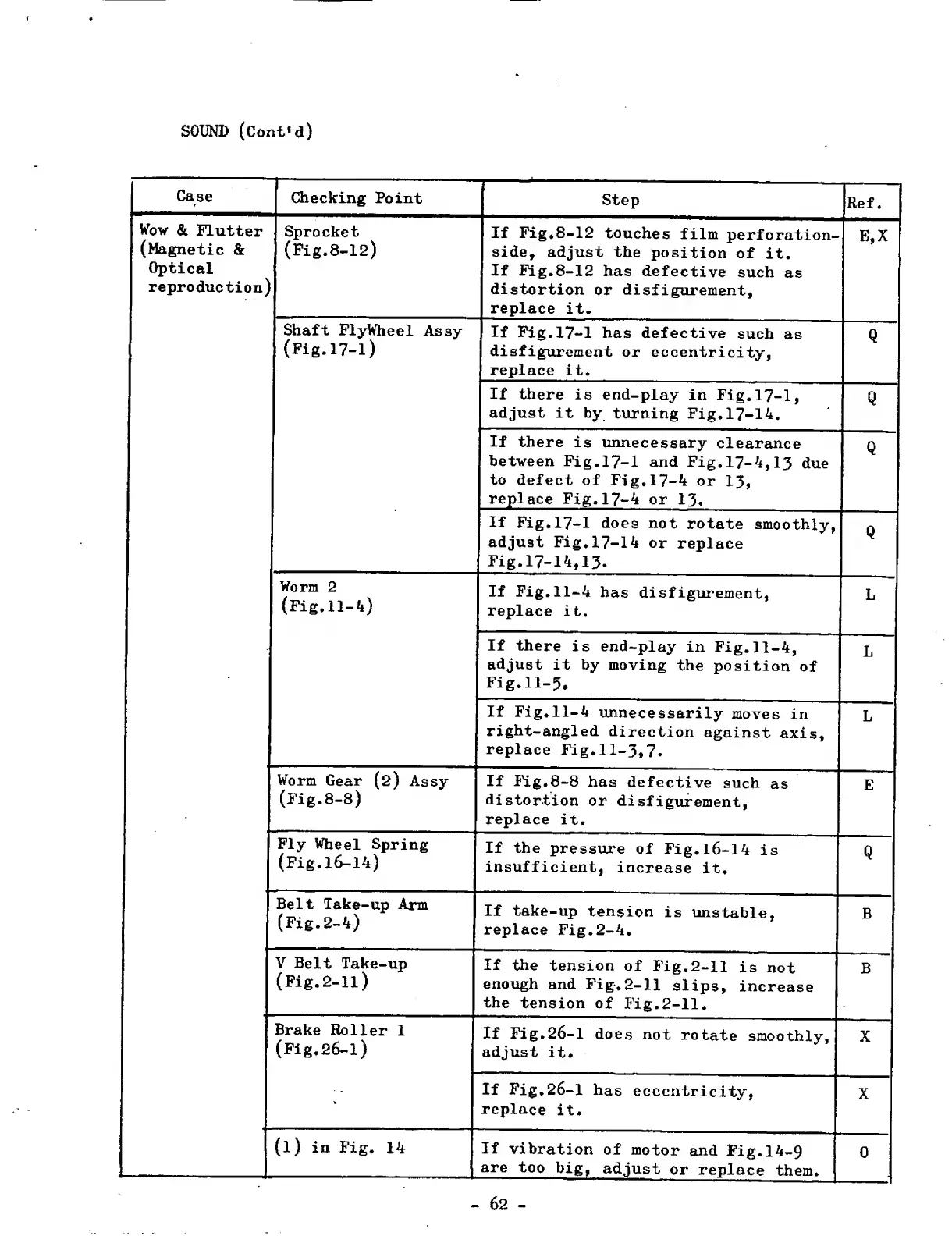

SOUND (Cont'd)
Case
Checking Point
Step
Ref.
Wow & Flutter
(Magnetic &
Optical
reproduction)
Sprocket
(Fig.8-12)
If Fig.8-12 touches film perforation-
side, adjust the position of it.
If Fig.8-12 has defective such as
distortion or disfigurement,
replace it.
E,X
Shaft FlyWheel Assy
(Fig.17-1)
If Fig.17-1 has defective such as
disfigurement or eccentricity,
replace it.
Q
If there is end-play in Fig.17-1,
adjust it by turning Fig.17-14.
Q
If there is unnecessary clearance
between Fig.17-1 and Fig.17-4,13 due
to defect of Fig,17-4 or 13,
replace Fig.17-4 or 13.
Q
If Fig.17-1 does not rotate smoothly,
adjust Fig,17-14 or replace
Fig.17-14,13.
Q
Worm 2
(Fig.11-4)
If Fig.11-4 has disfigurement,
replace it.
L
If there is end-play in Fig.11-4,
adjust it by moving the position of
Fig.11-5.
L
If Fig.11-4 unnecessarily moves in
right-angled direction against axis,
replace Fig.11-3,7.
L
Worm Gear (2) Assy
(Fig.8-8)
If Fig.8-8 has defective such as
distortion or disfigurement,
replace it.
E
Fly Wheel Spring
(Fig.16-14)
If the pressure of Fig.16-14 is
insufficient, increase it.
Q
Belt Take-up Arm
(Fig.2-4)
If take-up tension is unstable,
replace Fig.2-4.
B
V Belt Take-up
(Fig. 2-11)
If the tension of Fig.2-11 is not
enough and Fig.2-11 slips, increase
the tension of Fig.2-11.
B
Brake Roller 1
(Fig.26-1)
If Fig.26 -1 does not rotate smoothly,
adjust it.
X
*
If Fig.26-1 has eccentricity,
replace it.
X
(l) in Fig. 14
If vibration of motor and Fig.14-9
are too big, adjust or replace them.
0
- 62 -
