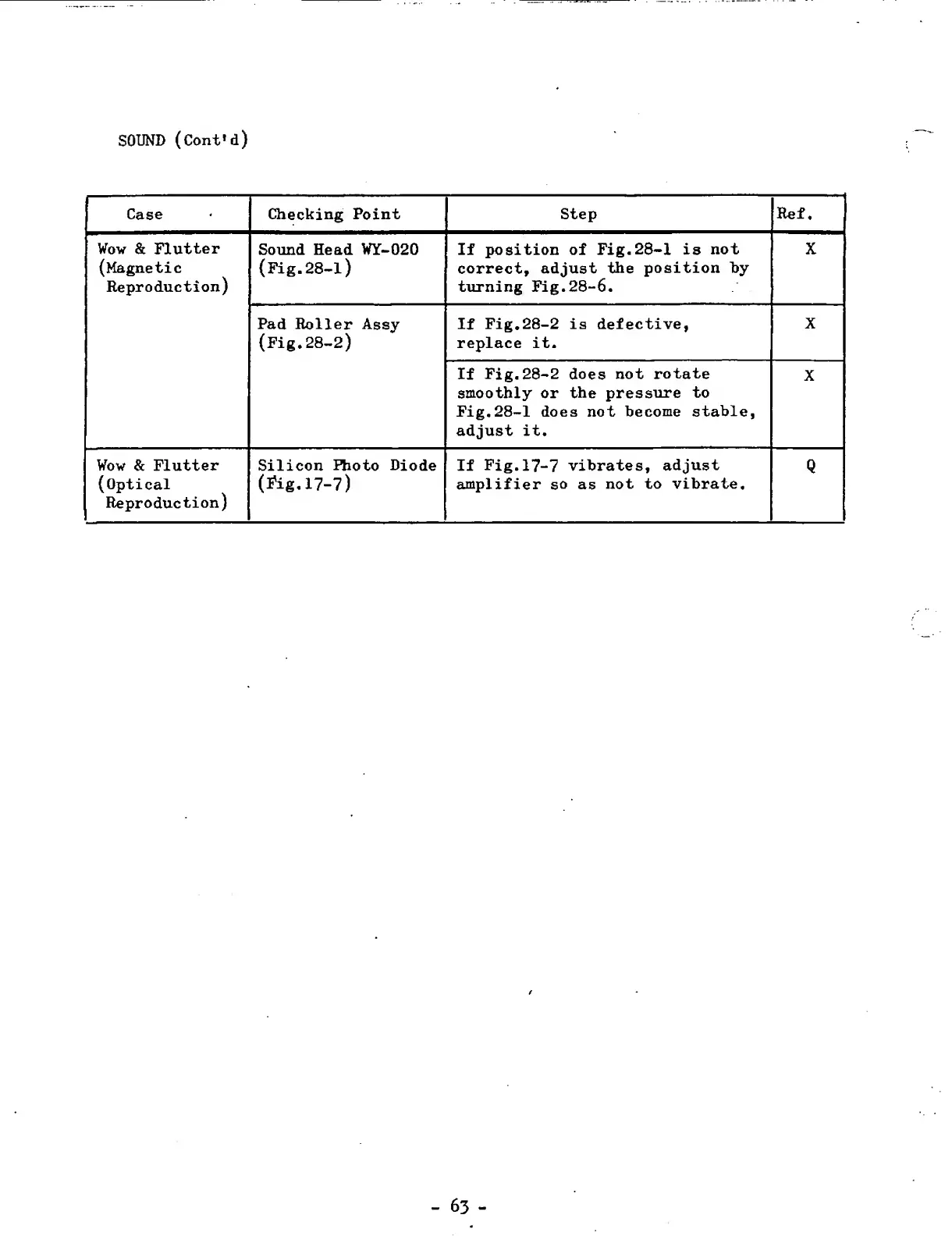

SOUND (Cont’d)
Case Checking Point Step Ref.
Wow & Flutter
(Magnetic
Reproduction)
Sound Head WY-020
(Fig.28-l)
If position of Fig.28-1 is not
correct, adjust the position "by
turning Fig.28-6.
X
Pad Roller Assy
(Fig.28-2)
If Fig,28-2 is defective,
replace it.
X
If Fig.28-2 does not rotate
smoothly or the pressure to
Fig.28-1 does not become stable,
adjust it.
X
Wow & Flutter
(Optical
Reproduction)
Silicon ihoto Diode
(Fig.17-7)
If Fig.17-7 vibrates, adjust
amplifier so as not to vibrate.
Q
