User Manual: 1002L, 1502L, 2002L
UM600012 Rev F, Page 9 of 24
Chapter 3: Mounting
Rear VESA Mount

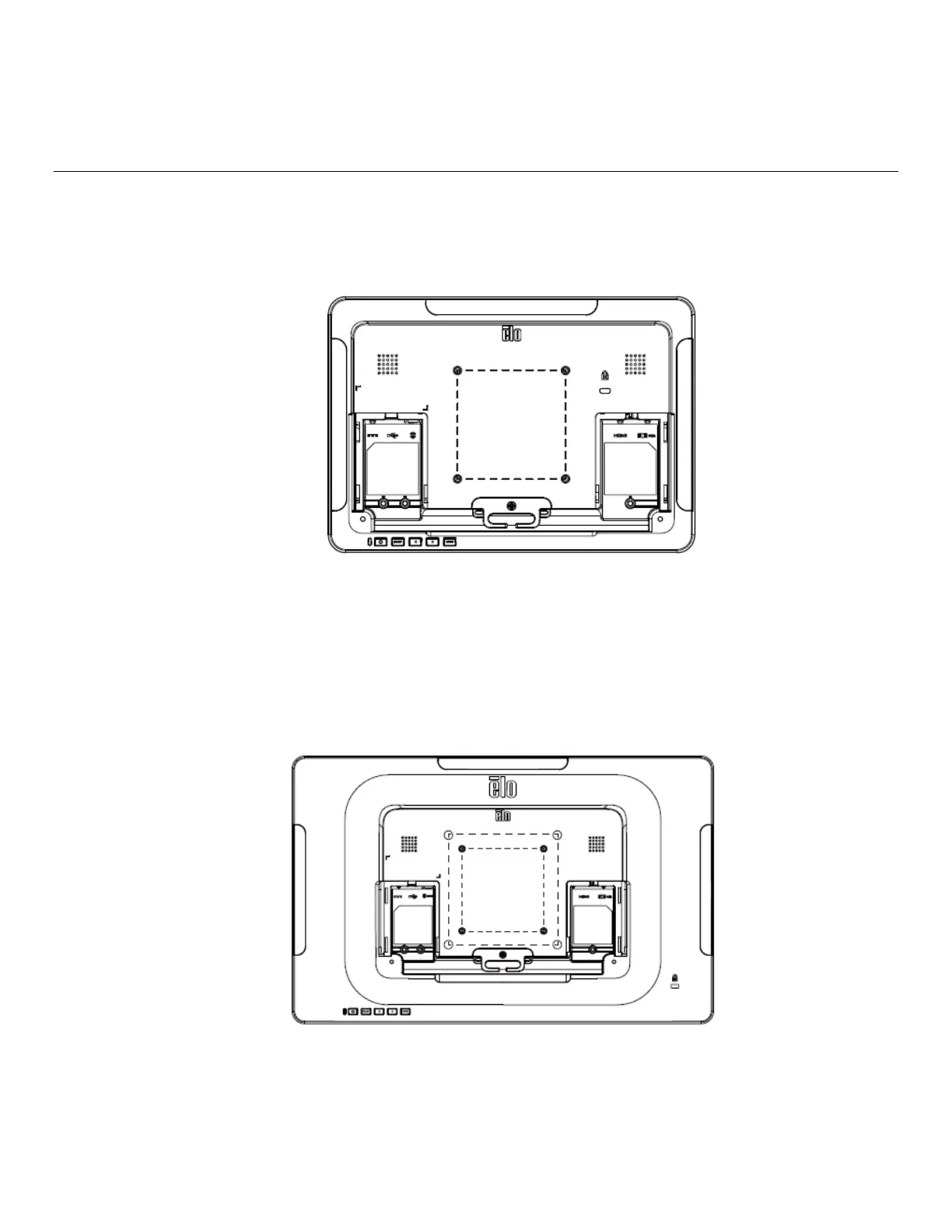

For the 1002L touchmonitor, a four-hole 75x75mm and 100x100mm mounting pattern
available.The VESA FDMI-compliant counting is coded: VESA MIS-B, 75, C and VESA MIS-B,
100, C.
For the 1502L and 2002L touchmonitors, a four-hole 75x75mm and 100x100mm mounting
pattern for M4 screws is provided on the rear of the monitor. Remove the stand using a Phillips
screwdriver to access this mounting interface. The VESA FDMI-compliant counting is coded:
VESA MIS-B, 75, C and VESA MIS-B, 100, C.
.
