User Manual: Interactive Digital Signage
SW602296 Rev A, Page 20 of 39
Mating connectors can be found at: www.molex.com
Mates with the 5557 Mini-Fit Jr. Receptacle Housing
Note: Monitor firmware must be specifically written to accommodate the specific use case of the
GPIO port.
Please contact Elo customer service for firmware information.
Near Field Communication Functionality (Optional Peripheral)
The following NFC protocols are supported:
ISO-14443-A
ISO-14443-B
1.1 Interfaces
1.1.1 RS232 and USB2.0 interfaces by use of corresponding cables.
1.1.2 USB 2.0 compliant interface configurable to support USB HID: Keyboard, or USB
Virtual COM.
1.1.3 RS232 data output baud rate up to 115.2K BPS
1.2 Payment Applications
1.2.1 American Express ExpressPay
1.2.2 Discover ZIP
1.2.3 MasterCard PayPass/MCHIP
1.2.4 Visa MSD/qVSDC
1.2.5 Google wallet
1.2.6 ISIS wallet
1.3 MIFARE Applications
1.3.1 Read/Write of MIFARE Plus/Classic/Ultralight/DESFire cards
1.3.2 Support MIFARE higher baud rate up to 424KHz
Barcode Scanner Functionality (Optional Peripheral)
This barcode incorporates a proximity detector to activate the Bar Code Scanner. It features an
outstanding scanning performance of up to 270 scans per second.

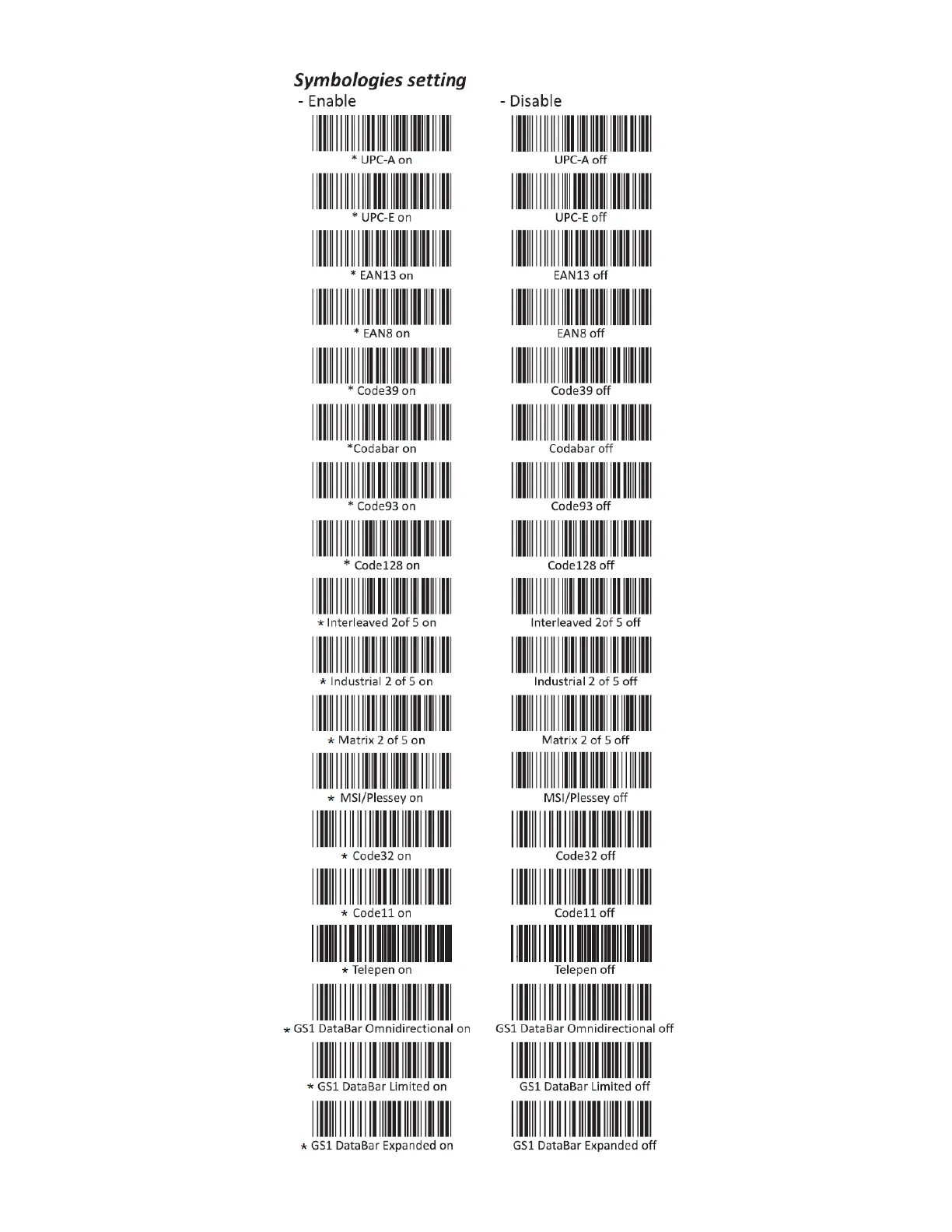

Below are the supported Bar Code types and settings.
Note: Telepen symbology only supports ASCII code.
