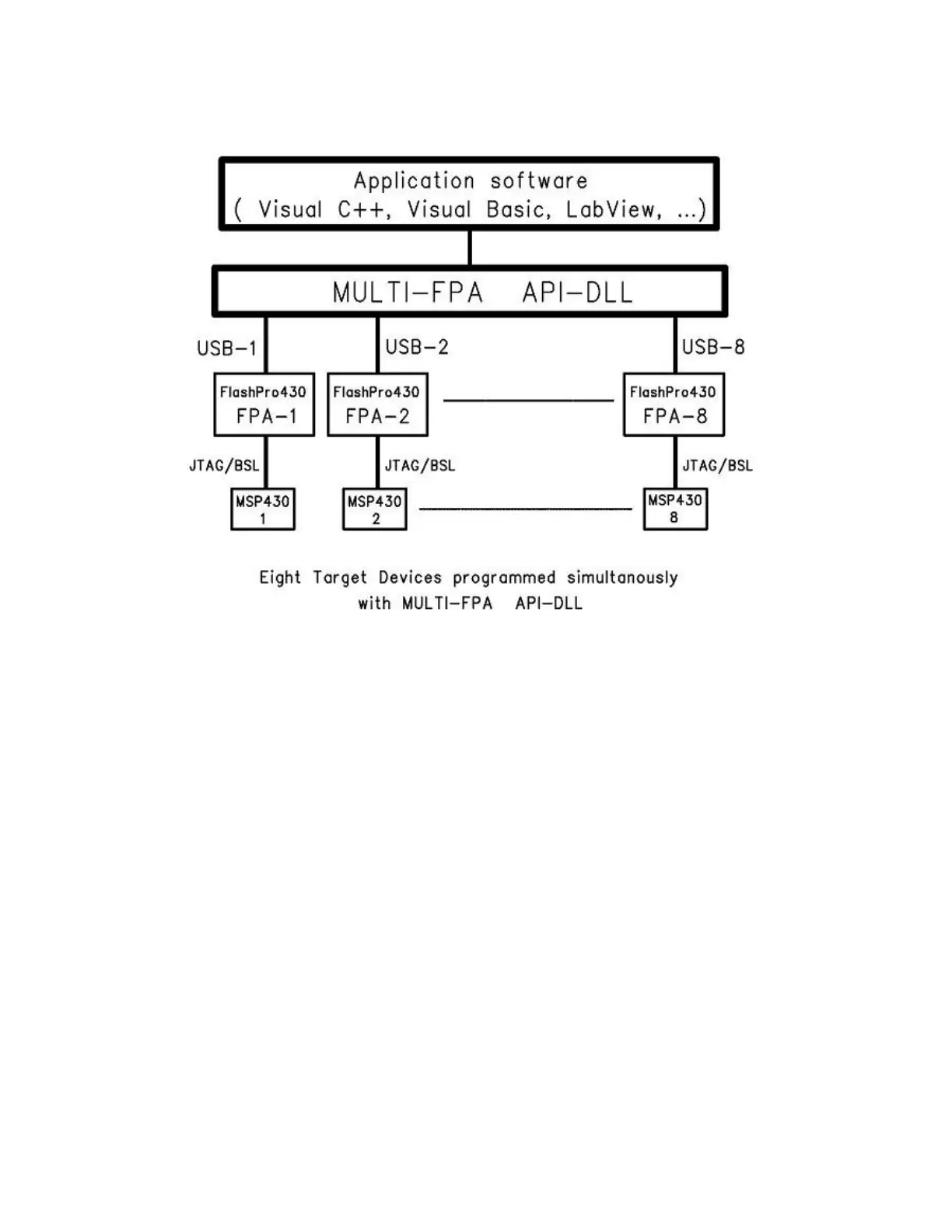

Block diagram of the Multi-FPA application DLL is presented on the Figure 1.2.
To support this new Multi-FPA API-DLL feature, the software package contains seventeen dll files
- the Multi-FPA API-DLL selector
- sixteen standard single FPAs API-DLLs (or one UIF API-DLL)
Figure 1.3 shows the logical connections between these dll files.
The main Multi-FPA file (FPA-selector - MSP430FPA.DLL) allows to transfer API-DLL functions
coming from application software to desired single application dll (MSP430FPA1.DLL to
MSP430FPA64.DLL or MSPFET430UIF1.DLL).
The MSP430FPA.DLL file is transparent for all API-DLL functions implemented in the single FPA
API-DLLs functions. Desired destination FPA can be selected using the function
F_Set_FPA_index( fpa );
where the
fpa = 1 to 64 when only one desired FPA required to be selected
or fpa = 0 when ALL active FPAs should be selected.
