5.0 INSTALLATION - ELECTRICAL REQUIREMENTS
WARNING:
5.1 This appliance must be earthed.
5.2 The installation, supply cable and circuit protection must conform to the latest
BS7671 ‘Requirements for electrical installations’ (IEE Wiring Regulations).
5.3 The appliance must only be connected to a 230/240 V ac supply. A double pole
isolating switch, with a contact separation of at least 3mm in each pole, must
be incorporated in the electrical supply. The supply should be fused 13Amp.
5.4 If the EBW25 is to be unused for signifi cant periods of time running
costs can be reduced by switching the unit off. It is recommended that this is
done automatically by incorporating a suitable timeswitch in the supply to the
unit. The use of accessory no. 95 970 124 is recommended. The timeswitch
can then be set to switch the unit on for a suitable period to allow it to heat up
before it is next to be used. Note: A timeswitch must be capable of switching
13 Amps resistive load.
ELECTRONIC CONTROL
L

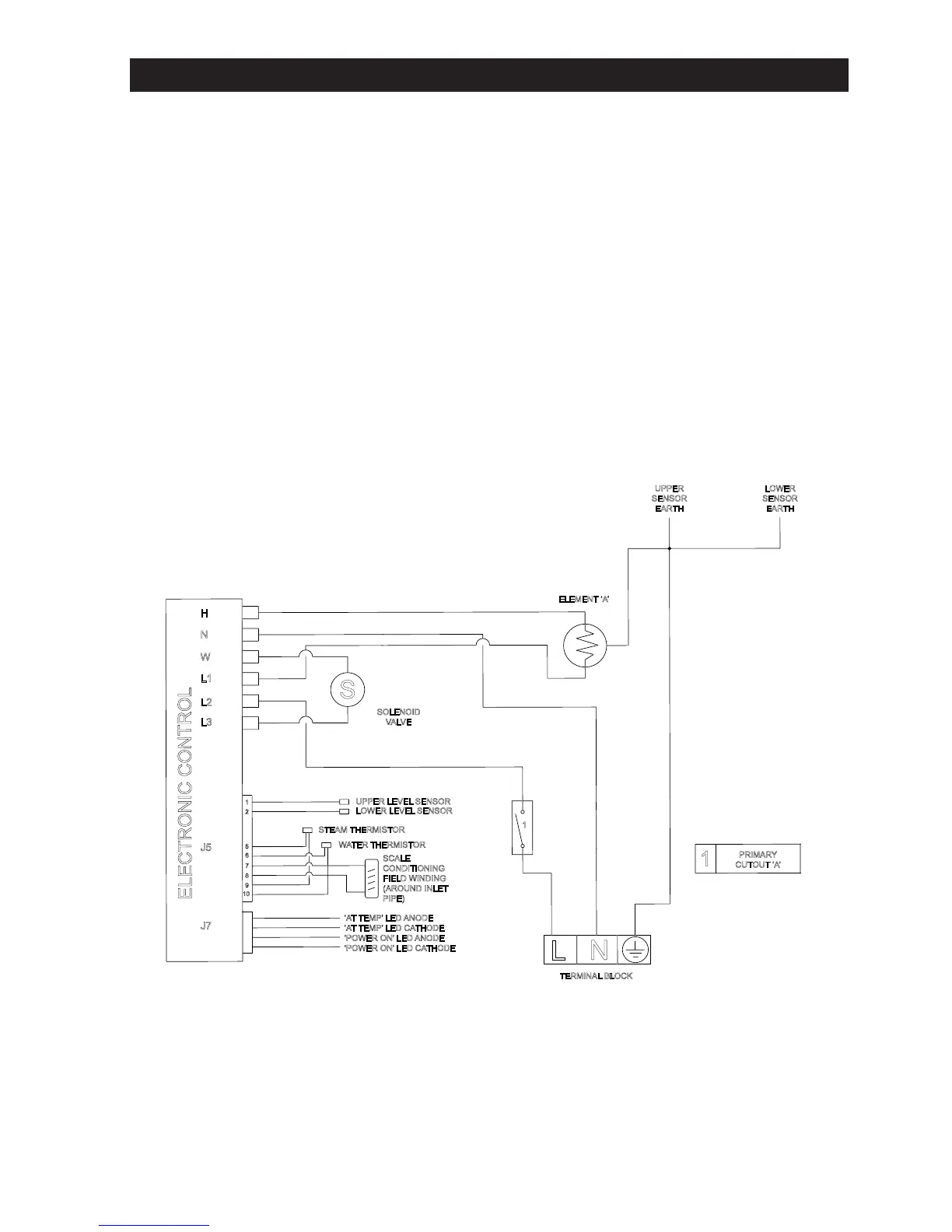

Figure 2: Wiring Diagram (2.5kW)
