Elster ALPHA - Page 11

ALPHA meter
IL42-4001S
11
4 wire wye meters
Do not disassemble the meter chassis or the electronic module from the meter chassis with power
present. Doing so could expose you to dangerous voltages, resulting in equipment damage, personal
injury, or death.
1
2
3
N
N
2
1
3

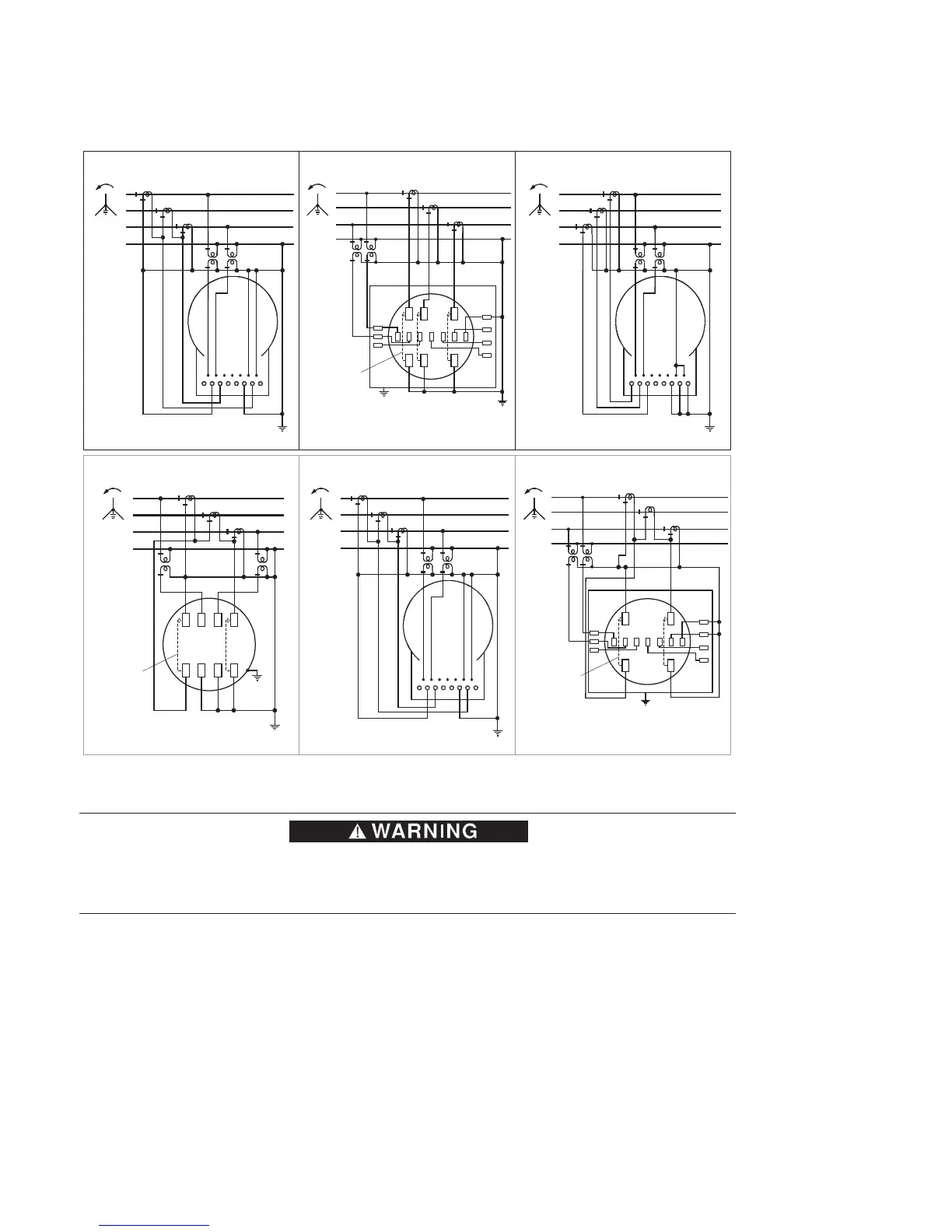

Form 35A
3 phase, 4 wire wye, 3 CTs, 0 or 2 PTs
20E01
CIRCUIT
CLOSING
DEVICE
KZY
1
2
3
N
N
2
1
3
Form 36S
3 phase, 4 wire wye, 3 CTs, 0 or 2 PTs
23E01
1
2
3
N
N
2
1
3
Form 36A
3 phase, 4 wire wye, 3 CTs, 0 or 2 PTs
20E01
Form 56S
3 phase, 4 wire wye, 3 CTs, 0 or 2 PTs
N
2
1
3
CIRCUIT
CLOSING
DEVICE
KZY
1
2
3
N
27A06
CIRCUIT
CLOSING
DEVICE
1
2
3
N
N
2
1
3
27A06
Form 45S
3 phase, 4 wire wye, 3 CTs, 0 or 2 PTs
1
2
3
N
N
2
1
3
Form 45A
3 phase, 4 wire wye, 3 CTs, 0 or 2 PTs
27A06
