Elster ALPHA - Page 14

ALPHA meter
IL42-4001S
14

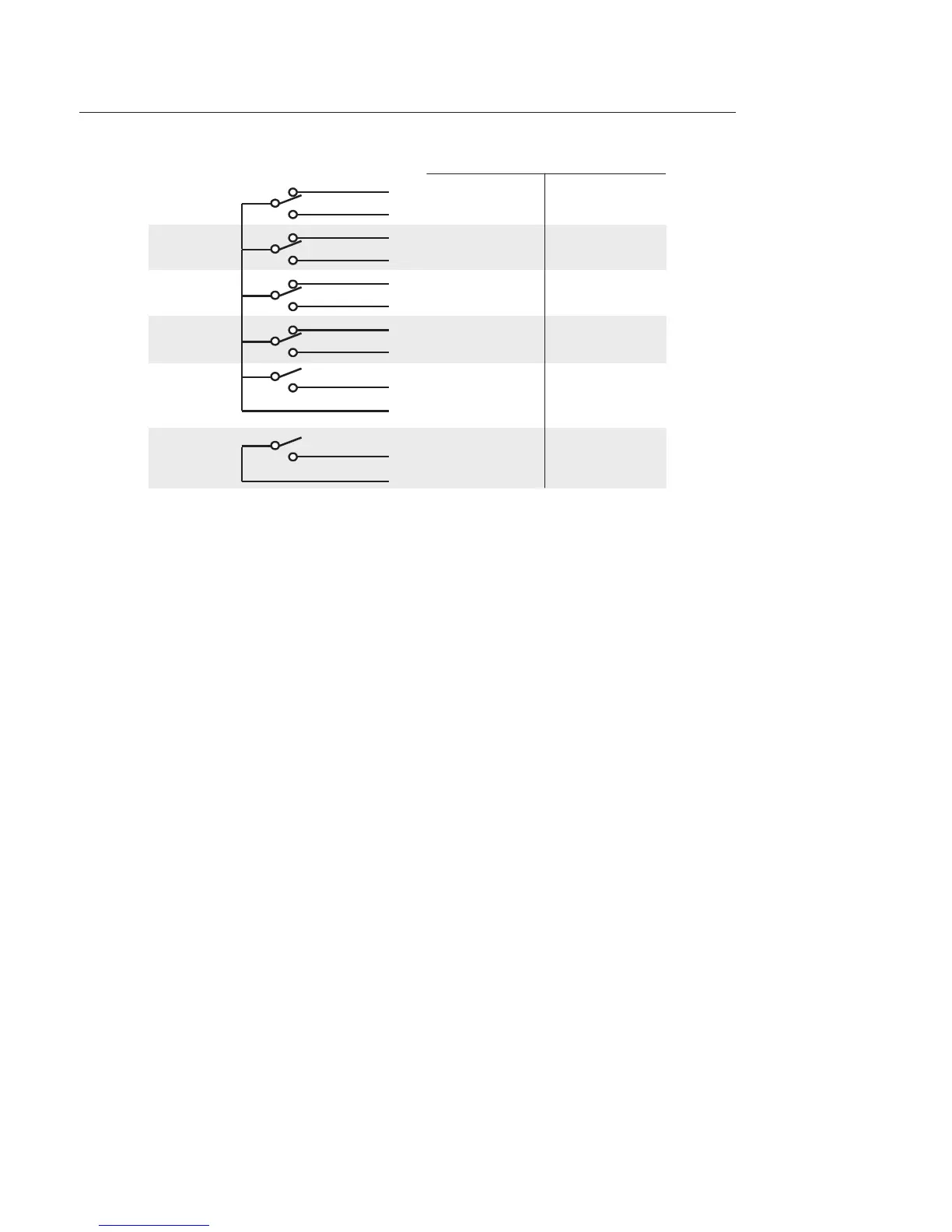

Figure 4. Color coding for 6 relays with 12 output leads
COMMON Green
NO Brown
COMMON Red
NO Orange
NO Wht/Brn
NC Gray
NO White
NC Violet
NO Blue
NC Wht/Blk
NO Black
NC Yellow
LC1
LC2
RELAY A
RELAY B
RELAY C
RELAY D
RELAY E
RELAY F
ALPHA &
ALPHA Plus
A3 ALPHA
Y1
Z1
Y2
Z2
Y3
Z3
Y4
Z4
EOI
K
KYZ1
kWh delivered
Programmable as
KYZ2, LC, or EOI
KYZ3
kWh received
KYZ4
kVARh/kVAh received
EOI
Load control
Programmable
Programmable
Programmable
Programmable
Programmable
Programmable
