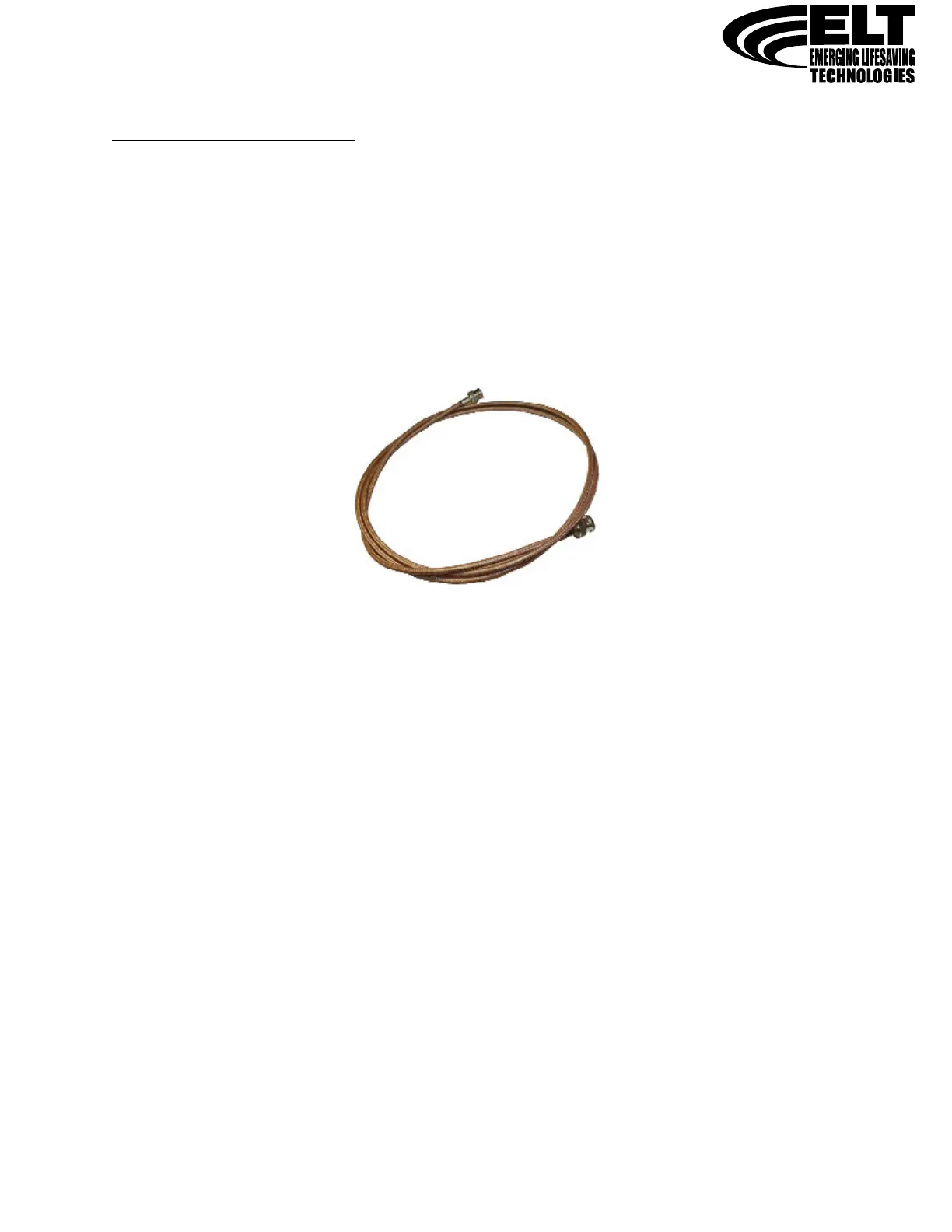

5.7.4 Connect RF Coaxial Cable
Coaxes have been supplied with the installation kit. It is critical to the function and accuracy of
this unit that both the 406 and the GPS signals are not impeded in any way. If the cables are not
of sufficient length for your application please contact customer service for further instructions.
Coaxes should never be bent at 90
0
angles. You can stow extra harnesses by coiling the coax in
rings of no less than a 6” diameter. Avoid over-tightening clamps or tie-wraps as this will
change the electrical characteristics of any coax. See AC 43-13-1B Chapter 11.
