Eltax AVR-900 User Manual

11

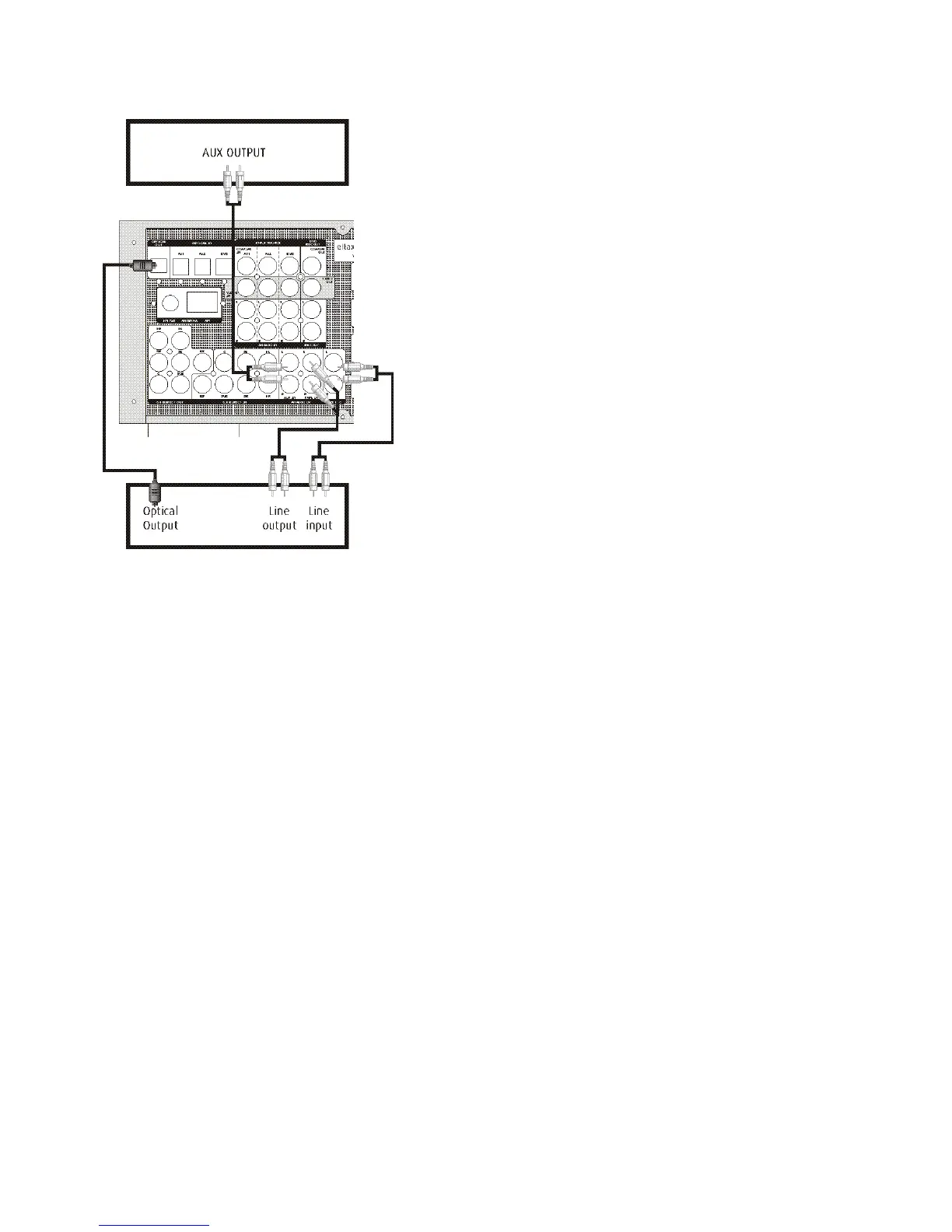

CONNECTION
CD, TAPE JACKS
CD, TAPE jacks
Connect the component with RCA to RCA cords.
Make sure to connect:
White plug to white jack (L: left)
Red plug to red jack (R: right)
DIGITAL IN/OUT terminals
If the CD player or MD player has digital outputs,
connect the component with coaxial cables or optical
cables.
DIGITAL IN to DIGITAL OUT (CD, etc.)
DIGITAL OUT to DIGITAL IN (MD, etc.)
Connect to any one of the DIGITAL IN terminals. When
using DIGITAL OPTICAL IN terminals, remove the caps
from the terminals.
When you do not use them, leave the caps in place.
To record digitally, connect the source (CD player, etc,) to
DIGITAL IN and the recorder (MD, etc.) to
DIGITAL OUT.
