8
CONNECTION

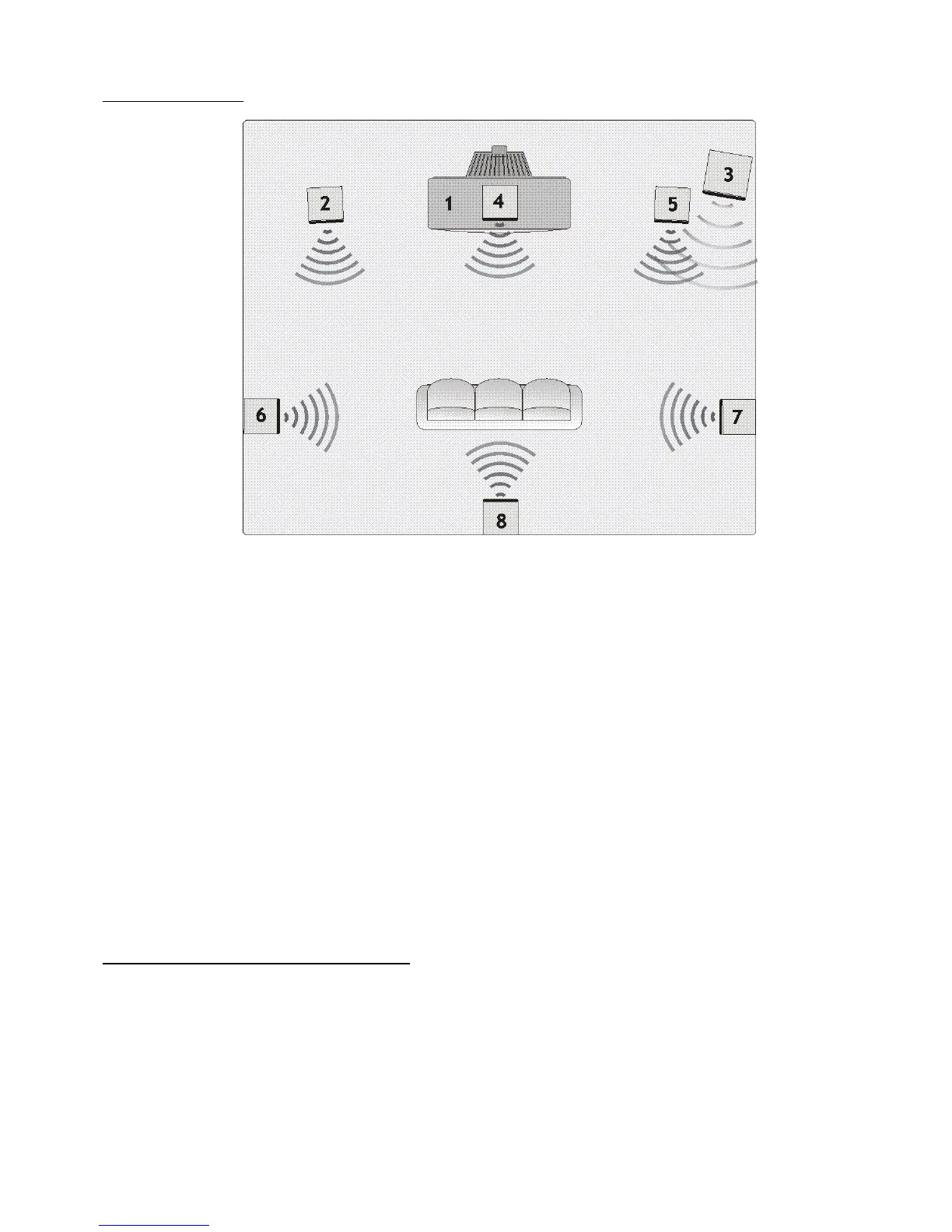

Speakers connecting
1. TV or Screen 2. Front Left Speaker 3. Subwoofer
4. Center Speaker 5. Front Right Speaker 6. Surround Left Speaker
7. Surround Right Speaker 8. Surround Back Speaker 9. Listening Position
Standard speaker setup for surround sound
• Front right and left speakers
These are the main speakers providing the front stereo effect of the sound image.
• Center speaker
Produces a rich sound image by serving as a sound source for the front right and left speakers and enhancing the
sonic movement.
• Surround right and left speakers
Adds three-dimensional sonic movement and produces environmental sound associated with the background and
effect sound for each scene.
• Surround back speaker
Required for enjoying Dolby Digital EX or DTS-ES audio.
Improves the quality of sound effects and the realistic acoustics.
• Subwoofer
Produces powerful and heavy bass.
Speaker placement
Ideal speaker placement varies depending on the size of your room and the wall coverings. Here, only typical examples
of speaker placement and recommendations are shown.
Important points regarding speaker placement
Front right and left speakers and center speaker
● Place these three speakers all at the same height.
● Place each speaker so that it is aimed at the location of the listener’s ears when at the listening position.
● Place front and right speakers at the same distance from the listening position.
Surround left and right speakers
Place these speakers so that their height is 1 meter (3 feet) higher than that of the listener’s ears.
Surround back speaker
Place this speaker so that its height is 1 meter (3 feet) higher than that of the listener’s ears.
Subwoofer
A subwoofer is recommended for the highest bass effect.
