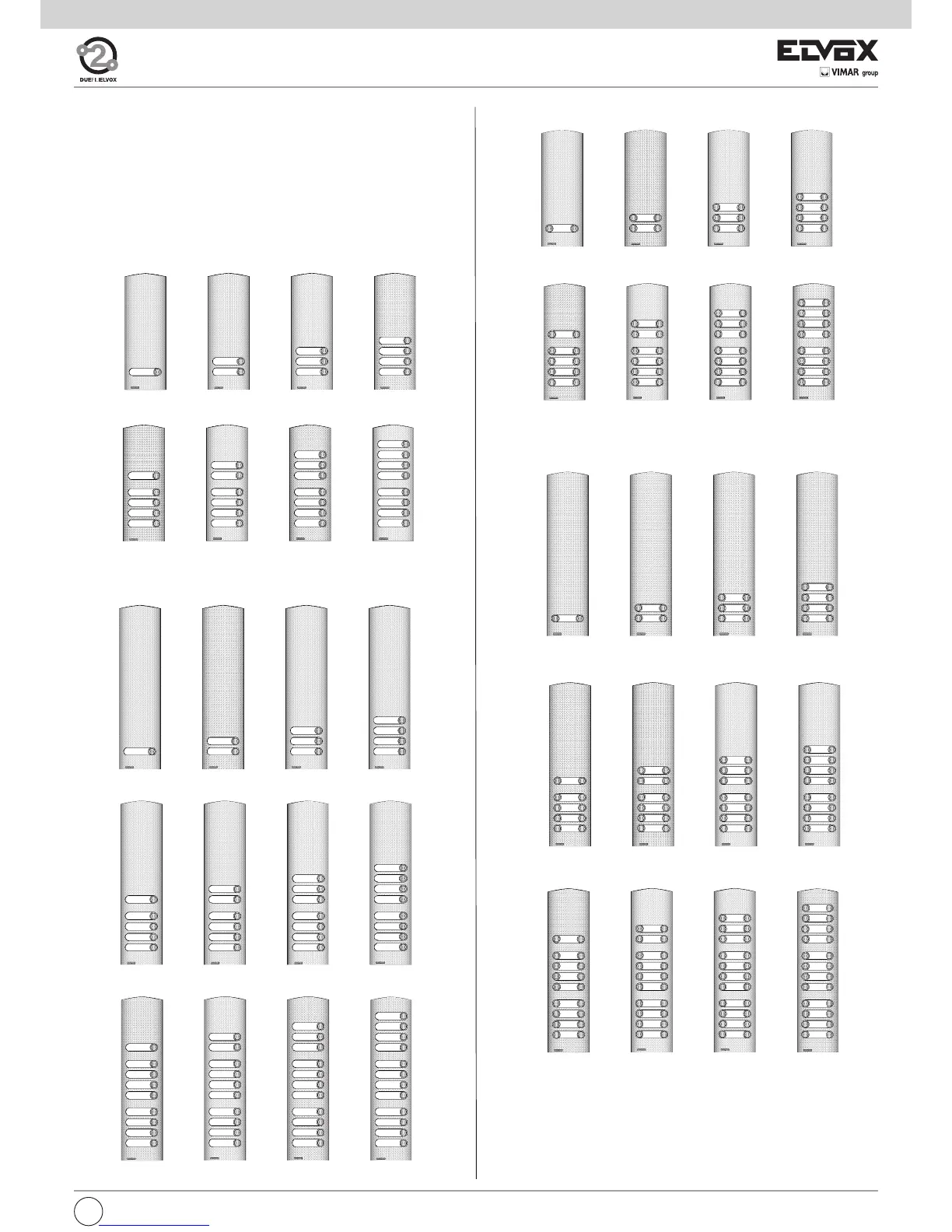

ADDITIONAL ENTRANCE PANELS
The additional entrance panels with traditional type push-buttons are con-
nected to the electronic base units type 12F3 and 12F5 to extend the num-
ber of push-buttons. Modules type 12TS (for entrance panels with
push-buttons in single row) or type 12TD (for push-buttons in double row),
which are inserted in the frames under the plates, are connected one after
the other by means of the wiring supplied with the modules. They are then
connected to the standard electronic unit by means of the wiring in the
lower section of the unit Fig .2). Modules type 12TS, 12TD are not sup-
plied as standard with the plates.
Art. 1252/D
Art. 1254/D Art. 1256/D
Art. 1258/D
Art. 1280/D
Art. 1282/D
Art. 1284/D
Art. 1286/D
Art. 1262/D
Art. 1264/D Art. 1266/D
Art. 1268/D
Art. 1270/D
Art. 1272/D Art. 1274/D
Art. 1276/D
Art. 1278/D
Art. 1290/D
Art. 1292/D
Art. 1294/D
Art. 1261
Art. 1262 Art. 1263 Art. 1264
Art. 1265 Art. 1266
Art. 1267 Art. 1268
Art. 1269 Art. 1270 Art. 1271
Art. 1272
Art. 1251
Art. 1252 Art. 1253
Art. 1254
Art. 1255
Art. 1256
Art. 1257 Art. 1258
- Two-module additional entrance panels
- Three-module additional entrance panels
- Three-module entrance panels with push-buttons in double row
- Two-module entrance panels with push-buttons in double row
5
GB
