Attachment of the FC-81h or FC-121h Horizontal Flying Cradles

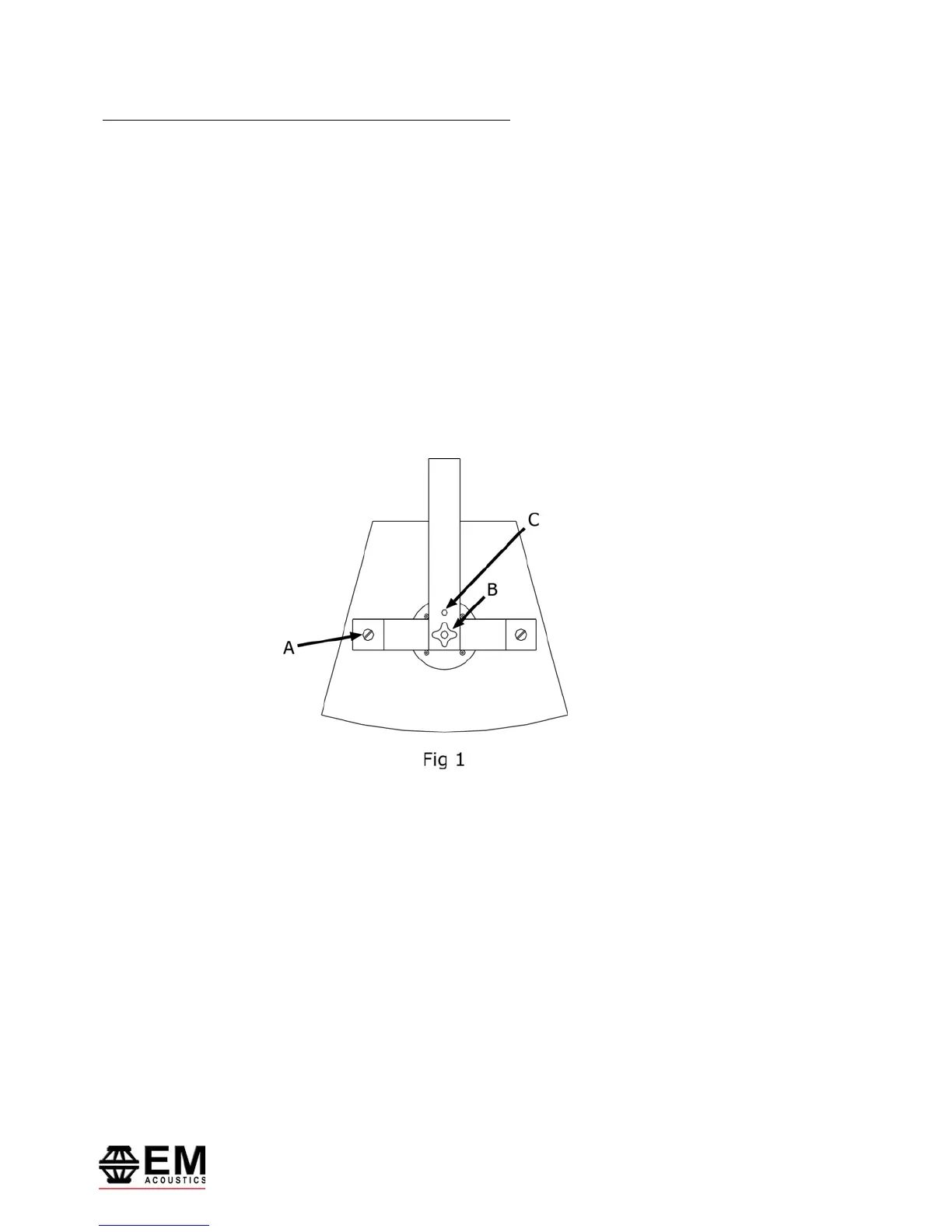

The EMS-121 enclosure is shown in the drawing, however the technique is the same for both the EMS-81 and EMS-
121 enclosures.
Remove the M10 countersunk bolts on the top & bottom of the enclosure (marked “A” in Fig 1), position the end
sections of the flying cradle and reinstate the bolts. Bolt the chosen attachment method to the top of the cradle,
and secure the enclosure onto the suspension point or bar. As with the vertical cradles, a secondary safety point
should be used.
Once the enclosure is suspended, release the plastic knurled knobs (marked “B” in Fig 1) on each side of the cradle
and position the enclosure as desired. Once the enclosure is in place, lock off the attachment device to prevent
the enclosure rotating, and use the M5 locking bolts (marked “C” in Fig 1) to secure completely.
