EM TEST dito Short Manual

EM Test ditoControl
Short form Introduction V 2.04 7 / 15
1.5 dito: Other menus
Quick Zap Menu
In Quick Zap Menu all parameters can be selected individually.
During a running test :the voltage can be increased by pushing
decreases the voltage
increases the voltage
changes the polarity

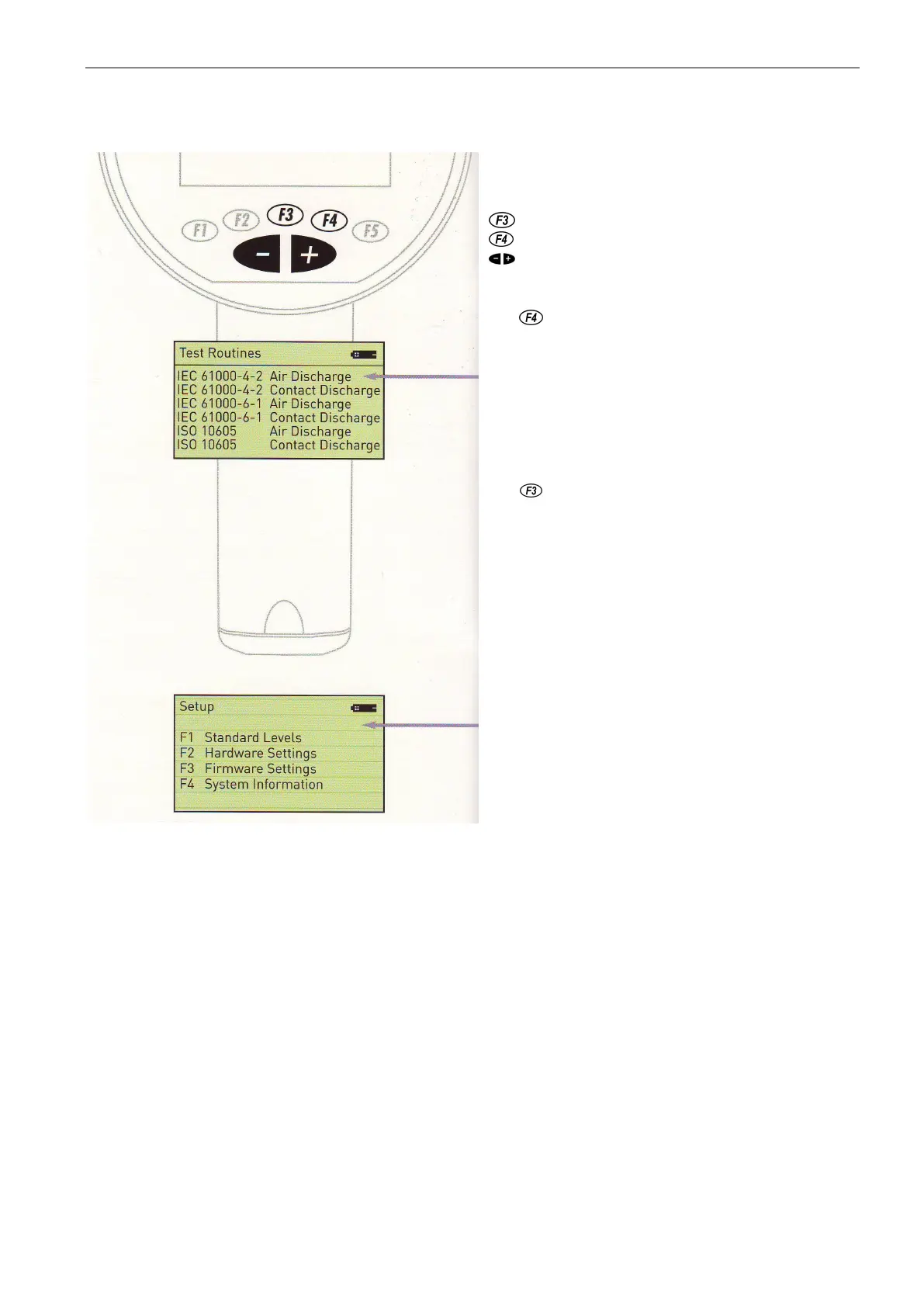

Test Routines Menu
With the user can enter the menu Test Routines. 8 prepro-
grammable test routines can be stored. dito is delivered with 6
standard routines.
The test routines can be programmed in the ditoControl soft-
ware which is available as an option. Via the optical interface
the test routines can be downloaded to dito. More information
please read in the dito and ditoControl manual.
Evaluation
With the user can enter the menu Evaluation . This menu
can be used to check the DUT for most sensitive test points.
The preferred method to find these test points is air discharge
AD ( discharge tip 3b ). Air discharges are continuously gener-
ated with a maximum repetition rate of 20Hz.
Contact mode CD ( discharge tip 3a ) is selected for long dura-
tion tests to apply a large number of repeatable discharges to a
specified test point. The preferred Trigger mode is Auto or
Continuous .
All parameters can be selected individually. During the evalua-
tion procedure, the operator can change the polarity and the
test voltage.
Setup
For detailed information related to the setup menu please read
the dito manual.
Firmware updates
Firmware updates can be downloaded via the optical interface.
