6
7

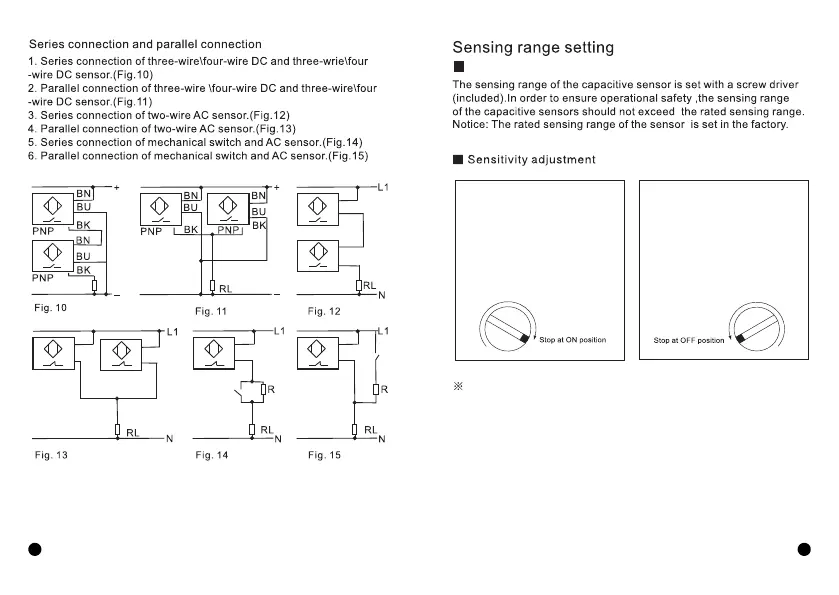

Adjusting the potentiometer clockwise is the maximum and
counterclockwise is the minimum. If adjusted slightly to the
left or right, it will not stop.
Sensitivity
B. Turn the sensitivity
potentiometer counterclockwise
within about 0.5 turns (until LED
turns off). Then the sensor
operation is set to OFF, and the
setting is complete.
A. When no detected object is
present in front of the capacitive
level sensor (empty level), turn
the sensitivity potentiometer
clockwise until the sensor runs
in a constant red LED state.
Then, the sensor operation is
set to ON."
