The sensor can be used for conductive or non-conductive liquids
such as water, pure water, oil, chemical liquids, corrosive liquids,
etc. It can also be used as liquid level detection or leakage sensor
to avoid liquid leakage.
1. Leakage of lubricating oil and hydraulic oil in mechanical equipment
Leakage of condensate liquid in semiconductor production
Leakage of chemical liquid at the pipe joint
Leakage of corrosive liquids such as sulfuric acid and alkali
Liquid flowing out from the chemical storage tank
Horizontal detection, large volume materials and liquids
2.
3.
4.
5.
6.
Application
Potentiometer
2. Electric connection
3. Red/Green LED
4. Four mounting holes
5. Sensing surface

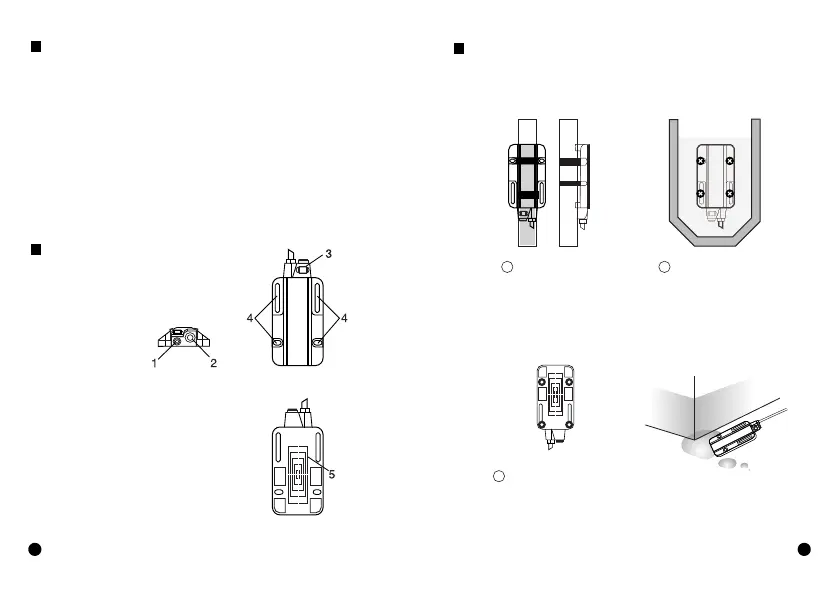

1.
Front view
Features
Detecting medium through wall
of container
(only used for non-metal container,
such as plastic and glass).
Function:
Back view
Mounting
fixed by the wire crossing the mounting holes of the sensor.
As the following picture, the sensor is surrounded on the pipe and
① wire mounting ② screws mounting
If used as a leakage sensor,
a pad can be mounted at the bottom
③ pad mounting
