19” LCD Color Monitor Emachine E19T5W
9

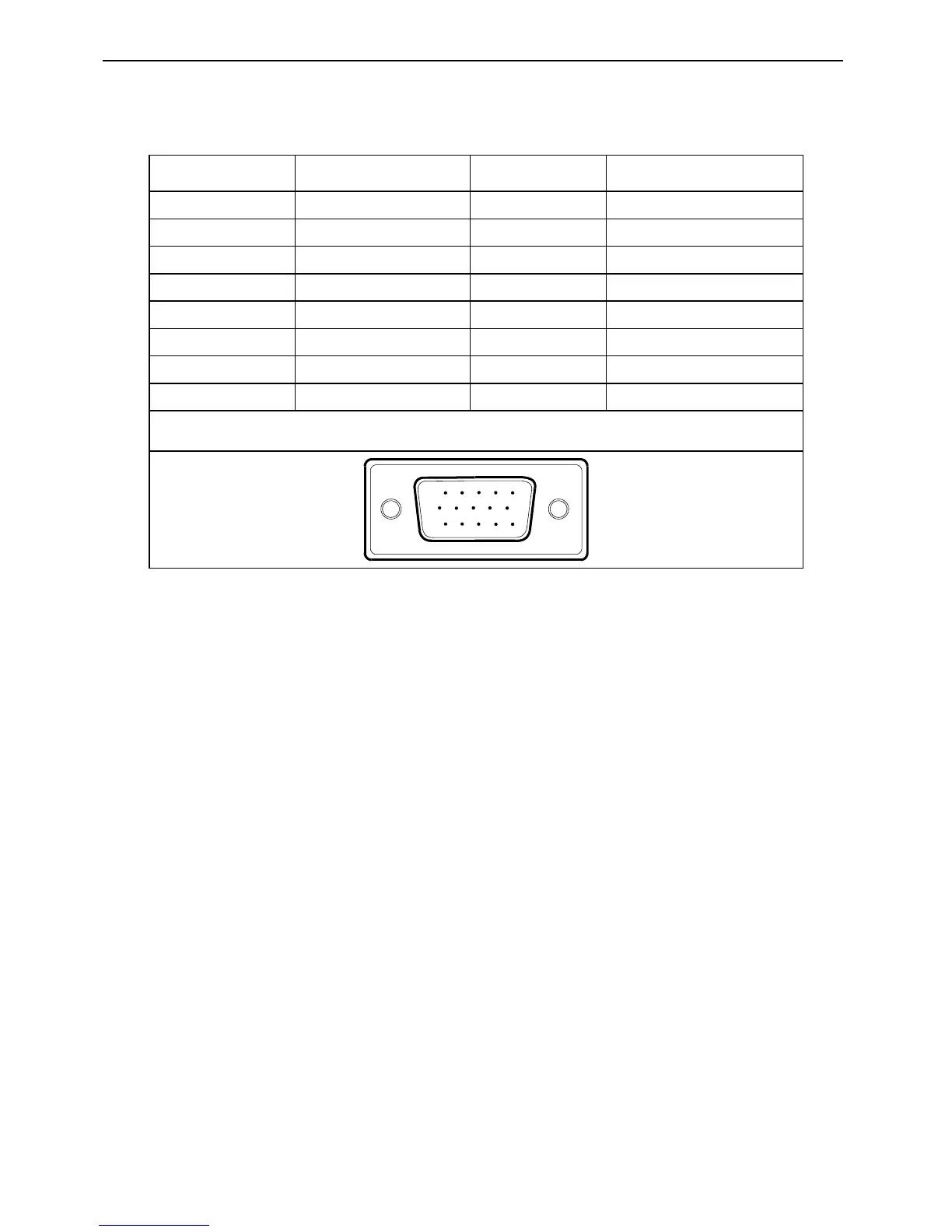

4. Input/Output Specification
4.1 Input Signal Connector
1. D-SUB connector
Pin No. Description Pin No. Description
1.
Red
9.
+ 5V
2.
Green
10.
Sync. GND
3.
Blue
11.
GND
4.
GND
12.
DDC-Serial Data
5.
Self Test
13.
H-Sync
6.
R-Return
14.
V-Sync
7.
G-Return
15.
DDC-Serial Clock
8.
B-Return
VGA connector layout
15
6
10
11 15
