EN 18 CONTROLS AND INSTRUMENTS
For mechanical drive models:

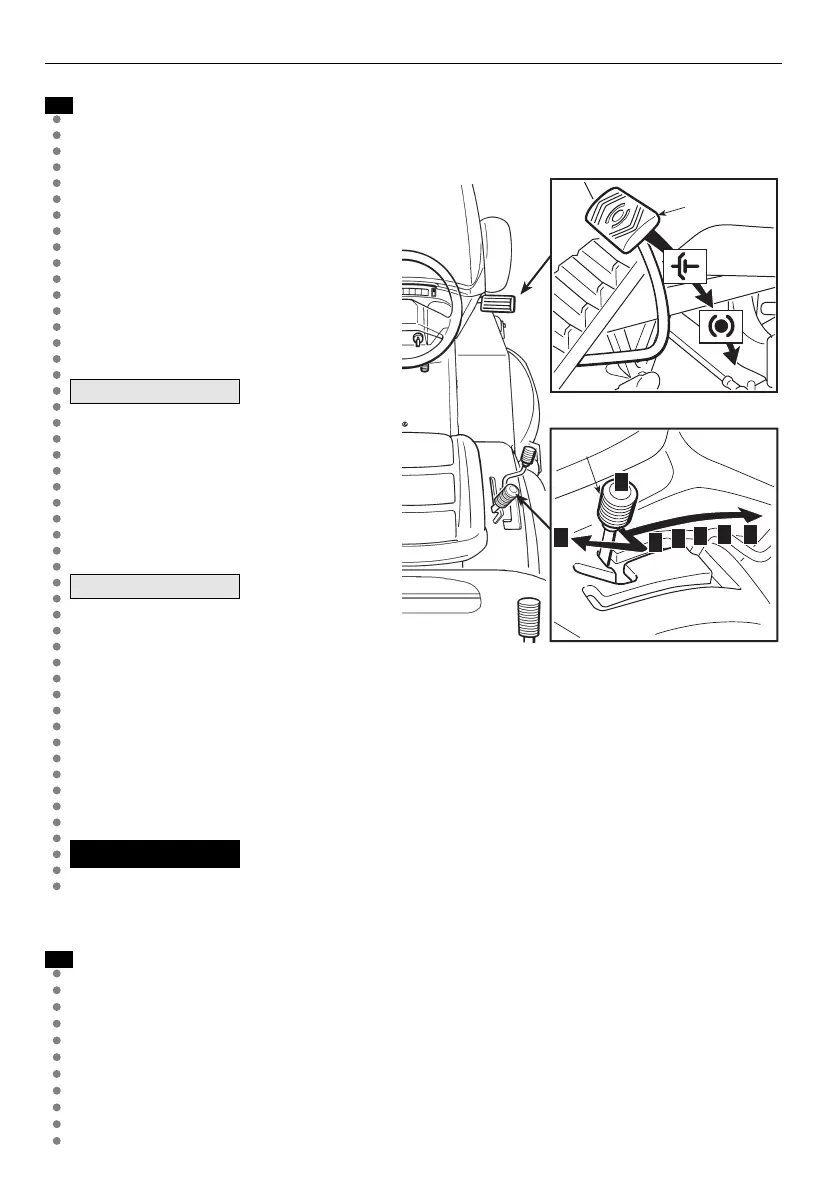

4.21 C
LUTCH / BRAKE PEDAL
This pedal has a double function -
during the first part of its travel it
acts as a clutch, engaging and
disengaging drive to the wheels,
and in the second part it acts as a
brake on the rear wheels
Do not main-
tain the pedal in half way of
clutch engagement or dis-enga-
gement; this can cause over-
heating and damage the trans-
mission belt.
When the
machine is in movement, keep
your foot off the pedal.
4.22 S
PEED CHANGE LEVER
This lever has seven positions for the 5 forward speeds, the neutral position
«N», and reverse «R». To go from one speed to another, press the pedal (4.21)
half way and move the lever as per the indications on the label.
Reverse must only be engaged when the machine is
stopped.
For hydrostatic drive models:
4.31 B
RAKE PEDAL
This pedal works the brake on the rear wheels.
4.32 D
RIVE ENGAGEMENT PEDAL
This pedal engages drive in the wheels as well as modulating the machine's
➤
!
WARNING!
NOTE
IMPORTANT
➤
