P1
IMPORTANT
• This instruction manual includes essential information on the safety measures to be implemented for installation and start-up. Therefore,
the installer and the user must read the instructions before starting installation and start-up.
• Keep this manual for future reference.
1.5L SKIMMER
The skimmer is a wall drain that conveys surface water the water to the filter pump. The 15L skimmer is a large-size basket option. Skimmers are
used to collect large debris (leaves, blades grass, insects, etc.) on the water surface.
The standard skimmer for general use.
The wide mouth skimmer extends the receiving area and increases the water collection.
Skimmers are generally installed with the mouth as near to the top edge of the pool as possible.
AVAILABLE MODELS
With brass inserts
Concrete pool
Code Vinyl pool
Code
Standard Skimmer
EM0130-SC
91600318
EM0130-SV
91600316
Wide Mouth Skimmer
EM0140-SC
91601313
EM0140-SV
91601014
Surface Skimmer
EM0180-SC
91601022
EM0180-SV
91601023
Without brass inserts
Concrete pool
Code Vinyl pool
Code
Standard Skimmer
/
/
EM0130TS-SV
91600320
Wide Mouth Skimmer
EM0140TS-SC
91601016
EM0140TS-SV
91601017
Surface Skimmer
EM0180TS-SC
91601024
EM0180TS-SV
91601025

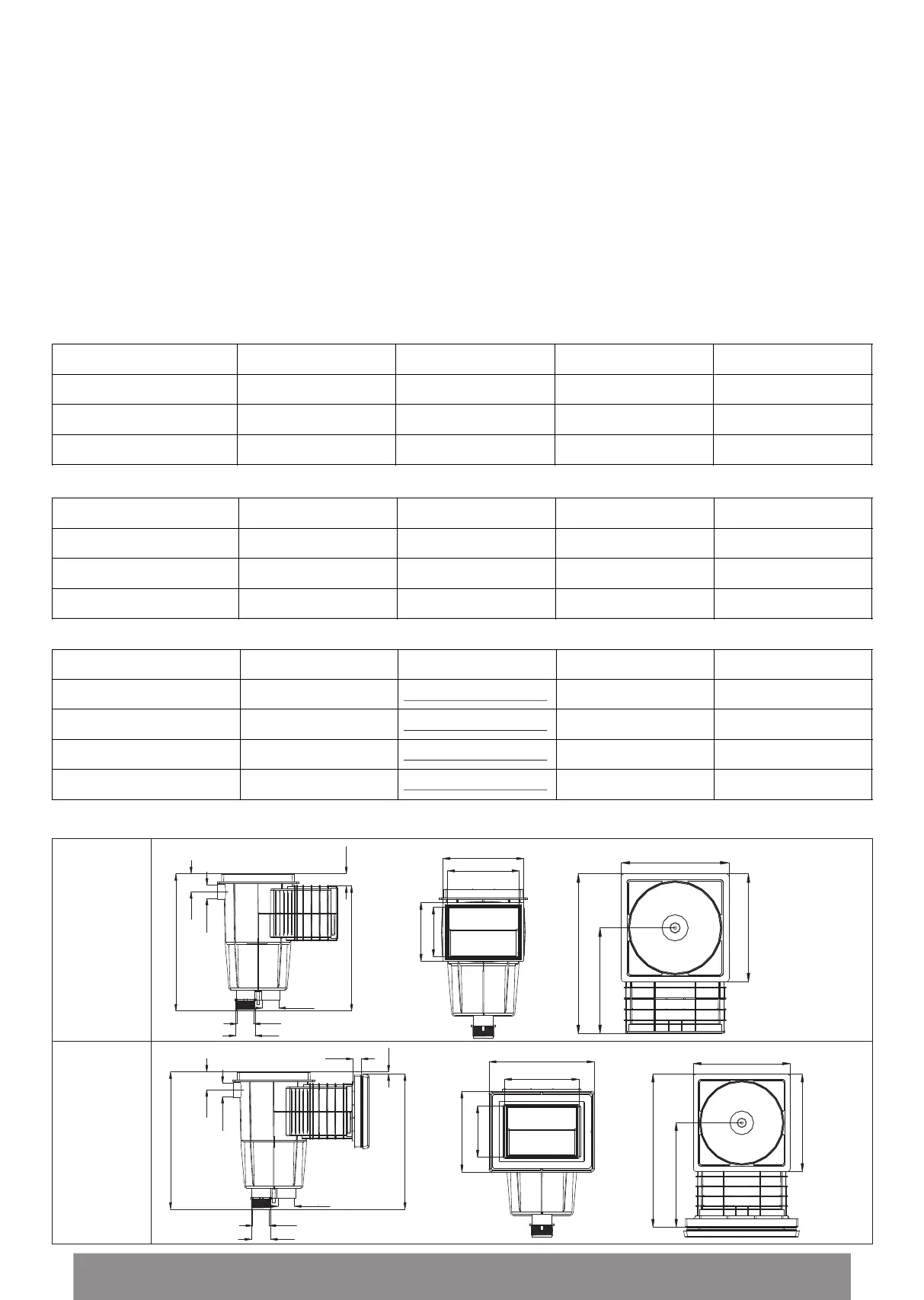

Specification
Model No.
Opening size, mm (inch) Basket Capacity, mm (inch)
Overall height, mm (inch)
Depth, mm (inch)
EM0130 -SC
200.3(7.9”) x199.6(7.9”)
ф160.0( 6.3”) x99.0 (3.9”)
416.3 ( 16.4”) 367.0 ( 14.5”)
EM0130 –SV/ EM0130TS –SV
210.0( 7.9”) X145.0( 5.7”) 390.0 ( 15.4”)
EM0140 series
370.8(14.6”) x154.2(6.1”) 553.0 ( 21.8”)
EM0180 series 600.0 (23.6”) x 67.2 (2.7”) 585.0 ( 23.0”)
EM0130-SC
EM0130-SV
EM0130TS-SV
Size
1.5"
2.0"
416.3mm(16.4”)
54.5
Φ40.0
37.1
379.2
Φ50.0
164.8
139.6
226.4
200.3
247.8mm(9.8”)
247.8
242.9
366.8mm(14.4”)
1.5"
2.0"
416.3mm(16.4”)
54.5
Φ40.0
409.8
Φ50.0
247.8
247.8
227.4
145.0
6.5
25.6
296.0mm(11.7”)
210.0
389.9mm(15.7”)
266.0
ф160.0( 6.3”) x99.0 (3.9”)
ф160.0( 6.3”) x99.0 (3.9”)
ф160.0( 6.3”) x99.0 (3.9”)
416.3 ( 16.4”)
416.3 ( 16.4”)
416.3 ( 16.4”)
