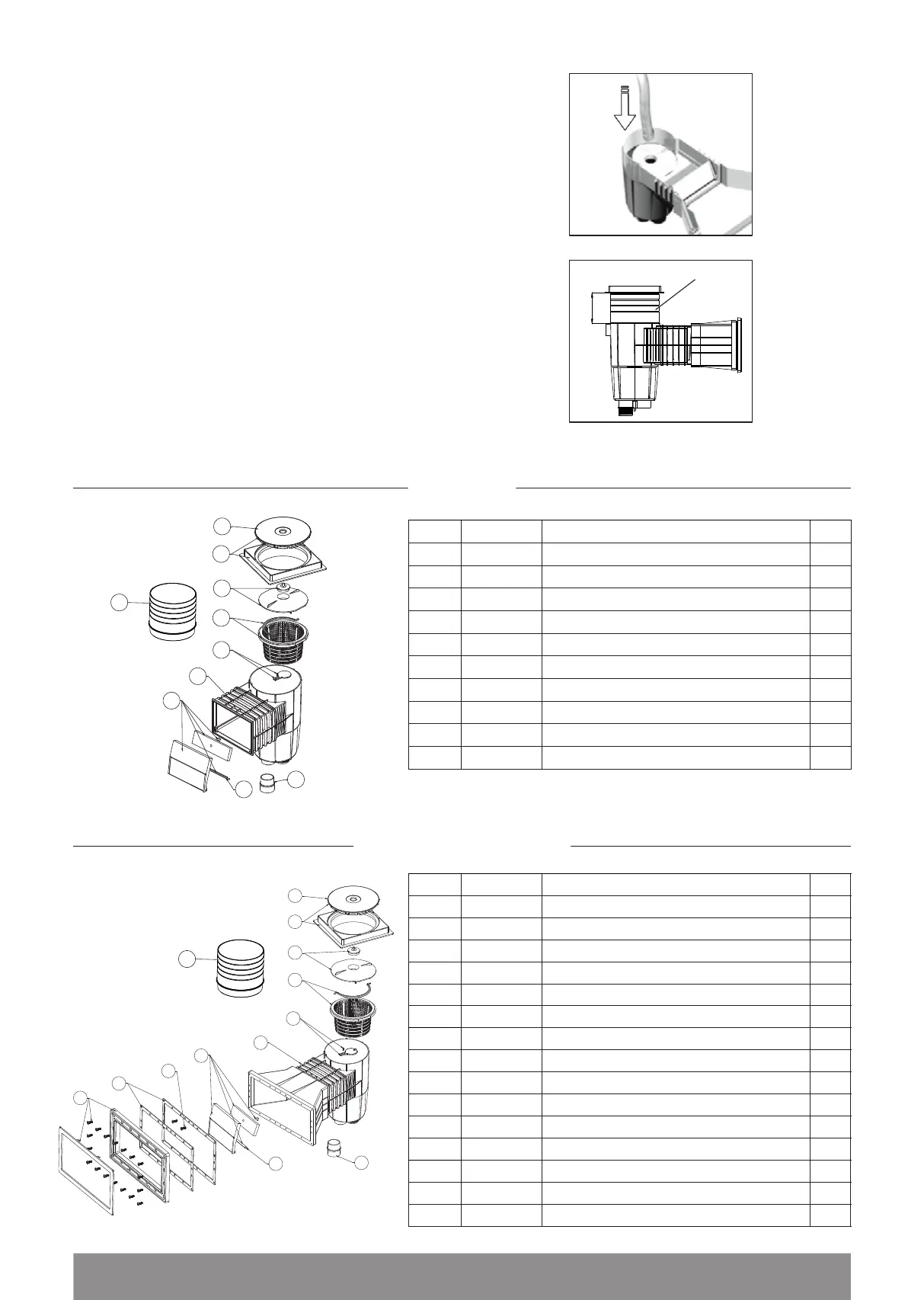

emaux EM0130 - Safety Warnings; Spare Parts List

P4
1
2
3
4
5
6
7
9
10
11
8
12
Key NO.
Part Number
Product Description
QTY
1
01050158
circular skimmer lid
1
2
89150701
square lid and lidframe
1
3
89150702
vacuuim plate with plug
1
4
89150703
skimmer basket
1
5
89150704
keyhole flap
1
6
E160305
EM0130-SV Skimmer body A+B
1
6
E160306
EM0130TS-SV Skimmer body A+B
1
7
89150713
flap retaining clip
1
8
01181077
hinge flap
1
9
03012105
round head Self-tapping screws
4
10
02021105
small skimmer gaskets for liner pool
2
11
89150705
small skimmer frame EM0130-SV
1
11
E160538
small skimmer frame EM0130TS-SV
1
12
01170009
1.5" Union Convertor (from Metric to Imperial)
1
13*
E160901
Extension Collar
1
EM0130-SV, EM0130TS-SV
VACUUM SUCTION CONNECTION
Place the vacuum plate on the basket of the skimmer, and attach the vacuum hose of
the pool cleaner to the hole of the vacuum plate (Fig7).
To obtain maximum vacuum efficiency, ensure that the main drain valve is closed. If
more than one skimmer is installed in the pool, it should be closed off using the flow
plug provided.
Fig.7
The skimmer should be installed by pool technician.
Do not place chlorine or bromine tablets in the skimmer basket.
It is recommended to use products specifically designed to work with ABS.
a
SAFETY WARNINGS
SPARE PARTS LIST
Key NO.
Part Number
Product Description
QTY
1
01050158
circular skimmer lid
1
2
89150701
square lid and lidframe
1
3
89150702
vacuuim plate with plug
1
4
89150703
skimmer basket
1
5
89150704
keyhole flap
1
6
01050167
skimmer booy
1
7
89150713
flap retaining clip
1
8
01181077
hinge flap
1
9
01170009
1.5" Union Convertor (from Metric to Imperial)
1
10*
E160901
Extension Collar
1
EM0130-SC
1
2
3
4
5
7
8
9
6
EXTENSION COLLAR
Extension Collar for EM0130, EM0140 and EM0180 (E160901) allows you to raise the
skimmer cover to be level with pool deck or patio. Contact Emaux distributor to
order the part.
Fig.8
Extension collar
10
13
150mm
