P3

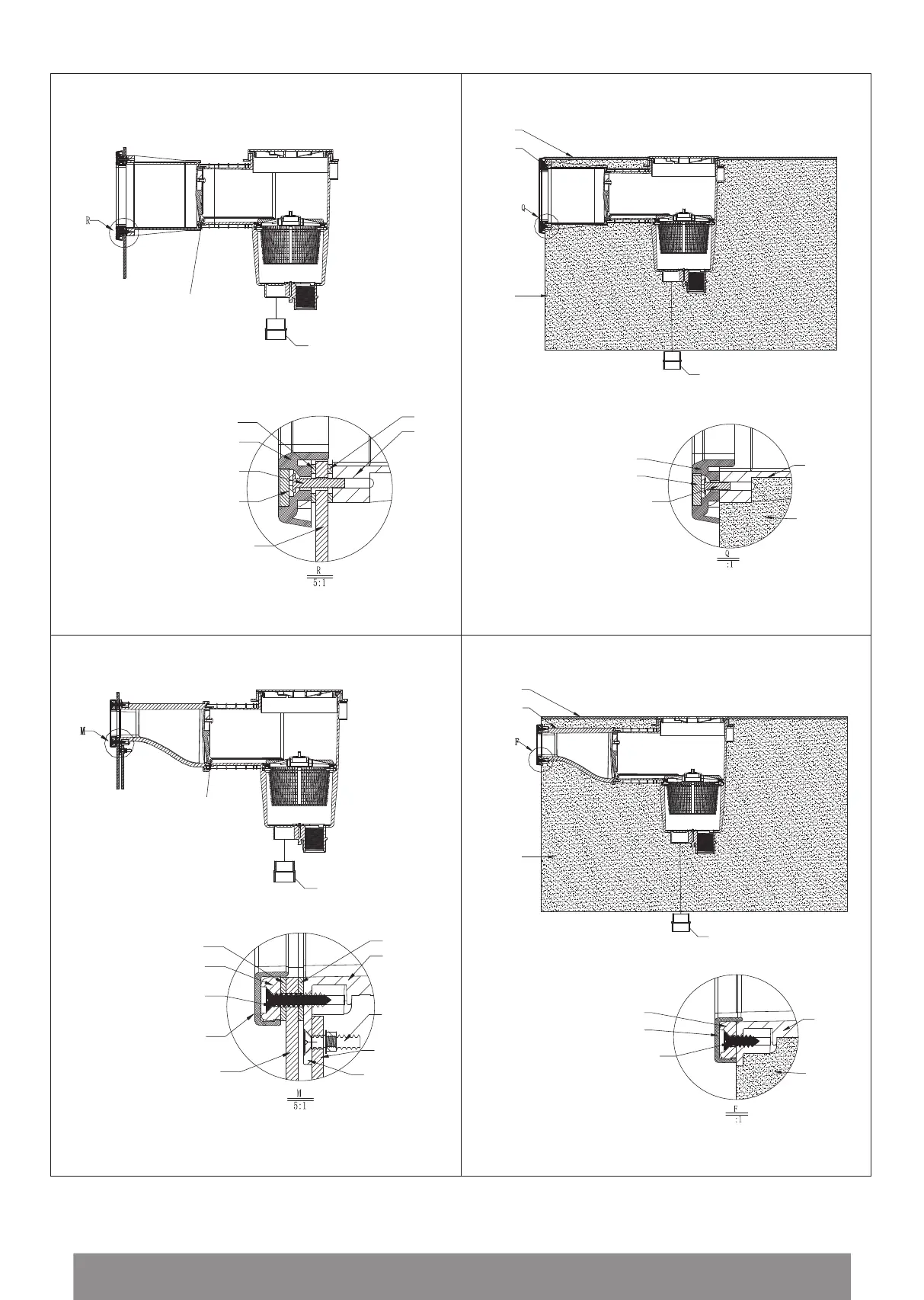

EM0180 SC, EM0180TS SC- - INSTALLATION IN A CONCRETE POOL
Cover
Face plate
EM0180-SC M6X25 Flat head
self-tapping screw
EM0180TS-SC M6.3X25 Flat head
self-tapping screw
Tile
Concrete
1.5" Union Convertor
(from Metric to Imperial)
Concrete
Concrete
5
Fig.6
B Body
EM0180 SV, EM0180TS SV- - INSTALLATION IN A VINYL POOL
1.5" Union Convertor
(from Metric to Imperial)
Gasket
Gasket
Cover
Face plate
EM0180-SV M6X25 Flat head
self-tapping screw
EM0180TS-SV M6.3X25 Flat head
self-tapping screw
Vinyl pool wall
Fig.5
B Body
B Body
M6X25 Flat head
screw included
nut and washer
Only for vinyl pool
The valve only operates in the inside
direction and cannot operate in the
opposite direction.
EM0140 SC, EM0140TS SC - - INSTALLATION IN A CONCRETE POOL
Cover
Face plate
EM0140-SC M6X25 Flat head
self-tapping screw
EM0140TS-SC M6.3X25 Flat head
self-tapping screw
Tile
Concrete
1.5" Union Convertor
(from Metric to Imperial)
Concrete
Concrete
5
Fig.4
B Body
EM0140-SV, EM0140TS SV - INSTALLATION IN A VINYL POOL
1.5" Union Convertor
(from Metric to Imperial)
Gasket
Gasket
Cover
Face plate
Vinyl pool wall
Fig.3
B Body
The valve only operates in the inside
direction and cannot operate in the
opposite direction.
EM0140-SV M6X25 Flat head
self-tapping screw
EM0140TS-SV M6.3X25 Flat head
self-tapping screw
