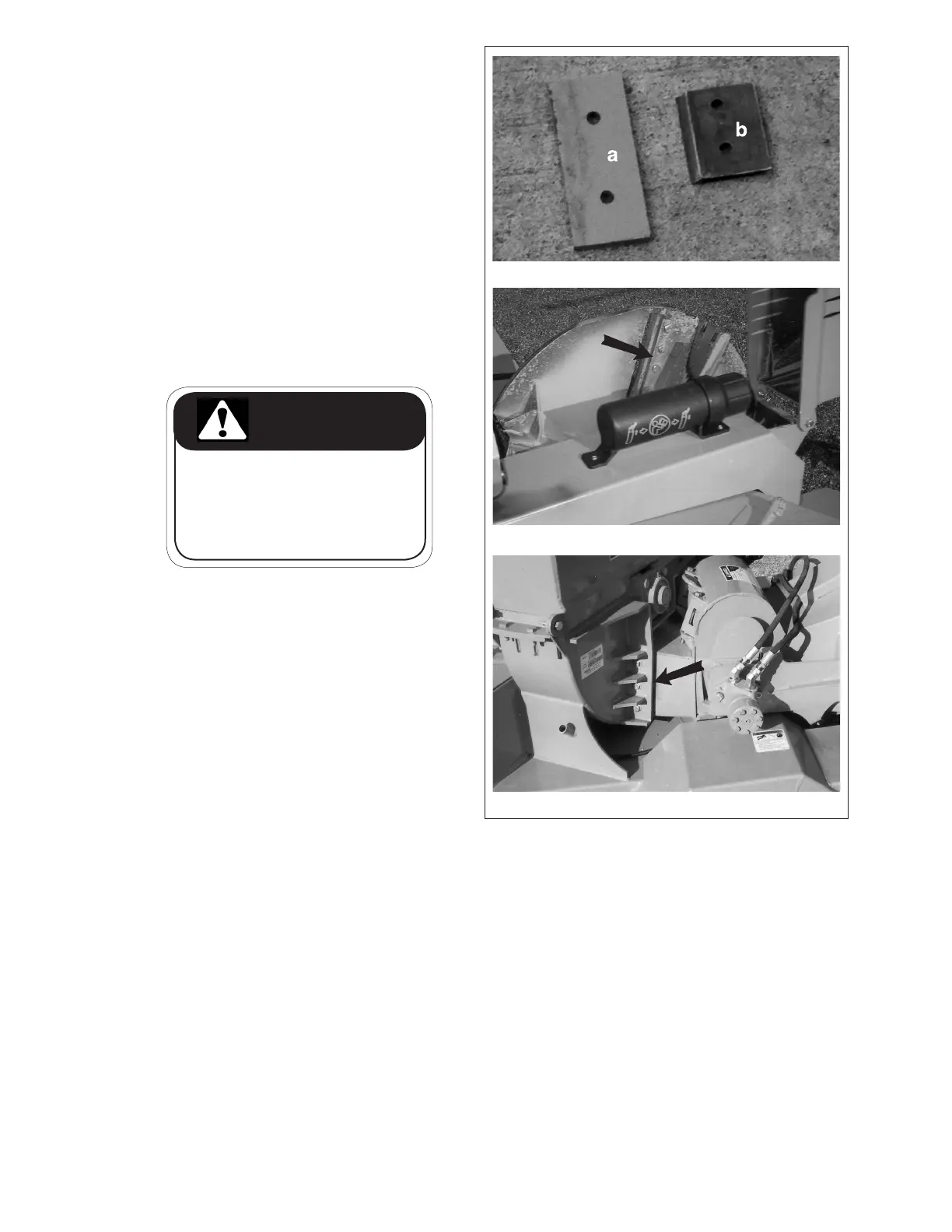

Fig. 21 BLADES
a. Rotor b. Stationary
Rotor
Stationary
9. Blades:
There are 2 types of blades used on the Wood
Chipper. They work together to cut, shear
and shred the wood as it moves through the
machine.
a. Rotor blades:
The rotor is equipped with 2 blades
placed at 180° to each other to keep
the rotor in balance. If one needs to be
changed, both should be changed.
b. Stationary blade:
Each machine is equipped with a station-
ary blade that acts as a stop for the mov-
ing rotor blades.
WARNING
Machine is shown with guard
removed or rotor cover opened
for illustrative purposes
only. Do not operate machine
with guard removed or cover
