44
19. Panic Bar:
The feed table is designed with a "Panic
Bar" on the end of the feed hopper intake.
It is designed to stop the feed rollers
should an operator be pulled into the hop-
per.
The feed table is designed with a latch in
the center of the frame. Release the latch
when raising or lowering the gate.
Push on the "Panic Bar" to stop the feed
rollers. Move the latch toward the roller to
reset the "Panic Bar" and start the roller.

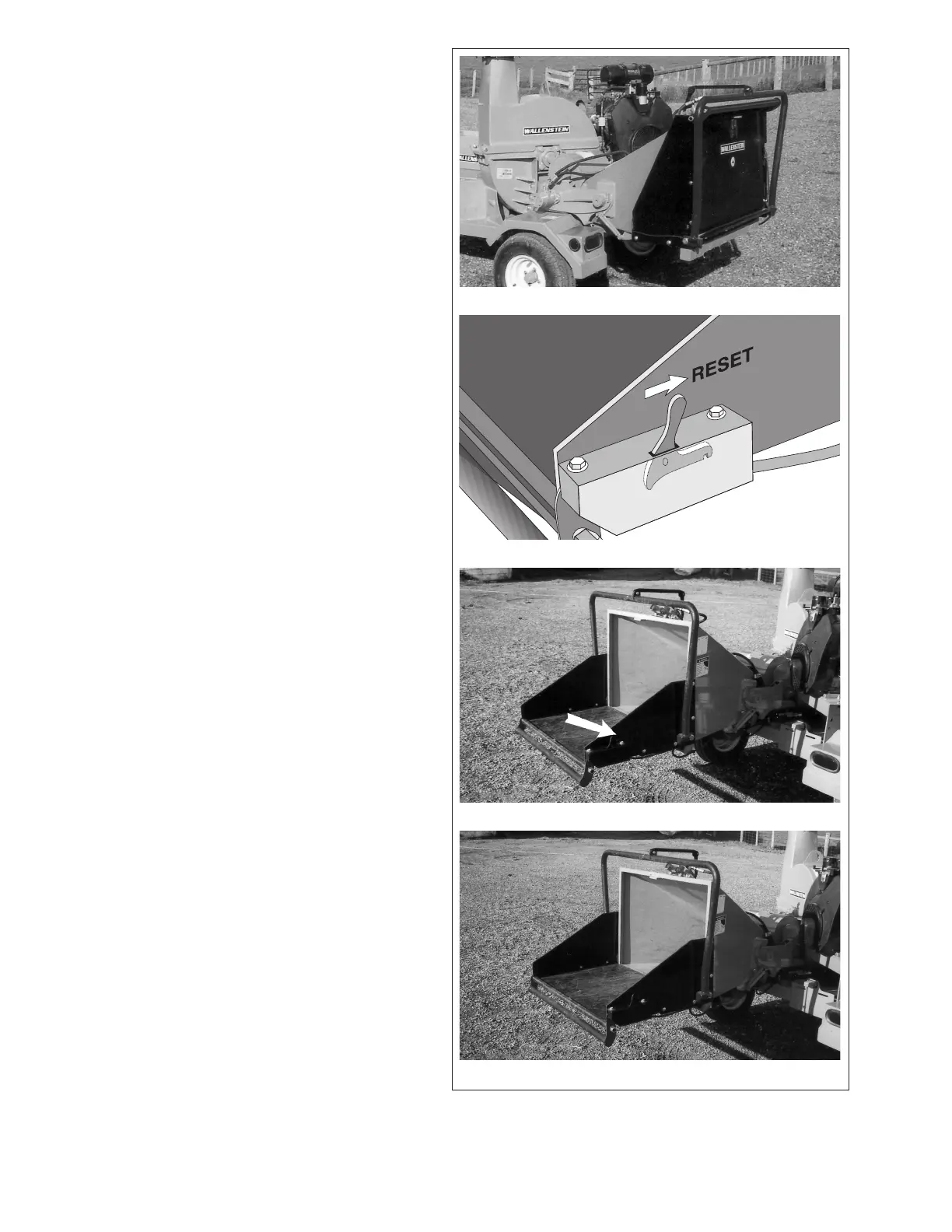

Fig. 31 PANIC BAR
Up
On
Off
Trigger
