AIRPLANE
OPERATIONS
MANUAL
LOADING
REVISION 38
1-07-70
Page
3
Code
02
AOM-145/1114
EM145AOM071033A.DGN
AB C D

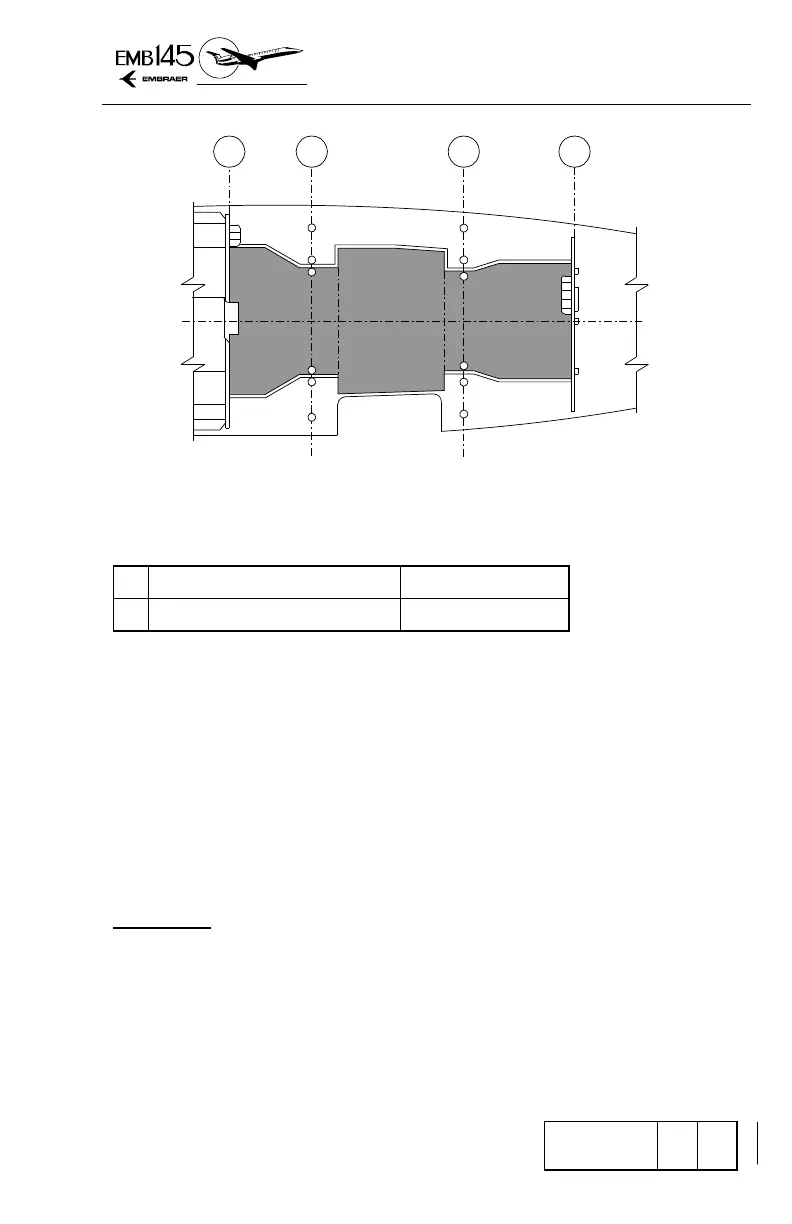

Forward and Aft Division Position – m (in)
A Forward Division Position
20.97 (825.59)
B Aft Division Position
24.31 (957.09)
Compartment Limits for airplanes equipped with Cart Stowage Unit:
Baggage Compartment Available Volume ....................8.6 m
3
(304 cu.ft)
Maximum Floor Distributed Load............................390 kg/m
2
(80 lb/ft2)
Baggage Compartment Capacity .............................. 1000 kg (2205 lb)
Baggage Compartment Balance Arm........................ 22.85 m (900 in)
Cart Stowage Unit Capacity ........................................ 120 kg (265 lb)
Cart Stowage Unit Balance Arm................................ 21.40 m (843 in)
Maximum Load on the Top of Cart Stowage Unit ......... 14 kg (30 lb)
CAUTION:
x THE CART STOWAGE UNIT MUST BE LOADED
WHEN OPERATING THE AIRPLANE WITH
BAGGAGE OR CARGO ON THE BAGGAGE
COMPARTMENT.
x BAGGAGE COMPARTMENT PARTITION DOOR
MUST BE CLOSED FOR FLIGHT. ANY DAMAGE
TO THE DOOR OR DOOR FRAME SHALL BE
COMMUNICATED TO THE FLIGHT CREW BEFORE
DISPATCH.
